Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

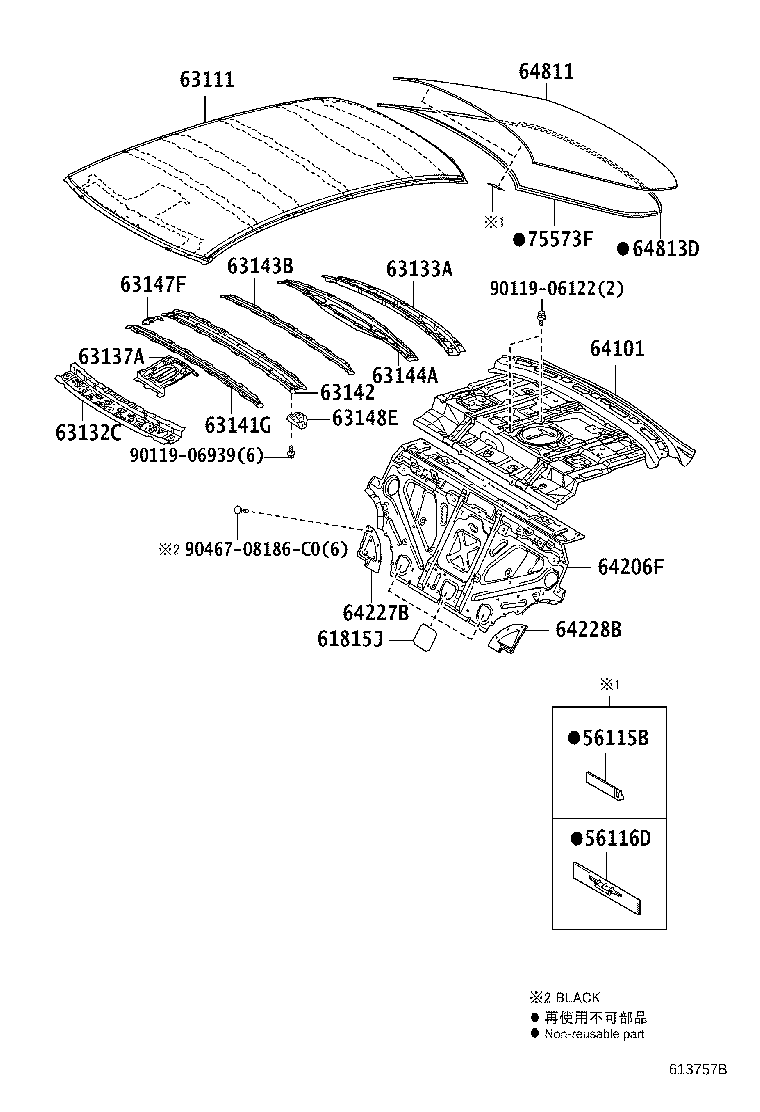

Exploded illustration 613757B 56115B — STOPPER, BACK WINDOW GLASS, NO.1 (1 parts) 56116D — STOPPER, BACK WINDOW GLASS, NO.2 (1 parts) 61815J — COVER, ROOF SIDE, INNER UPPER (1 parts) 63111 — PANEL, ROOF (1 parts) 63132C — PANEL, WINDSHIELD HEADER, INNER (1 parts) 63133A — FRAME, BACK WINDOW, UPPER (1 parts) 63137A — BRACKET, DOME LAMP, NO.1 (1 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (1 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (1 parts) 63147F — BRACKET, ROOF PANEL REINFORCEMENT, RH (1 parts) 63148E — BRACKET, ROOF PANEL REINFORCEMENT, LH (1 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (1 parts) 64206F — PANEL SUB-ASSY, ROOM PARTITION (1 parts) 64227B — EXTENSION, CENTER FLOOR TO BLACE, NO.1 (1 parts) 64228B — EXTENSION, CENTER FLOOR TO BRACE, NO.2 (1 parts) 64811 — GLASS, BACK WINDOW (2 parts) 64813D — DAM, BACK WINDOW GLASS ADHESIVE (1 parts) 75573F — MOULDING, BACK WINDOW, OUTSIDE (1 parts) 9011906122 — not listed in this catalogue 9046708186C0 — not listed in this catalogue 9011906939 — not listed in this catalogue
613757B · 20 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
56115B — Stopper, Back Window Glass, NO.1
56115-30110 Stopper, Back Window Glass, NO.1
2010-09 → 2012-12 ended
GRS202 —
56116D — Stopper, Back Window Glass, NO.2
56116-22050 Stopper, Back Window Glass, NO.2
2010-09 → 2012-12 ended
GRS202 —
61815J — Cover, Roof Side, Inner Upper
61815-30120 Cover, Roof Side, Inner Upper
2010-09 → 2012-12 ended
GRS202 —
63111 — Panel, Roof
63111-30690 Panel, Roof
2010-09 → 2012-12 ended
GRS202 —
63132C — Panel, Windshield Header, Inner
63132-30310 Panel, Windshield Header, Inner
2010-09 → 2012-12 ended
GRS202 —
63133A — Frame, Back Window, Upper
63133-30290 Frame, Back Window, Upper
2010-09 → 2012-12 ended
GRS202 —
63137A — Bracket, Dome Lamp, NO.1
63137-30250 Bracket, Dome Lamp, NO.1
2010-09 → 2012-12 ended
GRS202 —
63141G — Reinforcement, Roof Panel, NO.1
63143-30270 Reinforcement, Roof Panel, NO.1
2010-09 → 2012-12 ended
GRS202 —
63142 — Reinforcement, Roof Panel, NO.2
63141-30220 Reinforcement, Roof Panel, NO.2
2010-09 → 2012-12 ended
GRS202 —
63143B — Reinforcement, Roof Panel, NO.3
63144-30200 Reinforcement, Roof Panel, NO.3
2010-09 → 2012-12 ended
GRS202 —
63144A — Reinforcement, Roof Panel, NO.4
63128-30060 Reinforcement, Roof Panel, NO.4
2010-09 → 2012-12 ended
GRS202 —
63147F — Bracket, Roof Panel Reinforcement, RH
63146-30120 Bracket, Roof Panel Reinforcement, RH
2010-09 → 2012-12 ended
GRS202 —
63148E — Bracket, Roof Panel Reinforcement, LH
63147-30050 Bracket, Roof Panel Reinforcement, LH
2010-09 → 2012-12 ended
GRS202 —
64101 — Panel Sub-assy, Upper Back
64101-30880 Panel Sub-assy, Upper Back
2010-09 → 2012-12 ended
GRS202 —
64206F — Panel Sub-assy, Room Partition
64206-30090 Panel Sub-assy, Room Partition
2010-09 → 2012-12 ended
GRS202 —
64227B — Extension, Center Floor TO Blace, NO.1
64227-30140 Extension, Center Floor TO Blace, NO.1
2010-09 → 2012-12 ended
GRS202 —
64228B — Extension, Center Floor TO Brace, NO.2
64228-30120 Extension, Center Floor TO Brace, NO.2
2010-09 → 2012-12 ended
GRS202 —
64811 — Glass, Back Window
64801-30921 note Glass, Back Window
2010-09 → 2012-12 ended
GRS202 —
64801-30922 note Glass, Back Window
2010-09 → 2012-12 ended
GRS202 —
64813D — Dam, Back Window Glass Adhesive
64813-30220 Dam, Back Window Glass Adhesive
2010-09 → 2012-12 ended
GRS202 —
75573F — Moulding, Back Window, Outside
75573-30381 Moulding, Back Window, Outside
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
