Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

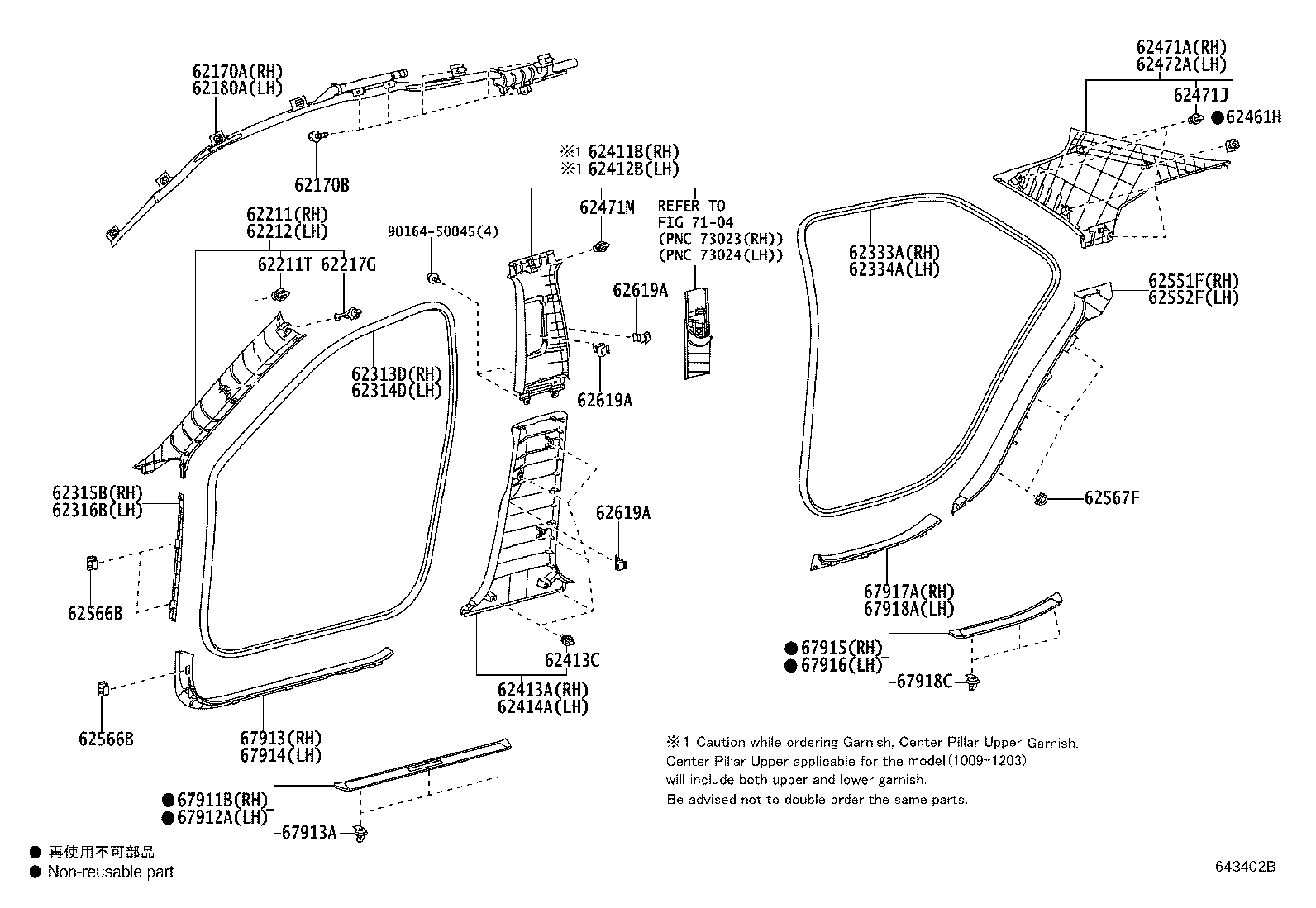

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-30110 |
Airbag Assy, Curtain Shield, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62170B — Bolt, W/Washer | ||||
| 90119-06869 |
Bolt, W/Washer
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-30110 |
Airbag Assy, Curtain Shield, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62211-30510-A1 note |
Garnish, Front Pillar, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62211-30510-B1 note |
Garnish, Front Pillar, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62211T — Clip(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
Clip(FOR FRONT PILLAR GARNISH)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62212-30520-A1 note |
Garnish, Front Pillar, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62212-30520-B1 note |
Garnish, Front Pillar, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-33031 |
Clip, Front Pillar Garnish
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62313D — Trim, Front Door Opening, RH | ||||
| 62313-30270 |
Trim, Front Door Opening, RH
2010-09 → 2011-10
ended
|
GRS202 | — | |
| 62313-30271 |
Trim, Front Door Opening, RH
2011-11 → 2012-12
ended
|
GRS202 | — | |
| 62314D — Trim, Front Door Opening, LH | ||||
| 62314-30190 |
Trim, Front Door Opening, LH
2010-09 → 2011-10
ended
|
GRS202 | — | |
| 62314-30191 |
Trim, Front Door Opening, LH
2011-11 → 2012-12
ended
|
GRS202 | — | |
| 62315B — Cover, Front Door Opening Trim, RH | ||||
| 62315-30110-A0 note |
Cover, Front Door Opening Trim, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62315-30110-B0 note |
Cover, Front Door Opening Trim, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62316B — Cover, Front Door Opening Trim, LH | ||||
| 62316-30100-A0 note |
Cover, Front Door Opening Trim, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62316-30100-B0 note |
Cover, Front Door Opening Trim, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62333A — Trim, Rear Door Opening, RH | ||||
| 62333-30240 |
Trim, Rear Door Opening, RH
2010-09 → 2011-10
ended
|
GRS202 | — | |
| 62333-30241 |
Trim, Rear Door Opening, RH
2011-11 → 2012-12
ended
|
GRS202 | — | |
| 62334A — Trim, Rear Door Opening, LH | ||||
| 62334-30180 |
Trim, Rear Door Opening, LH
2010-09 → 2011-10
ended
|
GRS202 | — | |
| 62334-30181 |
Trim, Rear Door Opening, LH
2011-11 → 2012-12
ended
|
GRS202 | — | |
| 62411B — Garnish, Center Pillar, Upper RH | ||||
| 62411-30440-A0 note |
Garnish, Center Pillar, Upper RH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62411-30440-B0 note |
Garnish, Center Pillar, Upper RH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62411-30441-A0 note |
Garnish, Center Pillar, Upper RH
2012-04 → 2012-12
ended
|
GRS202 | — | |
| 62412B — Garnish, Center Pillar, Upper LH | ||||
| 62412-30440-A0 note |
Garnish, Center Pillar, Upper LH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62412-30440-B0 note |
Garnish, Center Pillar, Upper LH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62412-30441-A0 note |
Garnish, Center Pillar, Upper LH
2012-04 → 2012-12
ended
|
GRS202 | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-30230-A0 note |
Garnish, Center Pillar, Lower RH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62413-30230-B0 note |
Garnish, Center Pillar, Lower RH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62413-30231-A0 note |
Garnish, Center Pillar, Lower RH
2012-04 → 2012-12
ended
|
GRS202 | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
Clip (FOR CENTER LOWER GARNISH)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-30160-A0 note |
Garnish, Center Pillar, Lower LH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62414-30160-B0 note |
Garnish, Center Pillar, Lower LH
2010-09 → 2012-03
ended
|
GRS202 | — | |
| 62414-30161-A0 note |
Garnish, Center Pillar, Lower LH
2012-04 → 2012-12
ended
|
GRS202 | — | |
| 62461H — Clip (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-11089-A0 note |
Clip (FOR ROOF SIDE INNER GARNISH)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62471A — Garnish, Roof Side, Inner RH | ||||
| 62471-30520-A1 note |
Garnish, Roof Side, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62471-30520-B1 note |
Garnish, Roof Side, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62471J — Clip (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 |
Clip (FOR ROOF SIDE GARNISH)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62471M — Clip | ||||
| 90467-10167 |
Clip
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62472A — Garnish, Roof Side, Inner LH | ||||
| 62472-30490-A1 note |
Garnish, Roof Side, Inner LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62472-30490-B1 note |
Garnish, Roof Side, Inner LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-30290-A0 note |
Garnish, Rear Seat Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62551-30290-B0 note |
Garnish, Rear Seat Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-30270-A0 note |
Garnish, Rear Seat Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62552-30270-B0 note |
Garnish, Rear Seat Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62566B — Clamp, Rocker Panel Inner Protecter, NO.1 | ||||
| 62566-30010 |
Clamp, Rocker Panel Inner Protecter, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62567F — Clamp, Rocker Panel Inner Protector, NO.2 | ||||
| 62566-30010 |
Clamp, Rocker Panel Inner Protector, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62619A — Plate, Side Trim Set | ||||
| 62619-30030 |
Plate, Side Trim Set
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67911B — Plate, Front Door Scuff, Outside, RH | ||||
| 67911-30220 |
Plate, Front Door Scuff, Outside, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67912A — Plate, Front Door Scuff, Outside LH | ||||
| 67912-30230 |
Plate, Front Door Scuff, Outside LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67913 — Plate, Front Door Scuff, RH | ||||
| 67913-30281-A0 note |
Plate, Front Door Scuff, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67913A — Clip(FOR SCUFF PLATE) | ||||
| 90467-09212 |
Clip(FOR SCUFF PLATE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67914 — Plate, Front Door Scuff, LH | ||||
| 67914-30280-A0 note |
Plate, Front Door Scuff, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67914-30280-B0 note |
Plate, Front Door Scuff, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67915 — Plate, Rear Door Scuff, Outside RH | ||||
| 67915-30130 |
Plate, Rear Door Scuff, Outside RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67916 — Plate, Rear Door Scuff, Outside LH | ||||
| 67916-30140 |
Plate, Rear Door Scuff, Outside LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-30230-A0 note |
Plate, Rear Door Scuff, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67917-30230-B0 note |
Plate, Rear Door Scuff, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-30210-A0 note |
Plate, Rear Door Scuff, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67918-30210-B0 note |
Plate, Rear Door Scuff, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67918C — Clip(FOR REAR SCUFF PLATE) | ||||
| 90467-09212 |
Clip(FOR REAR SCUFF PLATE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
