Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 676578B 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (7 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (7 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (1 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (1 parts) 69250B — COVER ASSY, DOOR OUTSIDE HANDLE (7 parts) 69250D — COVER ASSY, DOOR OUTSIDE HANDLE, LH (7 parts) 69293L — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 9014850003 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 69415B — COVER, DOOR LOCK STRIKER, FRONT (1 parts) 9014880066 — not listed in this catalogue 6929630010 — not listed in this catalogue 6923730010 — not listed in this catalogue 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (2 parts) 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (1 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (2 parts) 69283 — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (2 parts) 69284C — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (2 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (1 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (1 parts) 69318C — SEAL, DOOR LOCK WIRING HARNESS (1 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (1 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (1 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (1 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (1 parts) 9011906817 — not listed in this catalogue 9014860083 — not listed in this catalogue 9015950083 — not listed in this catalogue 9018905003 — not listed in this catalogue

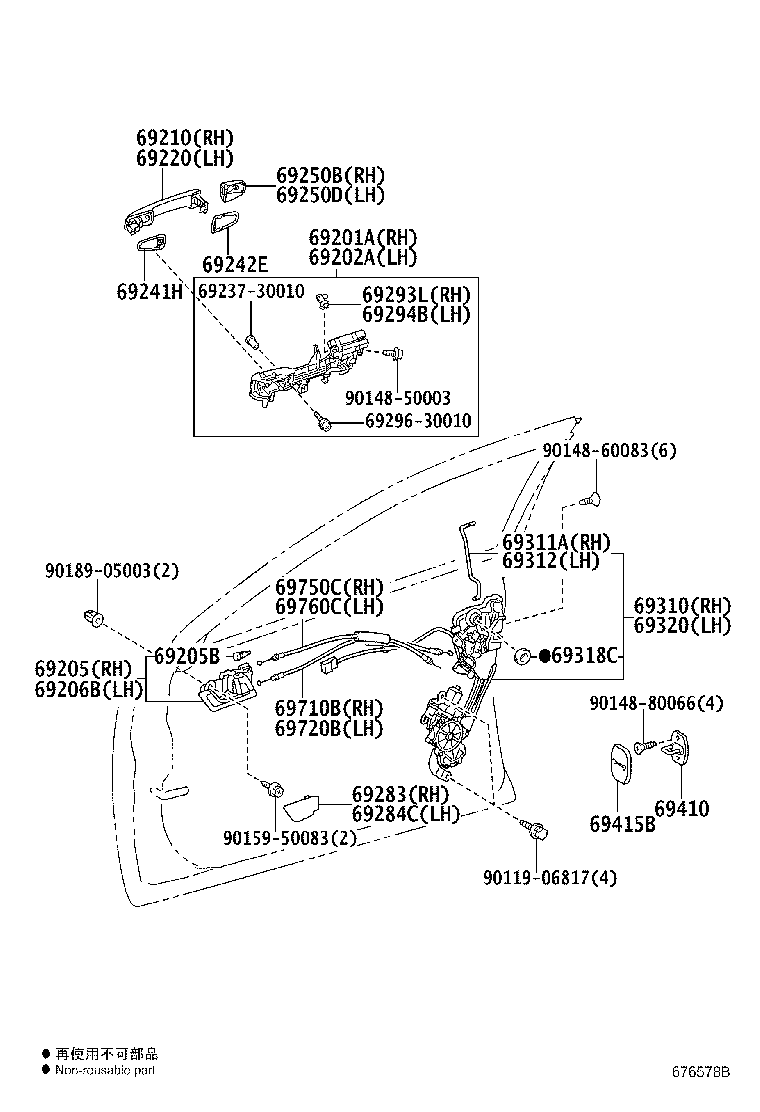

676578B · 26 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-30071 Frame Sub-assy, Front Door Outside Handle, RH
2010-09 → 2012-12 ended
GRS202 —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-30061 Frame Sub-assy, Front Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-30200-A0 note Handle Sub-assy, Front Door Inside, RH
2010-09 → 2012-12 ended
GRS202 —
69205-30200-B0 note Handle Sub-assy, Front Door Inside, RH
2010-09 → 2012-12 ended
GRS202 —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2010-09 → 2012-12 ended
GRS202 —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-30200-A0 note Handle Sub-assy, Front Door Inside, LH
2010-09 → 2012-12 ended
GRS202 —
69206-30200-B0 note Handle Sub-assy, Front Door Inside, LH
2010-09 → 2012-12 ended
GRS202 —
69210 — Handle Assy, Front Door, Outside RH
69210-30320-A1 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-B0 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-B1 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-C0 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-D0 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-F1 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-J0 note Handle Assy, Front Door, Outside RH
2010-09 → 2012-12 ended
GRS202 —
69220 — Handle Assy, Front Door Outside, LH
69210-30320-A1 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-B0 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-B1 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-C0 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-D0 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-F1 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69210-30320-J0 note Handle Assy, Front Door Outside, LH
2010-09 → 2012-12 ended
GRS202 —
69241H — Pad, Front Door Outside Handle, Front
69241-30110 Pad, Front Door Outside Handle, Front
2010-09 → 2012-12 ended
GRS202 —
69242E — Pad, Front Door Outside Handle, Rear
69242-30090 Pad, Front Door Outside Handle, Rear
2010-09 → 2012-12 ended
GRS202 —
69250B — Cover Assy, Door Outside Handle
69250-30030-A1 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-B0 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-B1 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-C0 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-D0 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-F1 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250-30030-J0 note Cover Assy, Door Outside Handle
2010-09 → 2012-12 ended
GRS202 —
69250D — Cover Assy, Door Outside Handle, LH
69250-30040-A1 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-B0 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-B1 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-C0 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-D0 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-F1 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69250-30040-J0 note Cover Assy, Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-20020-A0 note Plug, Front Door Inside Handle Bezel, RH
2010-09 → 2012-12 ended
GRS202 —
69283-20020-B1 note Plug, Front Door Inside Handle Bezel, RH
2010-09 → 2012-12 ended
GRS202 —
69284C — Plug, Front Door Inside Handle Bezel, LH
69284-20010-A0 note Plug, Front Door Inside Handle Bezel, LH
2010-09 → 2012-12 ended
GRS202 —
69284-20010-B1 note Plug, Front Door Inside Handle Bezel, LH
2010-09 → 2012-12 ended
GRS202 —
69293L — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2010-09 → 2012-12 ended
GRS202 —
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2010-09 → 2012-12 ended
GRS202 —
69310 — Lock Assy, Front Door, RH
69030-30A60 Lock Assy, Front Door, RH
2010-09 → 2012-12 ended
GRS202 —
69311A — Rod, Front Door Lock Open, RH
69311-30140 Rod, Front Door Lock Open, RH
2010-09 → 2012-12 ended
GRS202 —
69312 — Rod, Front Door Lock Open, LH
69312-30140 Rod, Front Door Lock Open, LH
2010-09 → 2012-12 ended
GRS202 —
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2010-09 → 2012-12 ended
GRS202 —
69320 — Lock Assy, Front Door, LH
69040-30A70 Lock Assy, Front Door, LH
2010-09 → 2012-12 ended
GRS202 —
69410 — Plate Assy, Front Door Lock Striker
69410-33030 Plate Assy, Front Door Lock Striker
2010-09 → 2012-12 ended
GRS202 —
69415B — Cover, Door Lock Striker, Front
69415-33010 Cover, Door Lock Striker, Front
2010-09 → 2012-12 ended
GRS202 —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-30210 Cable Assy, Front Door Lock Remote Control, RH
2010-09 → 2012-12 ended
GRS202 —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-30210 Cable Assy, Front Door Lock Remote Control, LH
2010-09 → 2012-12 ended
GRS202 —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-30170 Cable Assy, Front Door Inside Locking, RH
2010-09 → 2012-12 ended
GRS202 —
69760C — Cable Assy, Front Door Inside Locking LH
69750-30170 Cable Assy, Front Door Inside Locking LH
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
