Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

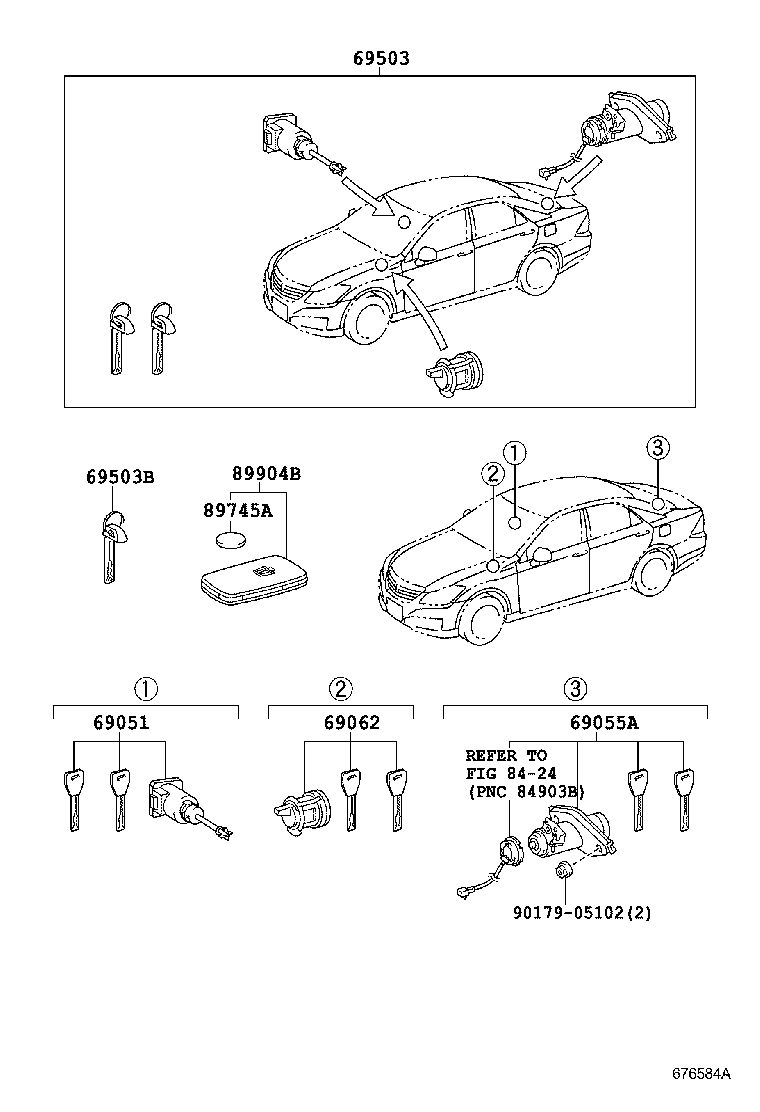

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-30370 |
Cylinder & Key Set, Door Lock, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 69055A — Cylinder & Key Set, Luggage Compartment Lock | ||||
| 69055-30460 |
Cylinder & Key Set, Luggage Compartment Lock
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 69062 — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-30270 |
Cylinder & Key Set, Glove Compartment Lock
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-30G90 |
Cylinder Set, Lock
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 69503B — Key, Cut | ||||
| 69515-30341 note |
Key, Cut
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-52020 |
Battery, Transmitter
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-30480 |
Transmitter Sub-assy, Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89904-30700 note |
Transmitter Sub-assy, Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
