Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01

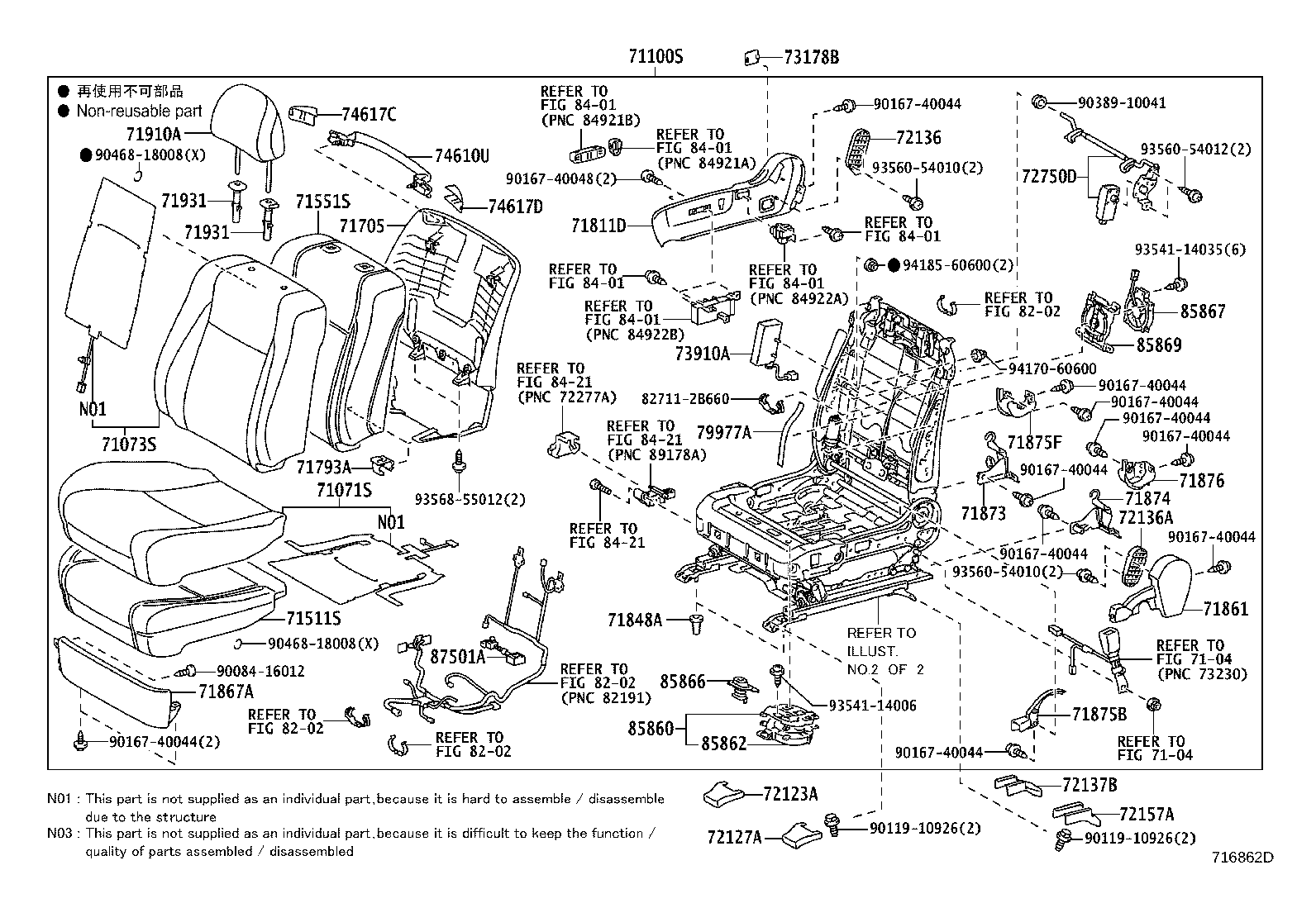

Exploded illustration 716862D 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (1 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (2 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (2 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (2 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (2 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (1 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 85867 — BLOWER, SEATBACK CLIMATE CONTROL, RH (1 parts) 85869 — COVER, SEATBACK CLIMATE CONTROL, RH (1 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (2 parts) 72137B — COVER, SEAT TRACK, RH (2 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (2 parts) 9011910926 — not listed in this catalogue 9011910926 — not listed in this catalogue 9016740044 — not listed in this catalogue 71100S — SEAT ASSY, FRONT RH (2 parts) 73178B — CAP, SEAT BELT ANCHOR COVER (2 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9354114006 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (2 parts) 85860 — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL (1 parts) 85866 — DUCT, SEAT CUSHION CLIMATE CONTROL, RH (1 parts) 85862 — BLOWER, SEAT CLIMATE CONTROL, RH (1 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 9016740044 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (2 parts) 72136A — SPACER, SEAT TRACK, LOWER NO.2 (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 74617D — PLUG, ASSIST GRIP (2 parts) 72136 — SPACER, SEAT TRACK, LOWER NO.1 (1 parts) 74617C — PLUG, ASSIST GRIP (2 parts) 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (1 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 9016740048 — not listed in this catalogue 71848A — CAP, SEAT ADJUSTER COVER, RH (1 parts) 9008416012 — not listed in this catalogue 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 79977A — FELT, SEATBACK (1 parts) 9418560600 — not listed in this catalogue 9417060600 — not listed in this catalogue 9356855012 — not listed in this catalogue 827112B660 — not listed in this catalogue 9356054010 — not listed in this catalogue 9356054010 — not listed in this catalogue 9354114035 — not listed in this catalogue 8421 — not listed in this catalogue 9046818008 — not listed in this catalogue 9046818008 — not listed in this catalogue 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 74610U — GRIP ASSY, ASSIST (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8421 — not listed in this catalogue 8421 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 71793A — CLIP, FRONT SEATBACK POCKET (1 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (1 parts) 9038910041 — not listed in this catalogue 9356054012 — not listed in this catalogue
716862D · 38 callouts, 41 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-30C40-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-09 → 2010-12 ended
GRS202 —
71071-30C40-A3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-12 → 2012-12 ended
GRS202 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-30C10-A3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-09 → 2010-12 ended
GRS202 —
71073-30C10-A5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-12 → 2012-12 ended
GRS202 —
71100S — Seat Assy, Front RH
71100-30J61-A4 note Seat Assy, Front RH
2010-09 → 2010-12 ended
GRS202 —
71100-30J61-A6 note Seat Assy, Front RH
2010-12 → 2012-12 ended
GRS202 —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-30A90 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-30B00 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71705 — Board Sub-assy, Front Seatback, RH
71705-30820-A1 note Board Sub-assy, Front Seatback, RH
2010-09 → 2012-12 ended
GRS202 —
71793A — Clip, Front Seatback Pocket
71793-58010 Clip, Front Seatback Pocket
2010-09 → 2012-12 ended
GRS202 —
71811D — Shield, Front Seat Cushion, RH
71811-30450-A1 note Shield, Front Seat Cushion, RH
2010-09 → 2012-12 ended
GRS202 —
71811-30450-B1 note Shield, Front Seat Cushion, RH
2010-09 → 2012-12 ended
GRS202 —
71848A — Cap, Seat Adjuster Cover, RH
71848-33010 Cap, Seat Adjuster Cover, RH
2010-09 → 2012-12 ended
GRS202 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-60110-A2 note Shield, Front Seat Cushion, Inner RH
2010-09 → 2012-12 ended
GRS202 —
71861-60110-B5 note Shield, Front Seat Cushion, Inner RH
2010-09 → 2012-12 ended
GRS202 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-30120-A1 note Shield, Front Seat Cushion, Inner NO.1 RH
2010-09 → 2012-12 ended
GRS202 —
71867-30120-B1 note Shield, Front Seat Cushion, Inner NO.1 RH
2010-09 → 2012-12 ended
GRS202 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-30090 Shield, Front Seat Cushion, Lower RH
2010-09 → 2012-12 ended
GRS202 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-12040 Shield, Front Seat Cushion, Lower LH
2010-09 → 2012-12 ended
GRS202 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-60150-A2 note Cover, Reclining Adjuster Inside, RH
2010-09 → 2012-12 ended
GRS202 —
71875-60150-B5 note Cover, Reclining Adjuster Inside, RH
2010-09 → 2012-12 ended
GRS202 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-58050 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2010-09 → 2012-12 ended
GRS202 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-58050 Cover, Reclining Adjuster Inside, LH
2010-09 → 2012-12 ended
GRS202 —
71910A — Headrest Assy, Front Seat
71910-30B80-A0 note Headrest Assy, Front Seat
2010-09 → 2010-12 ended
GRS202 —
71910-30B80-A3 note Headrest Assy, Front Seat
2010-12 → 2012-12 ended
GRS202 —
71931 — Support, Front Seat Headrest
71930-52030-A2 note Support, Front Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
71931-42020-A5 note Support, Front Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-30090-A1 note Cover, Seat Track Bracket, Outer Front RH
2010-09 → 2012-12 ended
GRS202 —
72123-30090-B1 note Cover, Seat Track Bracket, Outer Front RH
2010-09 → 2012-12 ended
GRS202 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-30090-A1 note Cover, Seat Track Bracket, Inner Front RH
2010-09 → 2012-12 ended
GRS202 —
72123-30090-B1 note Cover, Seat Track Bracket, Inner Front RH
2010-09 → 2012-12 ended
GRS202 —
72136 — Spacer, Seat Track, Lower NO.1
72136-30070 Spacer, Seat Track, Lower NO.1
2010-09 → 2012-12 ended
GRS202 —
72136A — Spacer, Seat Track, Lower NO.2
72136-30080 Spacer, Seat Track, Lower NO.2
2010-09 → 2012-12 ended
GRS202 —
72137B — Cover, Seat Track, RH
72137-30190-A1 note Cover, Seat Track, RH
2010-09 → 2012-12 ended
GRS202 —
72137-30190-B1 note Cover, Seat Track, RH
2010-09 → 2012-12 ended
GRS202 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-30090-A1 note Cover, Seat Track Bracket, Inner RH
2010-09 → 2012-12 ended
GRS202 —
72157-30090-B1 note Cover, Seat Track Bracket, Inner RH
2010-09 → 2012-12 ended
GRS202 —
72750D — Adjuster Assy, Lumbar Support, RH
72750-30260 Adjuster Assy, Lumbar Support, RH
2010-09 → 2012-12 ended
GRS202 —
73178B — Cap, Seat Belt Anchor Cover
73178-30030-A1 note Cap, Seat Belt Anchor Cover
2010-09 → 2012-12 ended
GRS202 —
73178-30030-B1 note Cap, Seat Belt Anchor Cover
2010-09 → 2012-12 ended
GRS202 —
73910A — Airbag Assy, Front Seat, RH
73910-30070 Airbag Assy, Front Seat, RH
2010-09 → 2012-12 ended
GRS202 —
74610U — Grip Assy, Assist
71025-30020-A1 note Grip Assy, Assist
2010-09 → 2012-12 ended
GRS202 —
71025-30020-B1 note Grip Assy, Assist
2010-09 → 2012-12 ended
GRS202 —
74617C — Plug, Assist Grip
74617-30070-A2 note Plug, Assist Grip
2010-09 → 2012-12 ended
GRS202 —
74617-30070-B2 note Plug, Assist Grip
2010-09 → 2012-12 ended
GRS202 —
74617D — Plug, Assist Grip
74618-30020-A2 note Plug, Assist Grip
2010-09 → 2012-12 ended
GRS202 —
74618-30020-B2 note Plug, Assist Grip
2010-09 → 2012-12 ended
GRS202 —
79977A — Felt, Seatback
79977-48010 Felt, Seatback
2010-09 → 2012-12 ended
GRS202 —
85860 — Blower Assy, Seat Cushion Climate Control
85860-30020 Blower Assy, Seat Cushion Climate Control
2010-09 → 2012-12 ended
GRS202 —
85862 — Blower, Seat Climate Control, RH
85862-30020 Blower, Seat Climate Control, RH
2010-09 → 2012-12 ended
GRS202 —
85866 — Duct, Seat Cushion Climate Control, RH
85866-30010 Duct, Seat Cushion Climate Control, RH
2010-09 → 2012-12 ended
GRS202 —
85867 — Blower, Seatback Climate Control, RH
85867-33010 Blower, Seatback Climate Control, RH
2010-09 → 2012-12 ended
GRS202 —
85869 — Cover, Seatback Climate Control, RH
85869-30010 Cover, Seatback Climate Control, RH
2010-09 → 2012-12 ended
GRS202 —
87501A — Control Sub-assy, Seat Heater, RH
87501-60010 Control Sub-assy, Seat Heater, RH
2010-09 → 2012-02 ended
GRS202 —
87501-60060 Control Sub-assy, Seat Heater, RH
2012-03 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
