Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

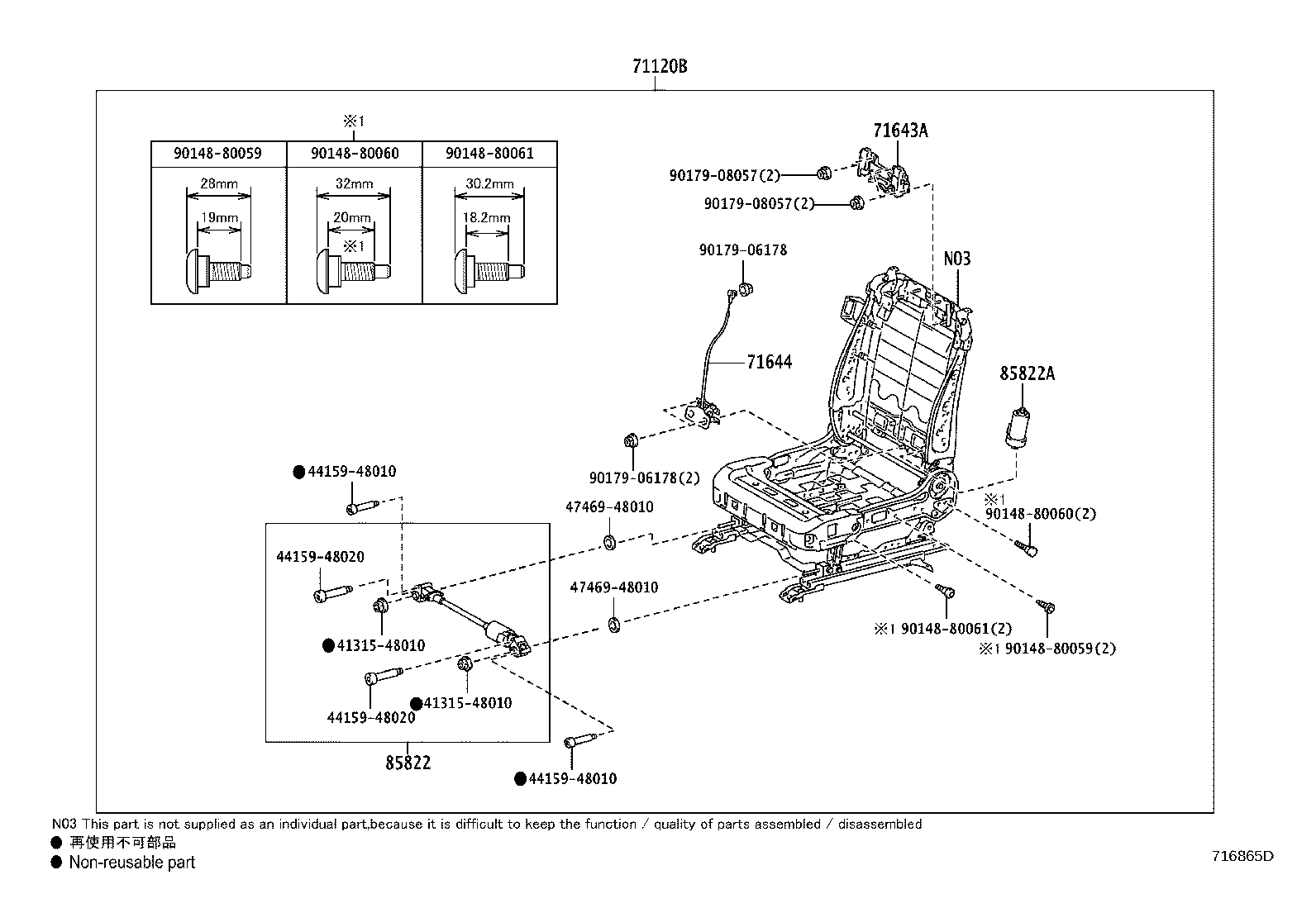

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71120B — Frame Assy, Front Seat W/Adjuster, LH | ||||
| 71120-30310 |
Frame Assy, Front Seat W/Adjuster, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 71643A — Unit, Active Headrest, Upr | ||||
| 71643-12011 |
Unit, Active Headrest, Upr
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 71644 — Unit, Active Headrest, Lwr | ||||
| 71644-12030 |
Unit, Active Headrest, Lwr
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85822 — Motor Assy, Power Seat Slide, LH | ||||
| 85801-30230 |
Motor Assy, Power Seat Slide, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85822A — Motor Assy, Power Seat Reclining, LH | ||||
| 85820-30750 |
Motor Assy, Power Seat Reclining, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
