Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 716869C 9011908C37 — not listed in this catalogue 9011908C37 — not listed in this catalogue 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 9015960081 — not listed in this catalogue 71611 — PAD, REAR SEAT CUSHION (1 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (1 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (2 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (1 parts) 85820X — MOTOR ASSY, POWER SEAT (1 parts) 9011908C37 — not listed in this catalogue 9011908C37 — not listed in this catalogue 9017908241 — not listed in this catalogue 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (1 parts) 85820X — MOTOR ASSY, POWER SEAT (1 parts) 71940A — HEADREST ASSY, REAR SEAT (2 parts) 71695 — PROTECTOR, REAR SEATBACK (2 parts) 71695 — PROTECTOR, REAR SEATBACK (2 parts) 71970 — HEADREST ASSY, REAR SEAT (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71956B — SUPPORT, REAR SEAT HEADREST (2 parts) 71956B — SUPPORT, REAR SEAT HEADREST (2 parts) 71266 — GUSSET, REAR SEATBACK FRAME (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71940A — HEADREST ASSY, REAR SEAT (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (2 parts) 72996 — COVER, REAR SEATBACK, RH (2 parts) 9017908241 — not listed in this catalogue 72996 — COVER, REAR SEATBACK, RH (2 parts) 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (2 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (1 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 87519A — BRACKET, SEAT HEATER CONNECTOR CLAMP (1 parts) 87519A — BRACKET, SEAT HEATER CONNECTOR CLAMP (1 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9151180814 — not listed in this catalogue 9151180814 — not listed in this catalogue 73705 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH (1 parts) 73706 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH (1 parts) 9011908C37 — not listed in this catalogue 9017906168 — not listed in this catalogue 9356054014 — not listed in this catalogue 9054104019 — not listed in this catalogue 9054104019 — not listed in this catalogue 71305S — FRAME SUB-ASSY, CENTER SEATBACK (1 parts) 72861 — TRIM, CENTER ARMREST CORNER (1 parts) 72978 — COVER, NO.2 CENTER SEATBACK (1 parts) 9017908241 — not listed in this catalogue 72996 — COVER, REAR SEATBACK, RH (2 parts) 9046818008 — not listed in this catalogue 9046816019 — not listed in this catalogue 9046818008 — not listed in this catalogue 9046816019 — not listed in this catalogue 9046818008 — not listed in this catalogue 9046816019 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue

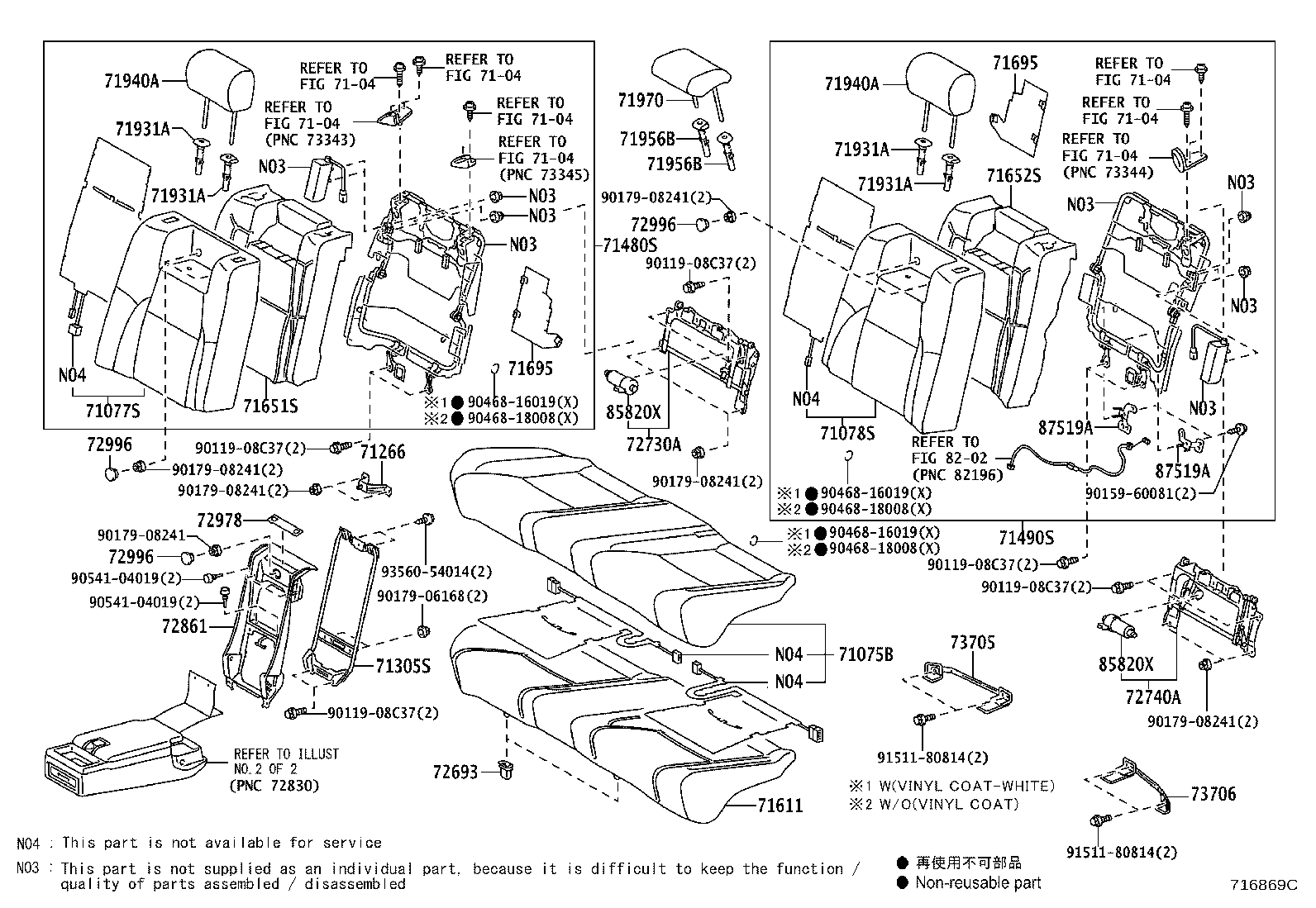

716869C · 35 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-30D70-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2010-09 → 2010-12 ended
GRS202 —
71075-30D70-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2010-12 → 2012-12 ended
GRS202 —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-30C31-A3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-30701-A3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71266 — Gusset, Rear Seatback Frame
71266-30130 Gusset, Rear Seatback Frame
2010-09 → 2012-12 ended
GRS202 —
71305S — Frame Sub-assy, Center Seatback
71360-30020 Frame Sub-assy, Center Seatback
2010-09 → 2012-12 ended
GRS202 —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-30C41-A0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2010-09 → 2010-12 ended
GRS202 —
71480-30C41-A3 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2010-12 → 2012-12 ended
GRS202 —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-30831-A0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2010-09 → 2010-12 ended
GRS202 —
71490-30831-A3 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2010-12 → 2012-12 ended
GRS202 —
71611 — Pad, Rear Seat Cushion
71503-30250 Pad, Rear Seat Cushion
2010-09 → 2012-12 ended
GRS202 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-30A31 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-30541 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2010-09 → 2012-12 ended
GRS202 —
71695 — Protector, Rear Seatback
71695-30020 note Protector, Rear Seatback
2010-09 → 2012-12 ended
GRS202 —
71695-30030 note Protector, Rear Seatback
2010-09 → 2012-12 ended
GRS202 —
71931A — Support, Rear Seat Headrest
71930-44020-A2 note Support, Rear Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
71931-47010-A7 note Support, Rear Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
71940A — Headrest Assy, Rear Seat
71940-30B20-A0 note Headrest Assy, Rear Seat
2010-09 → 2010-12 ended
GRS202 —
71940-30B20-A3 note Headrest Assy, Rear Seat
2010-12 → 2012-12 ended
GRS202 —
71956B — Support, Rear Seat Headrest
71955-30010-A0 note Support, Rear Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
71956-30030-A0 note Support, Rear Seat Headrest
2010-09 → 2012-12 ended
GRS202 —
71970 — Headrest Assy, Rear Seat
71960-30330-A0 note Headrest Assy, Rear Seat
2010-09 → 2012-12 ended
GRS202 —
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2010-09 → 2012-12 ended
GRS202 —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-30050 Adjuster Assy, Rear Seat Reclining, RH
2010-09 → 2012-12 ended
GRS202 —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-30050 Adjuster Assy, Rear Seat Reclining, LH
2010-09 → 2012-12 ended
GRS202 —
72861 — Trim, Center Armrest Corner
72861-30040-A4 note Trim, Center Armrest Corner
2010-09 → 2012-12 ended
GRS202 —
72978 — Cover, NO.2 Center Seatback
72978-30020-A0 note Cover, NO.2 Center Seatback
2010-09 → 2012-12 ended
GRS202 —
72996 — Cover, Rear Seatback, RH
72996-50100-A3 note Cover, Rear Seatback, RH
2010-09 → 2012-12 ended
GRS202 —
72996-50100-B1 note Cover, Rear Seatback, RH
2010-09 → 2012-12 ended
GRS202 —
73705 — Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705-30030 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2010-09 → 2012-12 ended
GRS202 —
73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH
73706-30030 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2010-09 → 2012-12 ended
GRS202 —
85820X — Motor Assy, Power Seat
85820-30750 Motor Assy, Power Seat
2010-09 → 2012-12 ended
GRS202 —
87519A — Bracket, Seat Heater Connector Clamp
87519-30020 Bracket, Seat Heater Connector Clamp
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
