Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

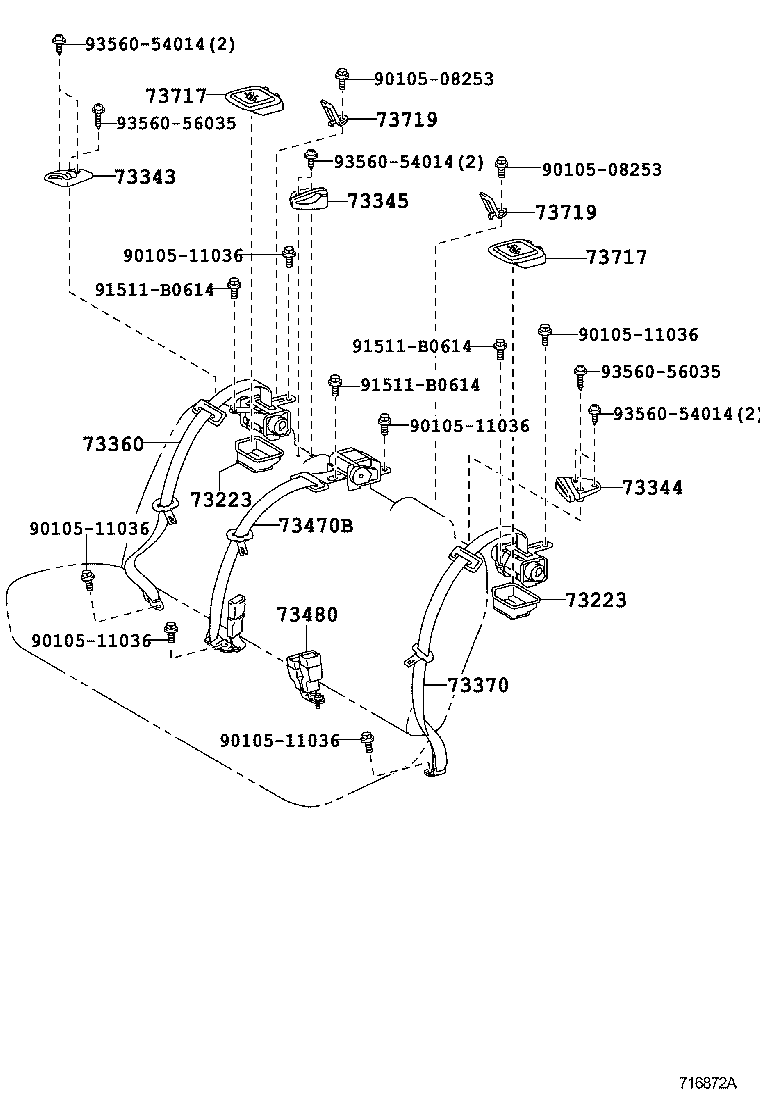

Exploded illustration 716872A 73717 — COVER, CHILD RESTRAINT SEAT TETHER ANCHOR (2 parts) 73343 — GUIDE, REAR SEAT SHOULDER BELT, RH (2 parts) 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (2 parts) 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (2 parts) 73223 — COVER, SEAT BELT RETRACTOR (1 parts) 73344 — GUIDE, REAR SEAT SHOULDER BELT, LH (2 parts) 73470B — BELT ASSY, REAR SEAT INNER W/CENTER, RH (2 parts) 73717 — COVER, CHILD RESTRAINT SEAT TETHER ANCHOR (2 parts) 73345 — GUIDE, REAR SEAT SHOULDER BELT, CENTER (2 parts) 73719 — BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR (1 parts) 73719 — BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR (1 parts) 73223 — COVER, SEAT BELT RETRACTOR (1 parts) 9356054014 — not listed in this catalogue 9356056035 — not listed in this catalogue 9010511036 — not listed in this catalogue 9010511036 — not listed in this catalogue 9010511036 — not listed in this catalogue 9356054014 — not listed in this catalogue 91511B0614 — not listed in this catalogue 91511B0614 — not listed in this catalogue 9010511036 — not listed in this catalogue 9356056035 — not listed in this catalogue 9010511036 — not listed in this catalogue 9010508253 — not listed in this catalogue 9356054014 — not listed in this catalogue 9010508253 — not listed in this catalogue 9010511036 — not listed in this catalogue 91511B0614 — not listed in this catalogue 73480 — BELT ASSY, REAR SEAT INNER W/CENTER, LH (2 parts)
716872A · 13 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
73223 — Cover, Seat Belt Retractor
73223-30140 Cover, Seat Belt Retractor
2010-09 → 2012-12 ended
GRS202 —
73343 — Guide, Rear Seat Shoulder Belt, RH
73330-33010-A4 note Guide, Rear Seat Shoulder Belt, RH
2010-09 → 2012-12 ended
GRS202 —
73330-33010-B2 note Guide, Rear Seat Shoulder Belt, RH
2010-09 → 2012-12 ended
GRS202 —
73344 — Guide, Rear Seat Shoulder Belt, LH
73340-33010-A6 note Guide, Rear Seat Shoulder Belt, LH
2010-09 → 2012-12 ended
GRS202 —
73340-33010-B2 note Guide, Rear Seat Shoulder Belt, LH
2010-09 → 2012-12 ended
GRS202 —
73345 — Guide, Rear Seat Shoulder Belt, Center
73343-30060-A3 note Guide, Rear Seat Shoulder Belt, Center
2010-09 → 2012-12 ended
GRS202 —
73343-30060-B4 note Guide, Rear Seat Shoulder Belt, Center
2010-09 → 2012-12 ended
GRS202 —
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-30510-A0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2010-09 → 2012-12 ended
GRS202 —
73360-30510-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2010-09 → 2012-12 ended
GRS202 —
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73370-30320-A0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2010-09 → 2012-12 ended
GRS202 —
73370-30320-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2010-09 → 2012-12 ended
GRS202 —
73470B — Belt Assy, Rear Seat Inner W/Center, RH
73470-30050-A0 note Belt Assy, Rear Seat Inner W/Center, RH
2010-09 → 2012-12 ended
GRS202 —
73470-30050-B0 note Belt Assy, Rear Seat Inner W/Center, RH
2010-09 → 2012-12 ended
GRS202 —
73480 — Belt Assy, Rear Seat Inner W/Center, LH
73480-30280-A0 note Belt Assy, Rear Seat Inner W/Center, LH
2010-09 → 2012-12 ended
GRS202 —
73480-30280-B0 note Belt Assy, Rear Seat Inner W/Center, LH
2010-09 → 2012-12 ended
GRS202 —
73717 — Cover, Child Restraint Seat Tether Anchor
73717-50020-A2 note Cover, Child Restraint Seat Tether Anchor
2010-09 → 2012-12 ended
GRS202 —
73717-50020-B5 note Cover, Child Restraint Seat Tether Anchor
2010-09 → 2012-12 ended
GRS202 —
73719 — Bracket, Child Restraint Seat Tether Anchor
73719-30010 Bracket, Child Restraint Seat Tether Anchor
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
