Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

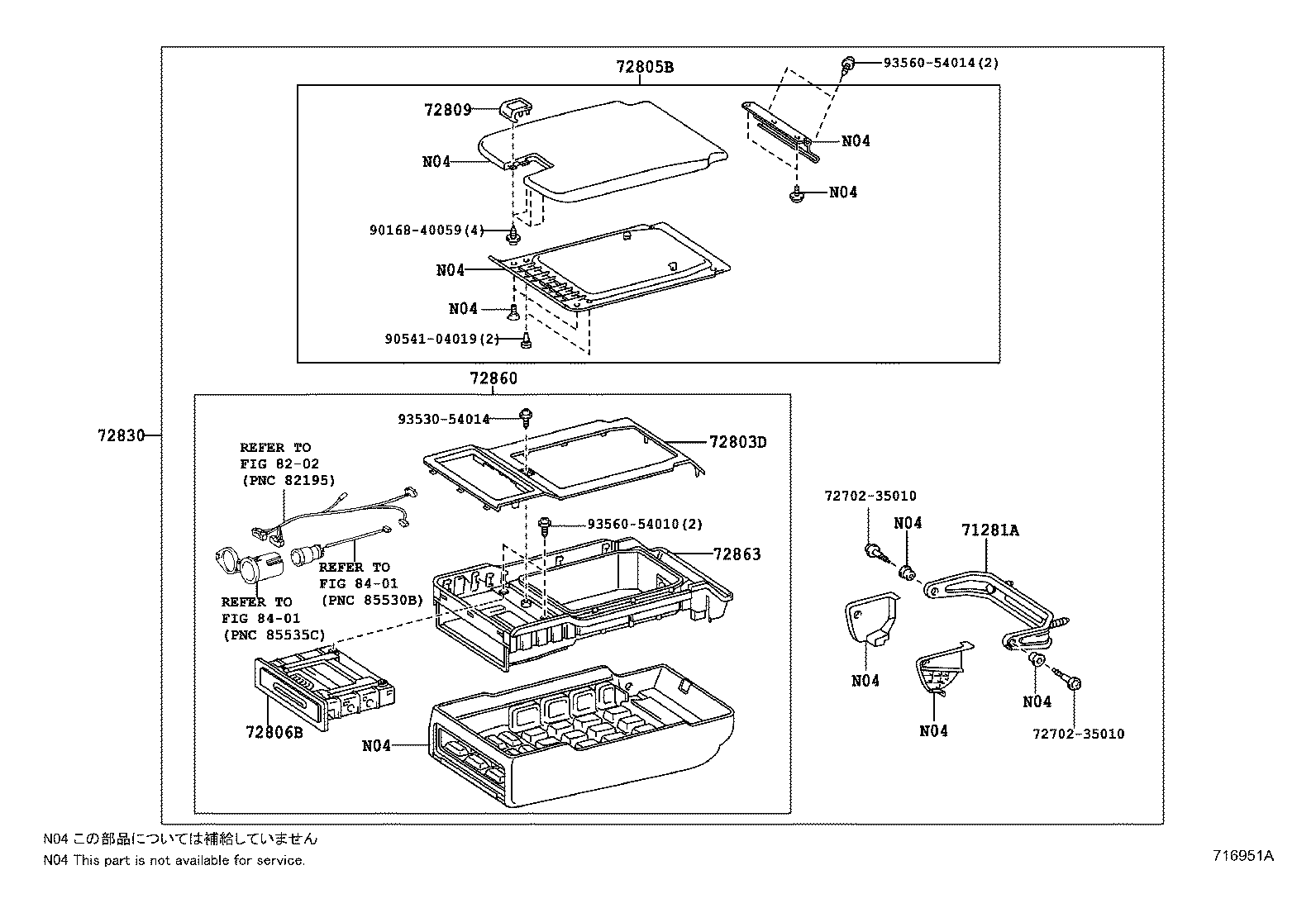

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71281A — Hinge, Rear Seat Center Armrest | ||||
| 71281-30060 |
Hinge, Rear Seat Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72803D — Panel Sub-assy, Rear Seat Center Armrest | ||||
| 72803-30210-E0 note |
Panel Sub-assy, Rear Seat Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72805B — Door Sub-assy, Rear Seat Center Armrest | ||||
| 72805-30421-A2 note |
Door Sub-assy, Rear Seat Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72806B — Holder Sub-assy, Rear Seat Center Armrest Cup | ||||
| 72806-30090-A1 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72809 — Lock Sub-assy, Center Armrest | ||||
| 72809-30030-A1 note |
Lock Sub-assy, Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72830 — Armrest Assy, Rear Seat, Center | ||||
| 72830-30F10-A1 note |
Armrest Assy, Rear Seat, Center
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72860 — Box Assy, Rear Seat Center Armrest | ||||
| 72860-30650-A0 note |
Box Assy, Rear Seat Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 72863 — Box, Rear Seat Center Armrest | ||||
| 72863-30070 |
Box, Rear Seat Center Armrest
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
