Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

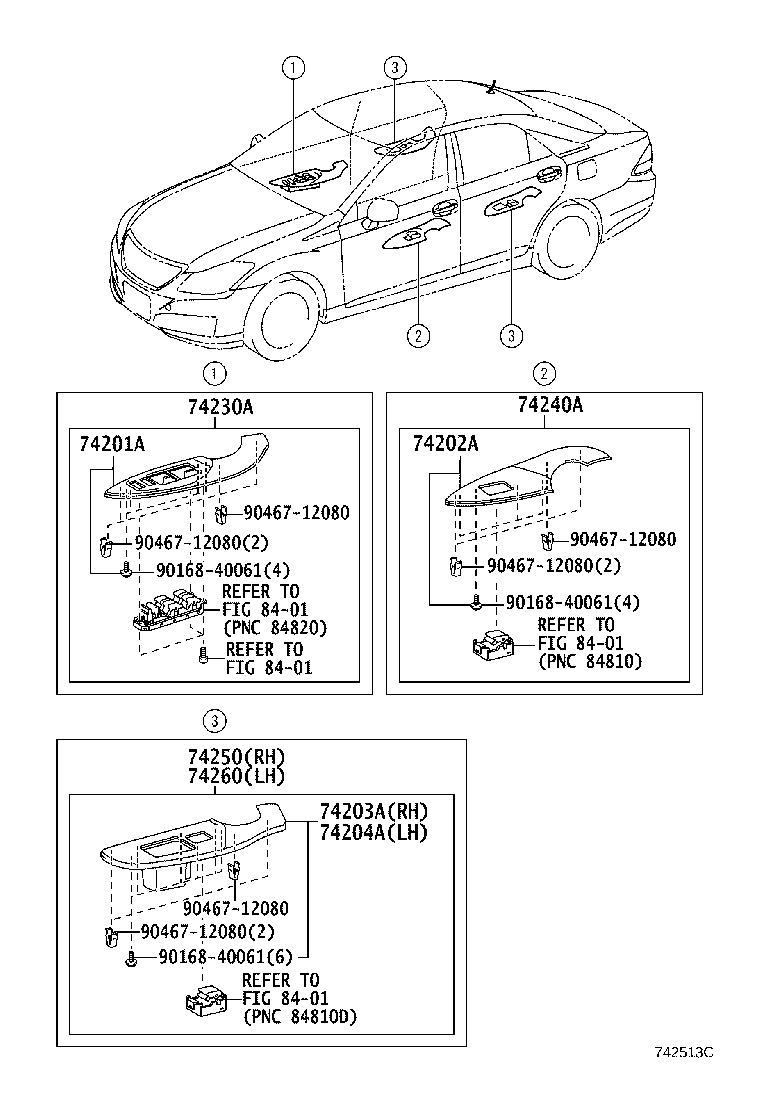

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74201A — Panel Sub-assy, Front Armrest Base, Upper RH | ||||
| 74201-30140-E0 note |
Panel Sub-assy, Front Armrest Base, Upper RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74202A — Panel Sub-assy, Front Armrest Base, Upper LH | ||||
| 74202-30140-E0 note |
Panel Sub-assy, Front Armrest Base, Upper LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74203A — Panel Sub-assy, Rear Armrest Base, Upper RH | ||||
| 74203-30140-E0 note |
Panel Sub-assy, Rear Armrest Base, Upper RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74204A — Panel Sub-assy, Rear Armrest Base, Upper LH | ||||
| 74204-30140-E0 note |
Panel Sub-assy, Rear Armrest Base, Upper LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74230A — Panel Assy, Front Door Armrest Base, RH | ||||
| 74230-30340-E0 note |
Panel Assy, Front Door Armrest Base, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74240A — Panel Assy, Front Door Armrest Base, LH | ||||
| 74240-30350-E0 note |
Panel Assy, Front Door Armrest Base, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74250 — Armrest Assy, Rear RH | ||||
| 74250-30110-E0 note |
Armrest Assy, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74260 — Armrest Assy, Rear LH | ||||
| 74260-30110-E0 note |
Armrest Assy, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
