Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

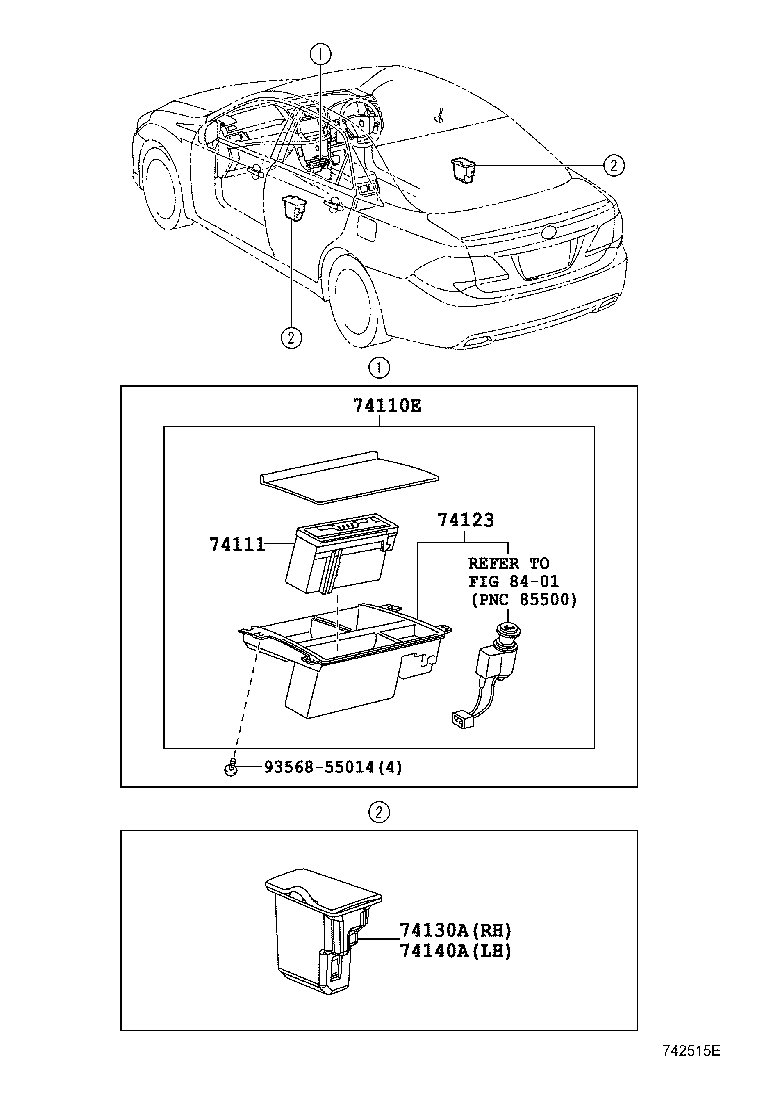

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74110E — Receptacle Assy, Front Ash | ||||
| 74110-30440 |
Receptacle Assy, Front Ash
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74111 — Box, Front Ash Receptacle | ||||
| 74111-30190 |
Box, Front Ash Receptacle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74123 — Retainer, Ash Receptacle | ||||
| 74121-30170 |
Retainer, Ash Receptacle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74130A — Receptacle Assy, Rear Ash, RH | ||||
| 74130-30410-E2 note |
Receptacle Assy, Rear Ash, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74140A — Receptacle Assy, Rear Ash, LH | ||||
| 74140-30250-E2 note |
Receptacle Assy, Rear Ash, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
