Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

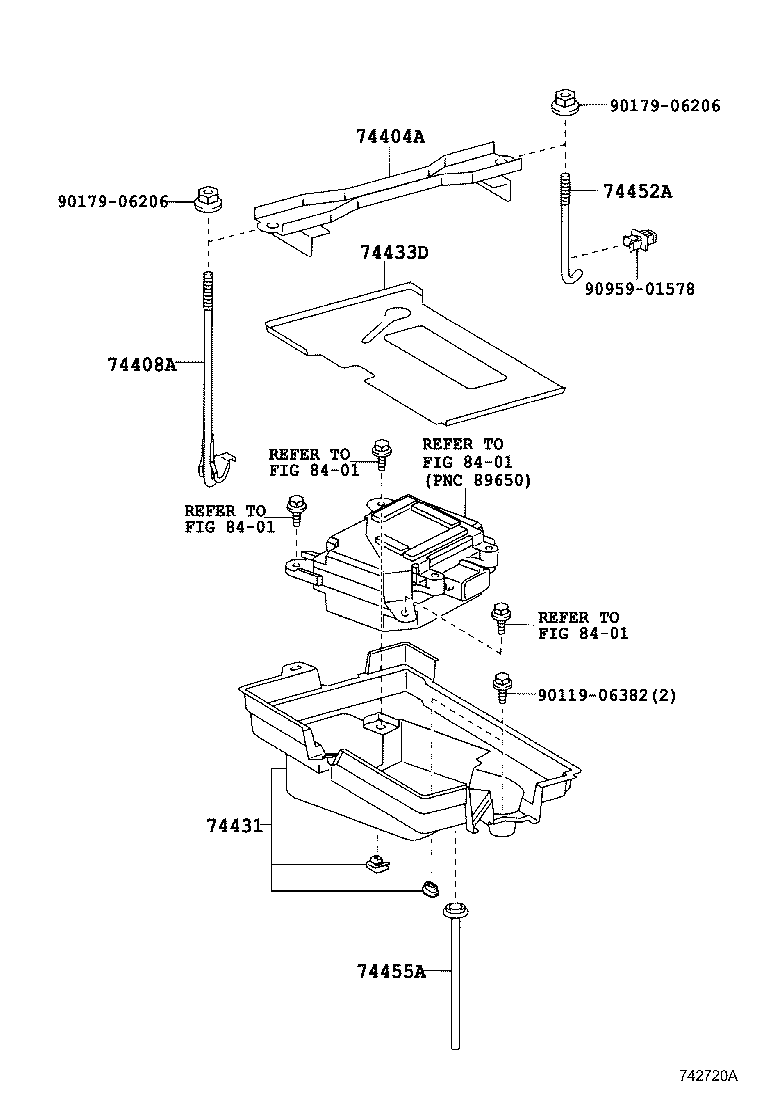

Exploded illustration 742720A 74404A — CLAMP SUB-ASSY, BATTERY (1 parts) 9017906206 — not listed in this catalogue 74408A — BOLT SUB-ASSY, BATTERY CLAMP, NO.2 (1 parts) 9011906382 — not listed in this catalogue 9095901578 — not listed in this catalogue 9017906206 — not listed in this catalogue 74452A — BOLT, BATTERY CLAMP, NO.2 (1 parts) 74431 — TRAY, BATTERY (1 parts) 74455A — HOSE, BATTERY DRAIN (1 parts) 74433D — SUPPORT, BATTERY TRAY,NO.1 (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
742720A · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
74404A — Clamp Sub-assy, Battery
74404-30280 Clamp Sub-assy, Battery
2010-09 → 2012-12 ended
GRS202 —
74408A — Bolt Sub-assy, Battery Clamp, NO.2
74408-30010 Bolt Sub-assy, Battery Clamp, NO.2
2010-09 → 2012-12 ended
GRS202 —
74431 — Tray, Battery
74431-30191 Tray, Battery
2010-09 → 2012-12 ended
GRS202 —
74433D — Support, Battery Tray,NO.1
74433-30022 Support, Battery Tray,NO.1
2010-09 → 2012-12 ended
GRS202 —
74452A — Bolt, Battery Clamp, NO.2
74452-30010 Bolt, Battery Clamp, NO.2
2010-09 → 2012-12 ended
GRS202 —
74455A — Hose, Battery Drain
74455-30020 Hose, Battery Drain
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
