Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

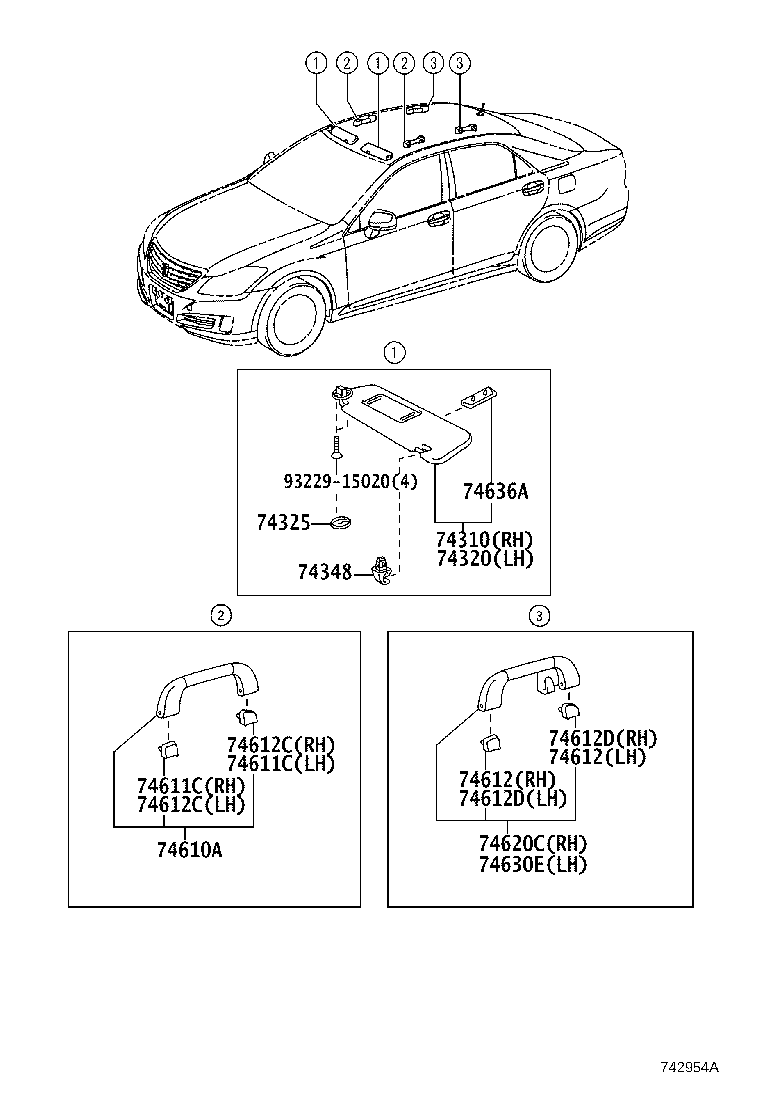

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-30B70-A0 note |
Visor Assy, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-30B50-A0 note |
Visor Assy, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74325 — Cover, Visor Bracket | ||||
| 74317-60020-A3 note |
Cover, Visor Bracket
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74348 — Holder, Visor | ||||
| 74348-33040-A3 note |
Holder, Visor
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74610-30240-A3 note |
Grip Sub-assy, Assist
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74610-30240-B1 note |
Grip Sub-assy, Assist
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74611C — Cover, Assist Grip, LH | ||||
| 74611-60050-A4 note |
Cover, Assist Grip, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74611-60050-B1 note |
Cover, Assist Grip, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74612 — Cover, Assist Grip | ||||
| 74611-60050-A4 note |
Cover, Assist Grip
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74611-60050-B1 note |
Cover, Assist Grip
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74612C — Cover, Assist Grip, RH | ||||
| 74612-60100-A4 note |
Cover, Assist Grip, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74612-60100-B1 note |
Cover, Assist Grip, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74612D — Cover, Assist Grip | ||||
| 74612-60100-A4 note |
Cover, Assist Grip
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74612-60100-B1 note |
Cover, Assist Grip
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74620C — Grip Assy, Assist, Rear RH | ||||
| 74610-30320-A3 note |
Grip Assy, Assist, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74610-30320-B1 note |
Grip Assy, Assist, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74630E — Grip Assy, Assist, Rear LH | ||||
| 74610-30330-A3 note |
Grip Assy, Assist, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74610-30330-B1 note |
Grip Assy, Assist, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 74636A — Bezel, Card Holder | ||||
| 74636-30010-A4 note |
Bezel, Card Holder
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
