Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

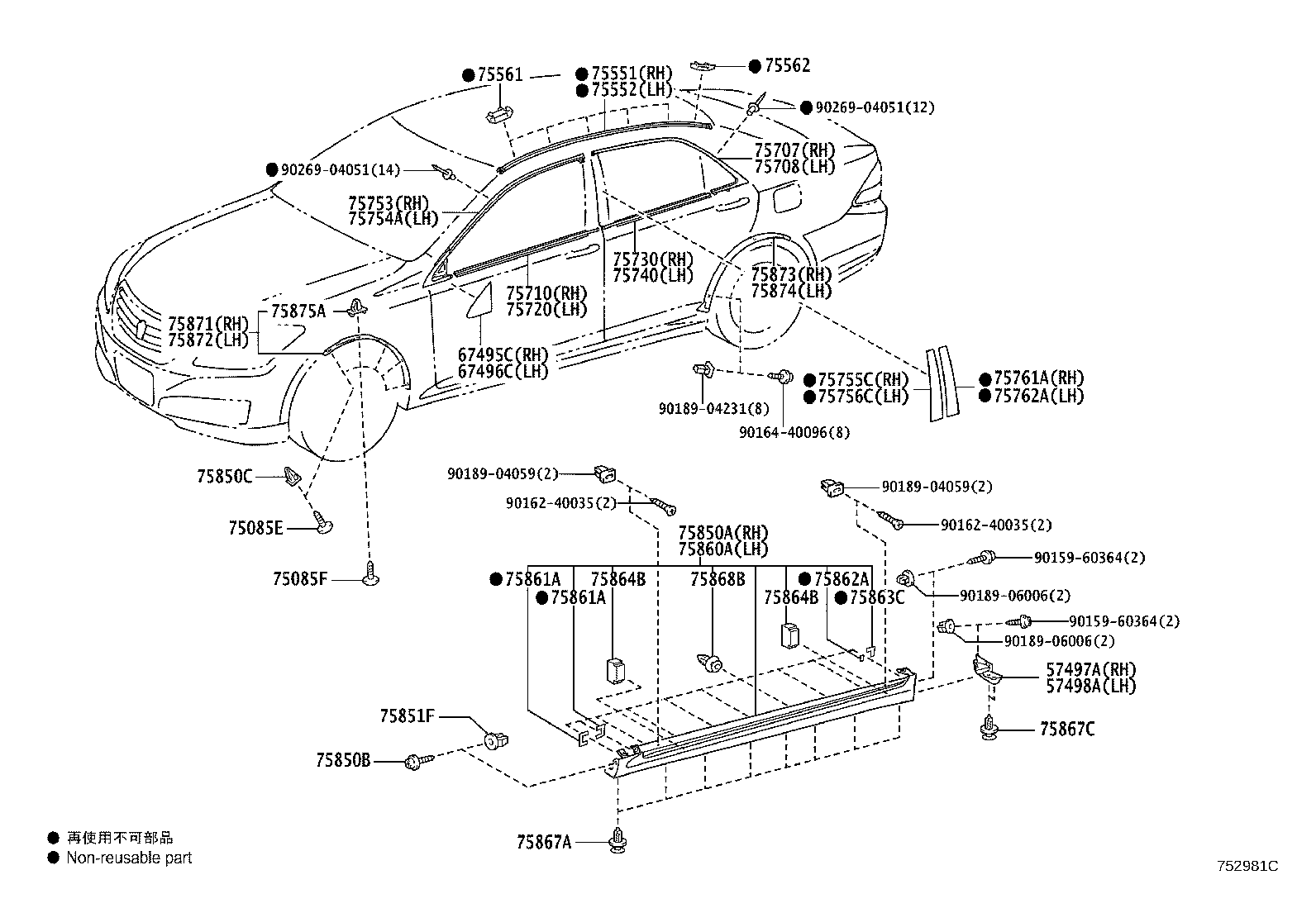

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 57497A — Shield, Rear Floor Housing | ||||
| 57497-30030 |
Shield, Rear Floor Housing
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 57498A — Shield, Rear Floor Housing, NO.2 | ||||
| 57498-30030 |
Shield, Rear Floor Housing, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67495C — Cover, Front Door Front Lower Frame, Upper RH | ||||
| 67495-30100 |
Cover, Front Door Front Lower Frame, Upper RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 67496C — Cover, Front Door Front Lower Frame, Upper LH | ||||
| 67496-30090 |
Cover, Front Door Front Lower Frame, Upper LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75085E — Screw, NO.1 | ||||
| 90164-40096 |
Screw, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75085F — Screw, NO.2 | ||||
| 90164-40096 |
Screw, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551 — Moulding, Roof Drip Side Finish, RH | ||||
| 75551-30450-A1 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-B0 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-B1 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-C0 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-D0 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-F0 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75551-30450-J0 note |
Moulding, Roof Drip Side Finish, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552 — Moulding, Roof Drip Side Finish, LH | ||||
| 75552-30450-A1 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-B0 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-B1 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-C0 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-D0 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-F0 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75552-30450-J0 note |
Moulding, Roof Drip Side Finish, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75561 — Clip, Roof Drip Side Finish Moulding, NO.1 | ||||
| 75561-30220 |
Clip, Roof Drip Side Finish Moulding, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75562 — Clip, Roof Drip Side Finish Moulding, NO.2 | ||||
| 75562-30140 |
Clip, Roof Drip Side Finish Moulding, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75707 — Moulding Sub-assy, Rear Door Window Frame, RH | ||||
| 75707-30060 |
Moulding Sub-assy, Rear Door Window Frame, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75708 — Moulding Sub-assy, Rear Door Window Frame, LH | ||||
| 75708-30070 |
Moulding Sub-assy, Rear Door Window Frame, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75710 — Moulding Assy, Front Door Belt, RH | ||||
| 75710-30490 |
Moulding Assy, Front Door Belt, RH
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 75710-30530 |
Moulding Assy, Front Door Belt, RH
2011-12 → 2012-12
ended
|
GRS202 | — | |
| 75720 — Moulding Assy, Front Door Belt, LH | ||||
| 75720-30490 |
Moulding Assy, Front Door Belt, LH
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 75720-30530 |
Moulding Assy, Front Door Belt, LH
2011-12 → 2012-12
ended
|
GRS202 | — | |
| 75730 — Moulding Assy, Rear Door Belt, RH | ||||
| 75730-30370 |
Moulding Assy, Rear Door Belt, RH
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 75730-30420 |
Moulding Assy, Rear Door Belt, RH
2011-12 → 2012-12
ended
|
GRS202 | — | |
| 75740 — Moulding Assy, Rear Door Belt, LH | ||||
| 75740-30420 |
Moulding Assy, Rear Door Belt, LH
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 75740-30470 |
Moulding Assy, Rear Door Belt, LH
2011-12 → 2012-12
ended
|
GRS202 | — | |
| 75753 — Moulding, Front Door Window Frame, Upper RH | ||||
| 75071-30090 |
Moulding, Front Door Window Frame, Upper RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75754A — Moulding, Front Door Window Frame, Upper LH | ||||
| 75072-30090 |
Moulding, Front Door Window Frame, Upper LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75755C — Moulding, Front Door Window Frame, Rear RH | ||||
| 75755-30140 |
Moulding, Front Door Window Frame, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75756C — Moulding, Front Door Window Frame, Rear LH | ||||
| 75756-30130 |
Moulding, Front Door Window Frame, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75761A — Moulding, Rear Door Window Frame, Front RH | ||||
| 75761-30130 note |
Moulding, Rear Door Window Frame, Front RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75762A — Moulding, Rear Door Window Frame, Front LH | ||||
| 75762-30130 note |
Moulding, Rear Door Window Frame, Front LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75850A — Moulding Assy, Body Rocker Panel, RH | ||||
| 75850-30290-A1 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-B0 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-B1 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-C0 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-D0 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-F0 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30290-J0 note |
Moulding Assy, Body Rocker Panel, RH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75850-30291-A1 note |
Moulding Assy, Body Rocker Panel, RH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75850-30291-B0 note |
Moulding Assy, Body Rocker Panel, RH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75850-30291-C0 note |
Moulding Assy, Body Rocker Panel, RH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75850-30291-J0 note |
Moulding Assy, Body Rocker Panel, RH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75850B — Screw, NO.3 | ||||
| 90159-60364 |
Screw, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75850C — Grommet, NO.1 | ||||
| 90189-04207 |
Grommet, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75851F — Grommet(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90189-06006 |
Grommet(FOR BODY ROCKER PANEL MOULDING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75860A — Moulding Assy, Body Rocker Panel, LH | ||||
| 75860-30280-A1 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-B0 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-B1 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-C0 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-D0 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-F0 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30280-J0 note |
Moulding Assy, Body Rocker Panel, LH
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75860-30281-A1 note |
Moulding Assy, Body Rocker Panel, LH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75860-30281-B0 note |
Moulding Assy, Body Rocker Panel, LH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75860-30281-C0 note |
Moulding Assy, Body Rocker Panel, LH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75860-30281-J0 note |
Moulding Assy, Body Rocker Panel, LH
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75861A — Protector, Rocker Panel Moulding, NO.1 | ||||
| 75866-30050 |
Protector, Rocker Panel Moulding, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75862A — Protector, Rocker Panel Moulding, NO.2 | ||||
| 75866-30060 |
Protector, Rocker Panel Moulding, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75863C — Protector, Rocker Panel Moulding, NO.3 | ||||
| 75866-30070 |
Protector, Rocker Panel Moulding, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75864B — Protector, Rocker Panel Moulding, NO.4 | ||||
| 75861-30110 |
Protector, Rocker Panel Moulding, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75867A — Clip, Rocker Panel Moulding | ||||
| 75867-30120 |
Clip, Rocker Panel Moulding
2010-09 → 2011-09
ended
|
GRS202 | — | |
| 75867-33050 |
Clip, Rocker Panel Moulding
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 75867C — Clip, Rocker Panel Moulding | ||||
| 75867-30140 |
Clip, Rocker Panel Moulding
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75868B — Clip, Rocker Panel Moulding, NO.2 | ||||
| 75867-33030 |
Clip, Rocker Panel Moulding, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75871 — Moulding, Front Fender Wheel Opening, RH | ||||
| 75871-30380 |
Moulding, Front Fender Wheel Opening, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75872 — Moulding, Front Fender Wheel Opening, LH | ||||
| 75872-30380 |
Moulding, Front Fender Wheel Opening, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75873 — Moulding, Quarter Panel Wheel Opening, RH | ||||
| 75873-30380 |
Moulding, Quarter Panel Wheel Opening, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75874 — Moulding, Quarter Panel Wheel Opening, LH | ||||
| 75874-30380 |
Moulding, Quarter Panel Wheel Opening, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75875A — Clip, Front Fender Wheel Opening Moulding | ||||
| 75875-50010 |
Clip, Front Fender Wheel Opening Moulding
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
