Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

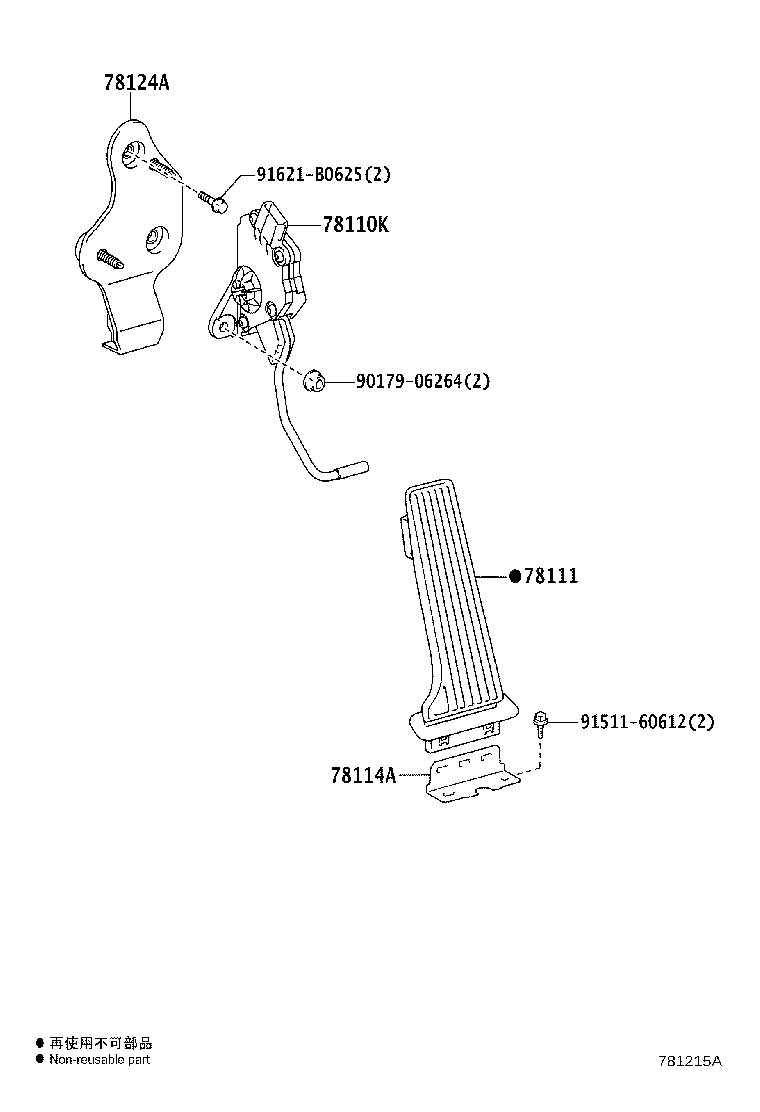

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-30130 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 78111 — Pedal, Accelerator | ||||
| 78111-30130 |
Pedal, Accelerator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 78114A — Bracket, Accelerator Pedal Support | ||||
| 78108-30130 |
Bracket, Accelerator Pedal Support
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 78124A — Bracket, Accelerator Pedal Rod | ||||
| 78124-30120 |
Bracket, Accelerator Pedal Rod
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
