Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

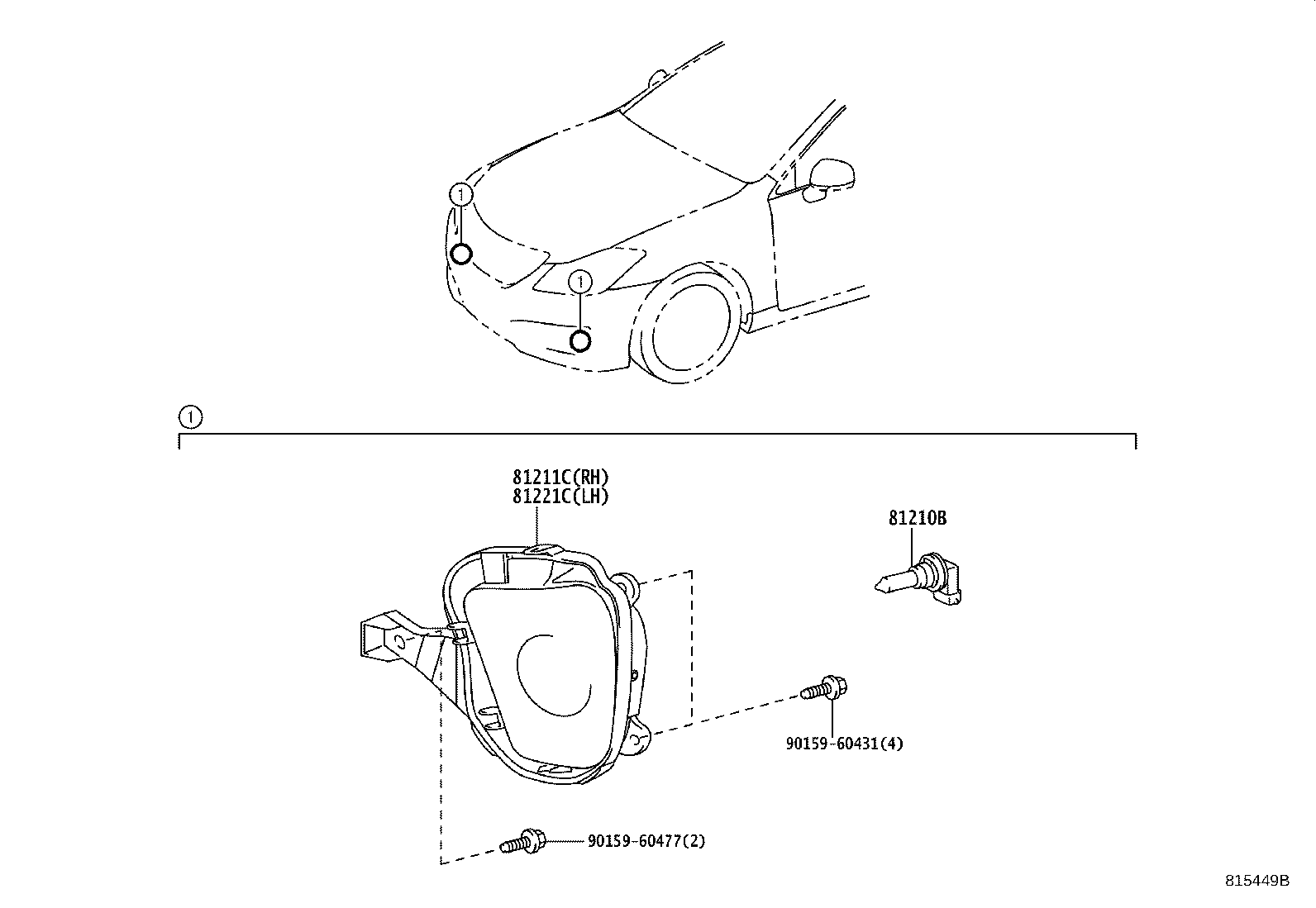

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210B — Bulb, Fog Lamp | ||||
| 90981-13083 note |
Bulb, Fog Lamp
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-30370 |
Lamp Unit, Fog Lamp, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-30340 |
Lamp Unit, Fog Lamp, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
