Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

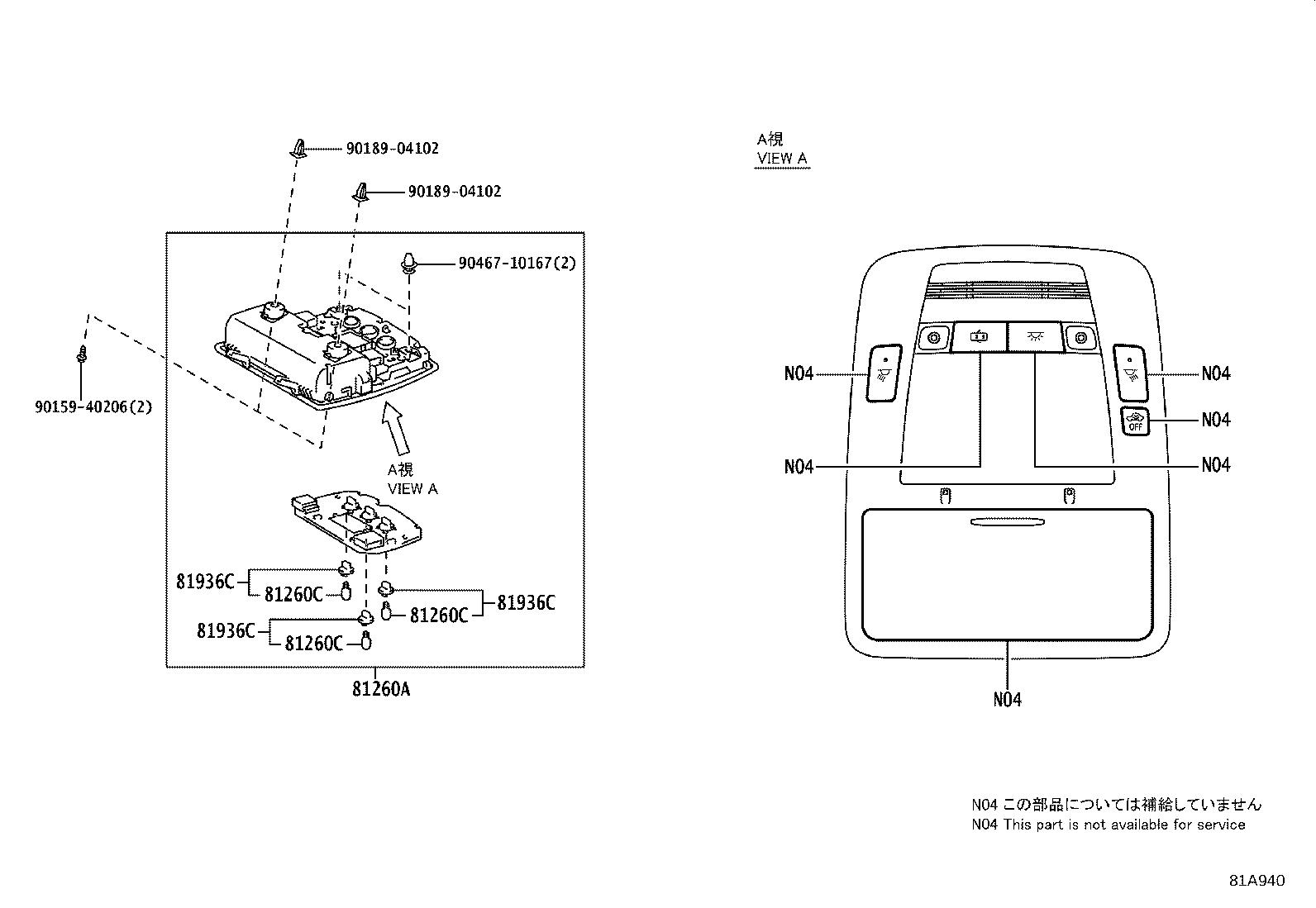

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81260A — Lamp Assy, Map | ||||
| 81260-30C60-A0 note |
Lamp Assy, Map
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 81260-30C60-B0 note |
Lamp Assy, Map
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 81260C — Bulb(FOR MAP LAMP) | ||||
| 90981-11062 note |
Bulb(FOR MAP LAMP)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 81936C — Bulb Assy | ||||
| 81936-12150 |
Bulb Assy
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
