Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

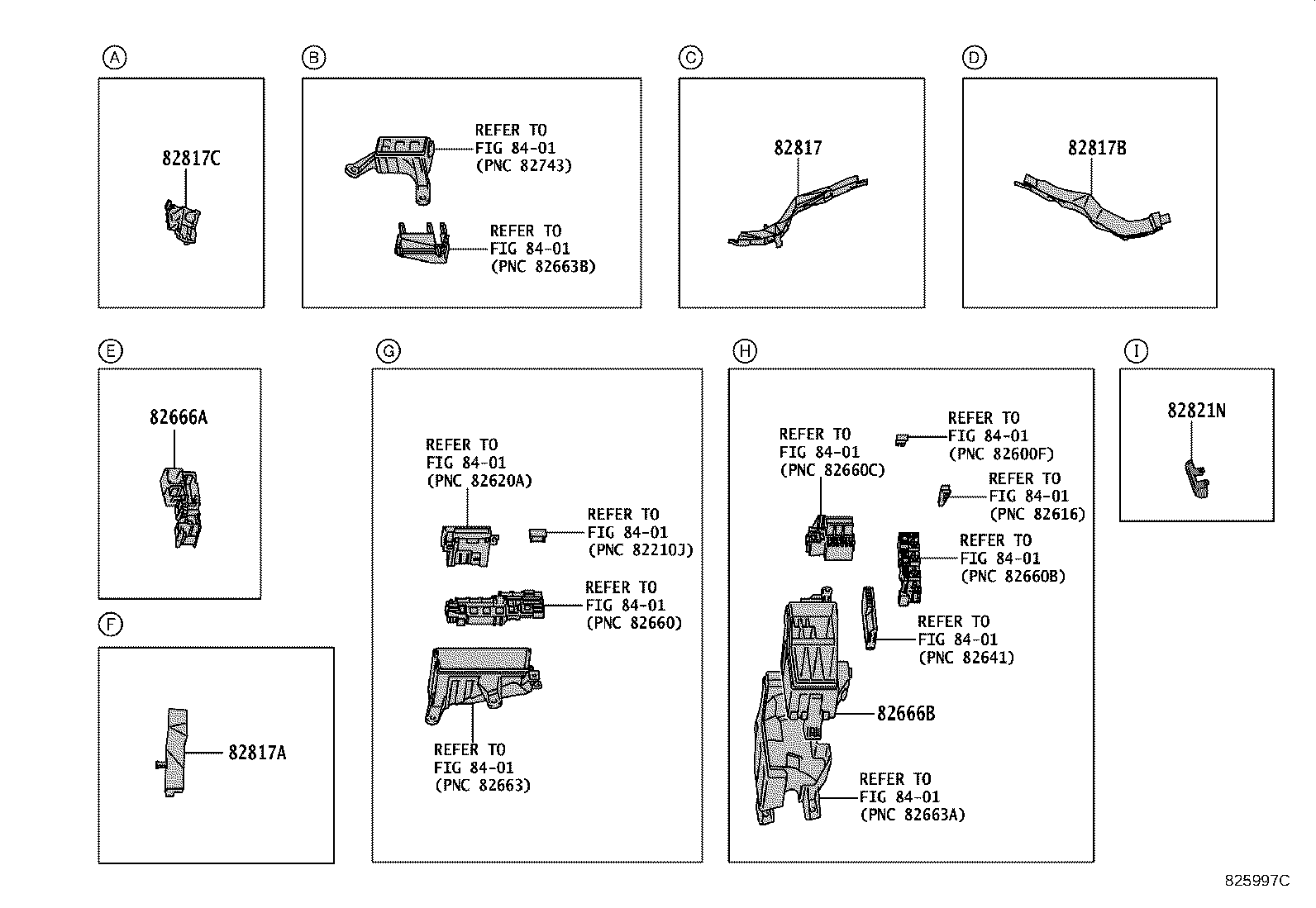

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82666A — Holder, Connector NO.2 | ||||
| 82666-30B00 |
Holder, Connector NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-30880 |
Holder, Connector NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-30A20 |
Protector, Wiring Harness, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-30A90 |
Protector, Wiring Harness, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-30B00 |
Protector, Wiring Harness, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-30K20 |
Protector, Wiring Harness, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82821N — Cover, Connector | ||||
| 82821-45010 |
Cover, Connector
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
