Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

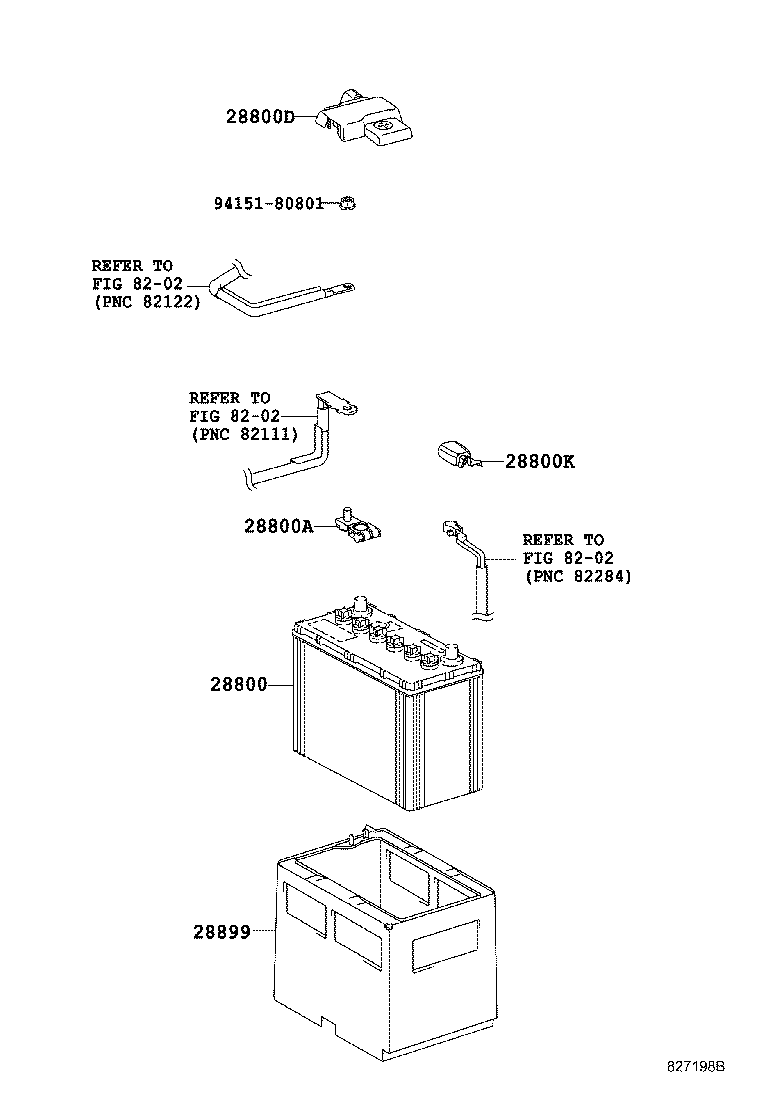

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-54020 note |
Battery
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05061 |
Terminal, Battery Positive
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-30640 |
Cover, Connector(FOR BATTERY TERMINAL)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 28800K — Cover, Connector(FOR BATTERY TERMINAL NEGATIVE) | ||||
| 82821-50450 |
Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-38060 |
Insulator, Battery
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
