Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

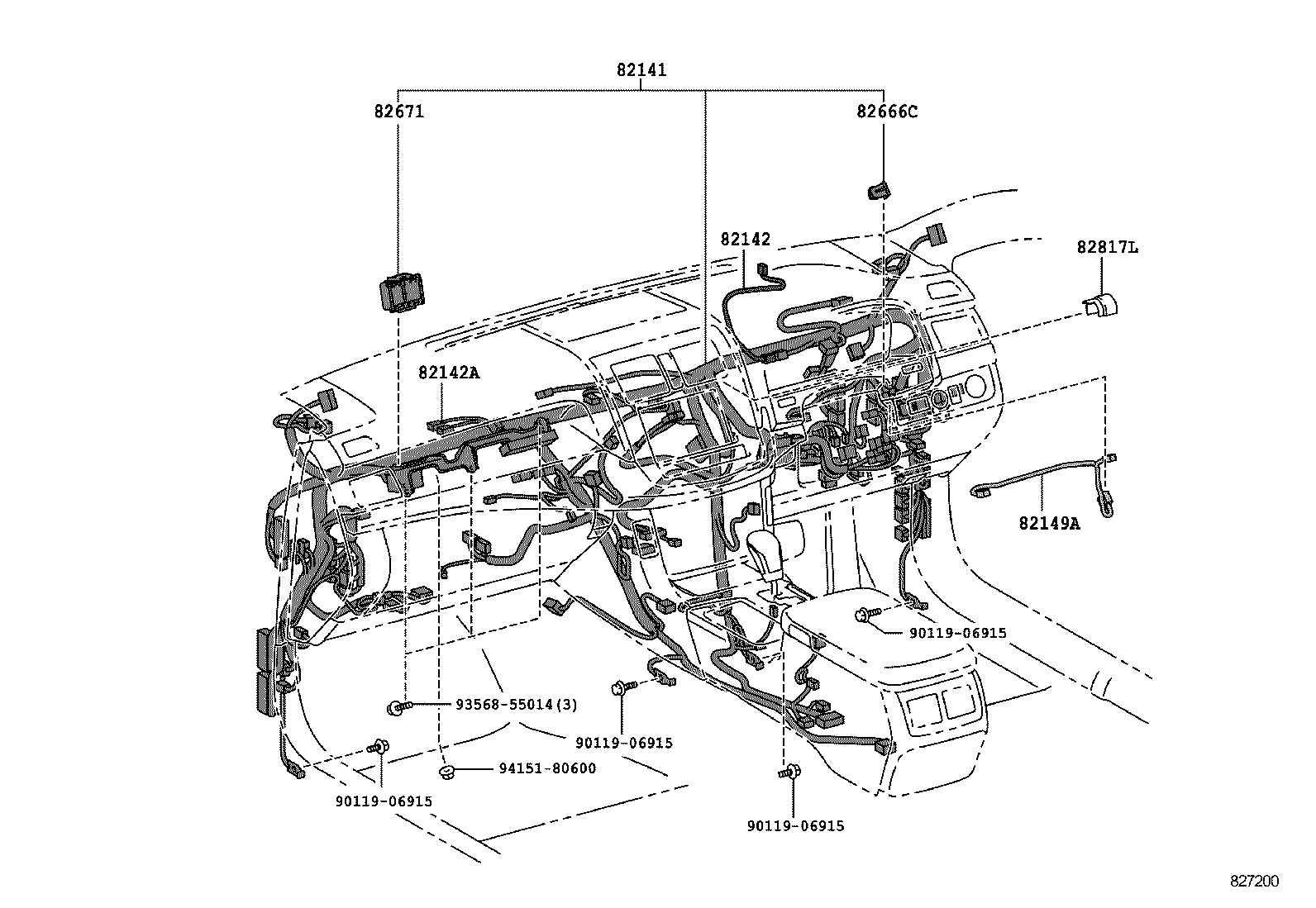

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-3AB80 |
Wire, Instrument Panel
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-30070 |
Wire, Instrument Panel, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82142A — Wire, Instrument Panel, NO.2 | ||||
| 82140-47010 |
Wire, Instrument Panel, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82149A — Wire, Instrument Panel, NO.5 | ||||
| 82149-30011 |
Wire, Instrument Panel, NO.5
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-53060 |
Holder, Connector NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82671 — Block, Junction | ||||
| 82671-30400 |
Block, Junction
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817L — Protector, Wiring Harness, NO.11 | ||||
| 82817-33820 |
Protector, Wiring Harness, NO.11
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
