Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

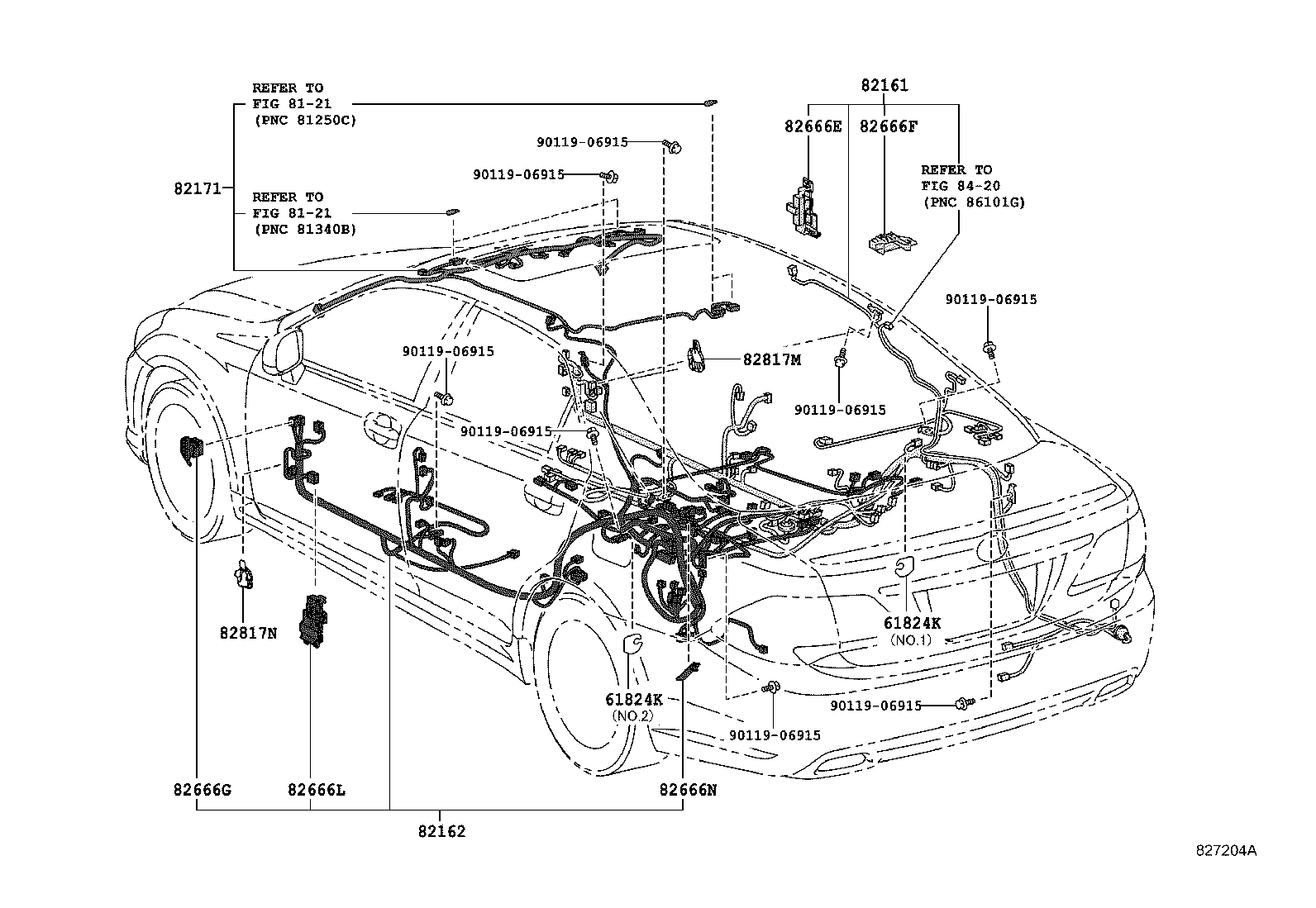

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 61824K — Plate, Noise Control, NO.1 | ||||
| 61824-30090 note |
Plate, Noise Control, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61824-30140 note |
Plate, Noise Control, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82161 — Wire, Floor | ||||
| 82161-30M61 |
Wire, Floor
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-30D40 |
Wire, Floor, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-30E30 |
Wire, Roof, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-30A10 |
Holder, Connector NO.6
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666F — Holder, Connector NO.7 | ||||
| 82666-30A20 |
Holder, Connector NO.7
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666G — Holder, Connector NO.8 | ||||
| 82666-30890 |
Holder, Connector NO.8
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-30A00 |
Holder, Connector NO.9
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82666N — Holder, Connector NO.10 | ||||
| 82666-60310 |
Holder, Connector NO.10
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-30N30 |
Protector, Wiring Harness, NO.12
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-30N40 |
Protector, Wiring Harness, NO.13
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
