Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

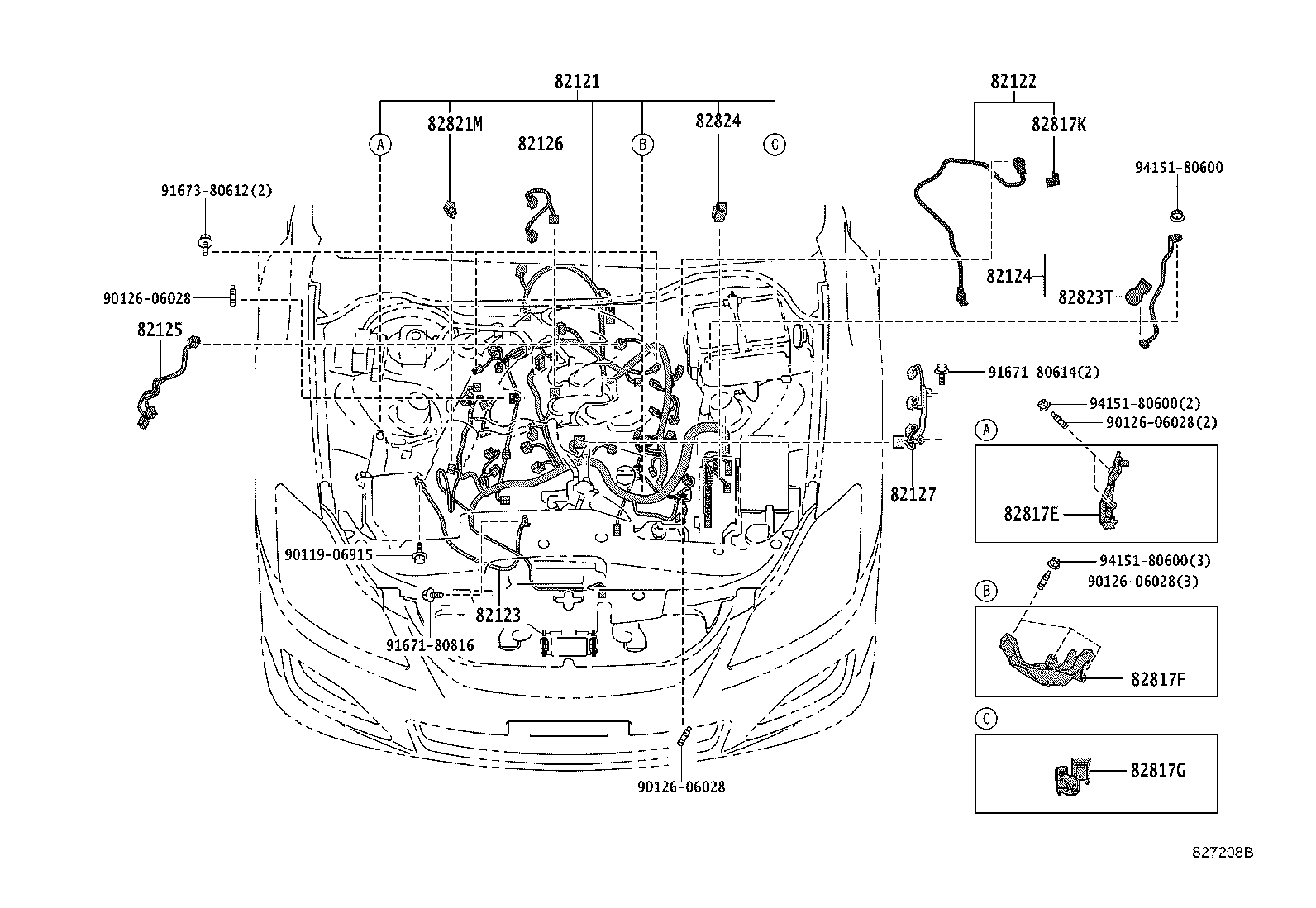

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-30E80 |
Wire, Engine
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-30A00 |
Wire, Engine, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-30490 |
Wire, Engine, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-30290 |
Wire, Engine, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82125 — Wire, Transmission | ||||
| 82125-30530 |
Wire, Transmission
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82126 — Wire, Engine | ||||
| 82126-30030 |
Wire, Engine
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82127 — Wire, Differential | ||||
| 82127-30030 |
Wire, Differential
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-2A730 |
Protector, Wiring Harness, NO.6
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-30A80 |
Protector, Wiring Harness, NO.7
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-30M90 |
Protector, Wiring Harness, NO.8
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-12860 |
Protector, Wiring Harness, NO.10
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82821M — Cover, Connector | ||||
| 82821-50500 |
Cover, Connector
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-52010 |
Cap, Alternator Terminal
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-50360 |
Connector, Wiring Harness
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
