Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

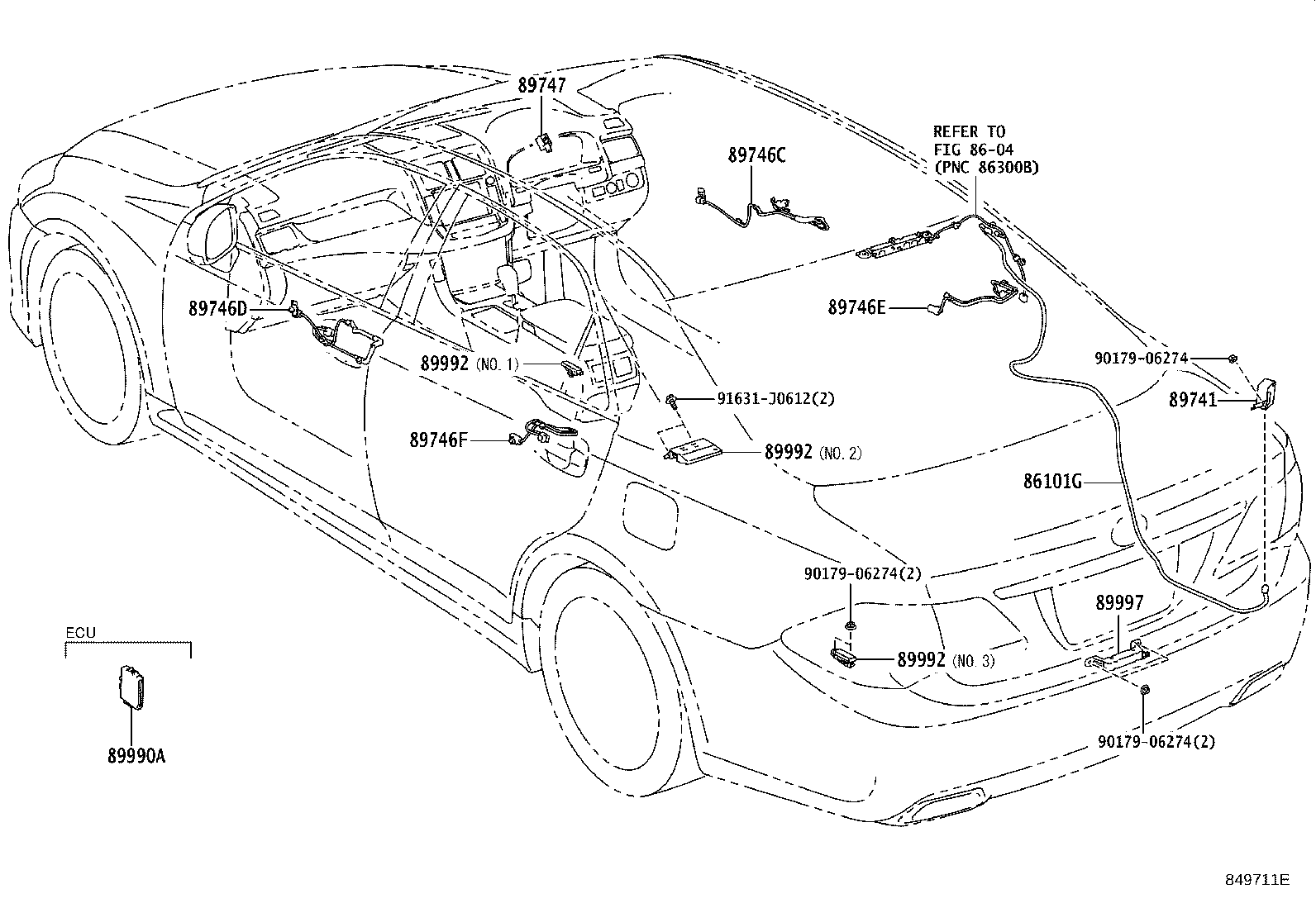

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101G — Cord Sub-assy, Antenna | ||||
| 86101-30C00 |
Cord Sub-assy, Antenna
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89741 — Receiver, Door Control | ||||
| 89740-30250 |
Receiver, Door Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89740-30260 note |
Receiver, Door Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89746C — Harness, Electrical Key Wire, NO.1 | ||||
| 89746-30180 |
Harness, Electrical Key Wire, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89746D — Harness, Electrical Key Wire, NO.2 | ||||
| 89746-30190 |
Harness, Electrical Key Wire, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89746E — Harness, Electrical Key Wire, NO.3 | ||||
| 82157-30020 |
Harness, Electrical Key Wire, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89746F — Harness, Electrical Key Wire, NO.4 | ||||
| 82158-30020 |
Harness, Electrical Key Wire, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-30230 |
Computer Assy, Smart Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89992 — Oscillator, Indoor Electrical Key | ||||
| 89992-30050 note |
Oscillator, Indoor Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89992-30070 note |
Oscillator, Indoor Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 899A0-22010 note |
Oscillator, Indoor Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30070 |
Antenna, Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
