Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

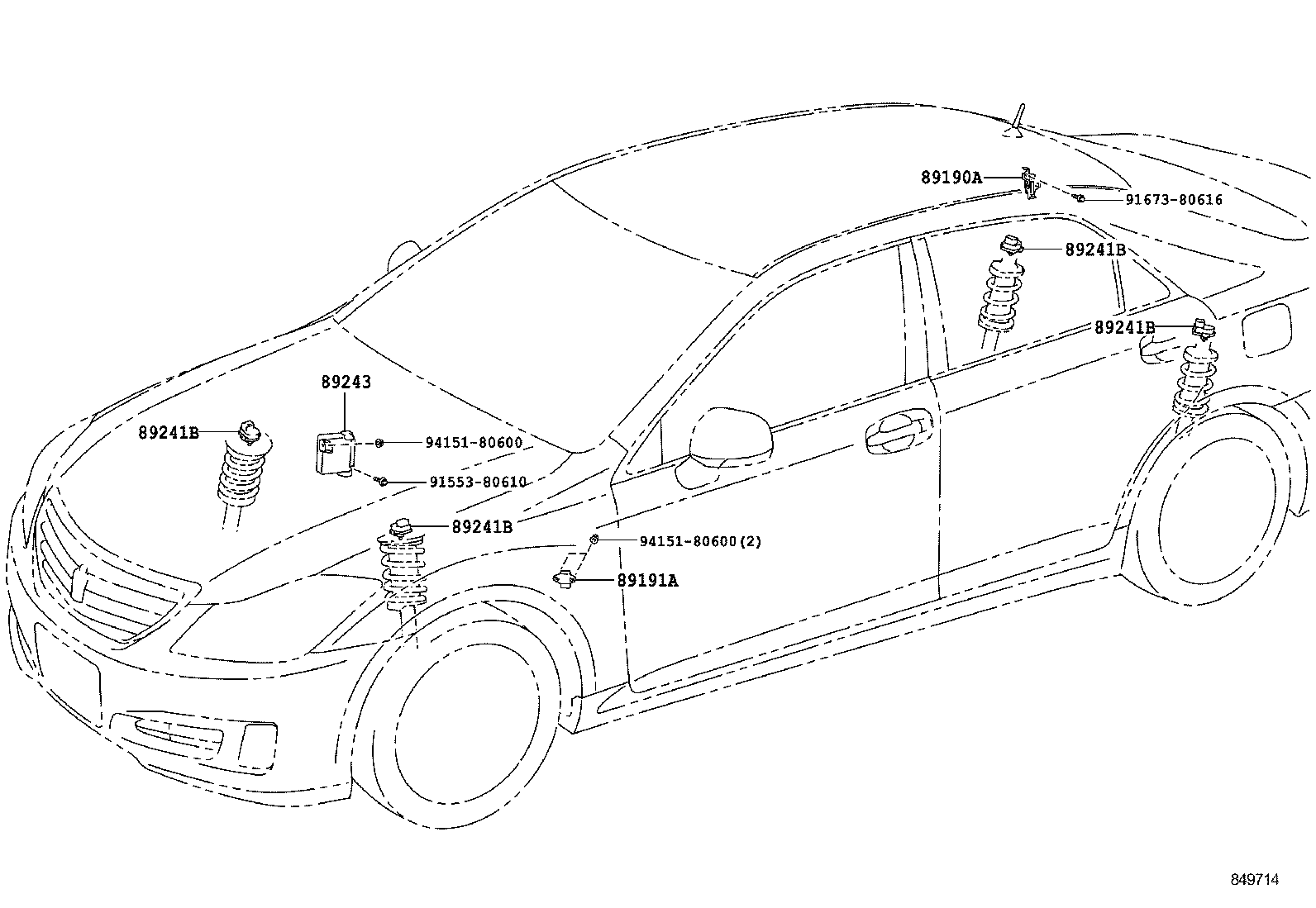

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89190A — Sensor Assy, Acceleration | ||||
| 89190-30050 |
Sensor Assy, Acceleration
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89191A — Sensor, Acceleration | ||||
| 89191-22020 |
Sensor, Acceleration
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89241B — Actuator, Absorber Control | ||||
| 89241-30040 |
Actuator, Absorber Control
2010-09 → 2011-02
ended
|
GRS202 | — | |
| 89241-30041 |
Actuator, Absorber Control
2011-03 → 2012-12
ended
|
GRS202 | — | |
| 89243 — Computer, Absorber Control | ||||
| 89243-30161 |
Computer, Absorber Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
