Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

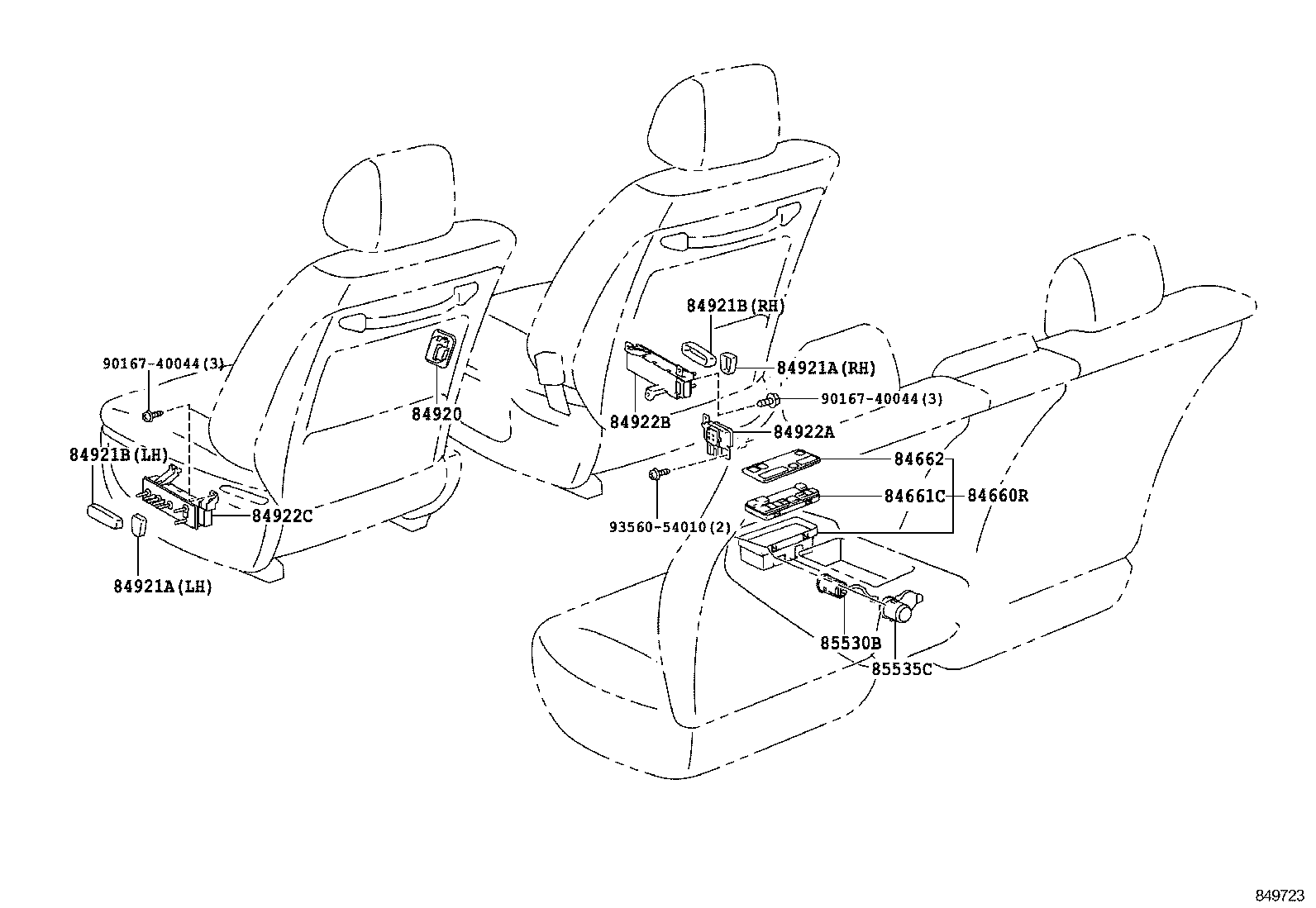

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84660R — Switch, Cooler(REAR) | ||||
| 84660-30370 |
Switch, Cooler(REAR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84661C — Knob, Cooler Control Switch | ||||
| 84661-30140 |
Knob, Cooler Control Switch
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84662 — Panel, Cooler Control Switch | ||||
| 84662-30040 |
Panel, Cooler Control Switch
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84920 — Switch Assy, Power Seat | ||||
| 84920-30221-A3 note |
Switch Assy, Power Seat
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84920-30221-B2 note |
Switch Assy, Power Seat
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921A — Knob, Power Seat Switch (FOR RECLINING) | ||||
| 84921-60110-A2 note |
Knob, Power Seat Switch (FOR RECLINING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60110-B4 note |
Knob, Power Seat Switch (FOR RECLINING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60120-A3 note |
Knob, Power Seat Switch (FOR RECLINING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60120-B6 note |
Knob, Power Seat Switch (FOR RECLINING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921B — Knob, Power Seat Switch (FOR SLIDE & VERTICAL) | ||||
| 84921-60070-A2 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60070-B2 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60100-A2 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84921-60100-B4 note |
Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84922A — Switch, Front Power Seat(FOR LUMBAR) | ||||
| 84920-30240-A1 note |
Switch, Front Power Seat(FOR LUMBAR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84920-30240-B1 note |
Switch, Front Power Seat(FOR LUMBAR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84922B — Switch, Front Power Seat, RH | ||||
| 84070-48050 |
Switch, Front Power Seat, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84922C — Switch, Front Power Seat, LH | ||||
| 84922-60110 |
Switch, Front Power Seat, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85530B — Socket Assy, Power Outlet, Rear NO.1 | ||||
| 85530-30040 |
Socket Assy, Power Outlet, Rear NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85535C — Cover, Power Outlet Socket, Rear | ||||
| 85535-30020 |
Cover, Power Outlet Socket, Rear
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
