Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01

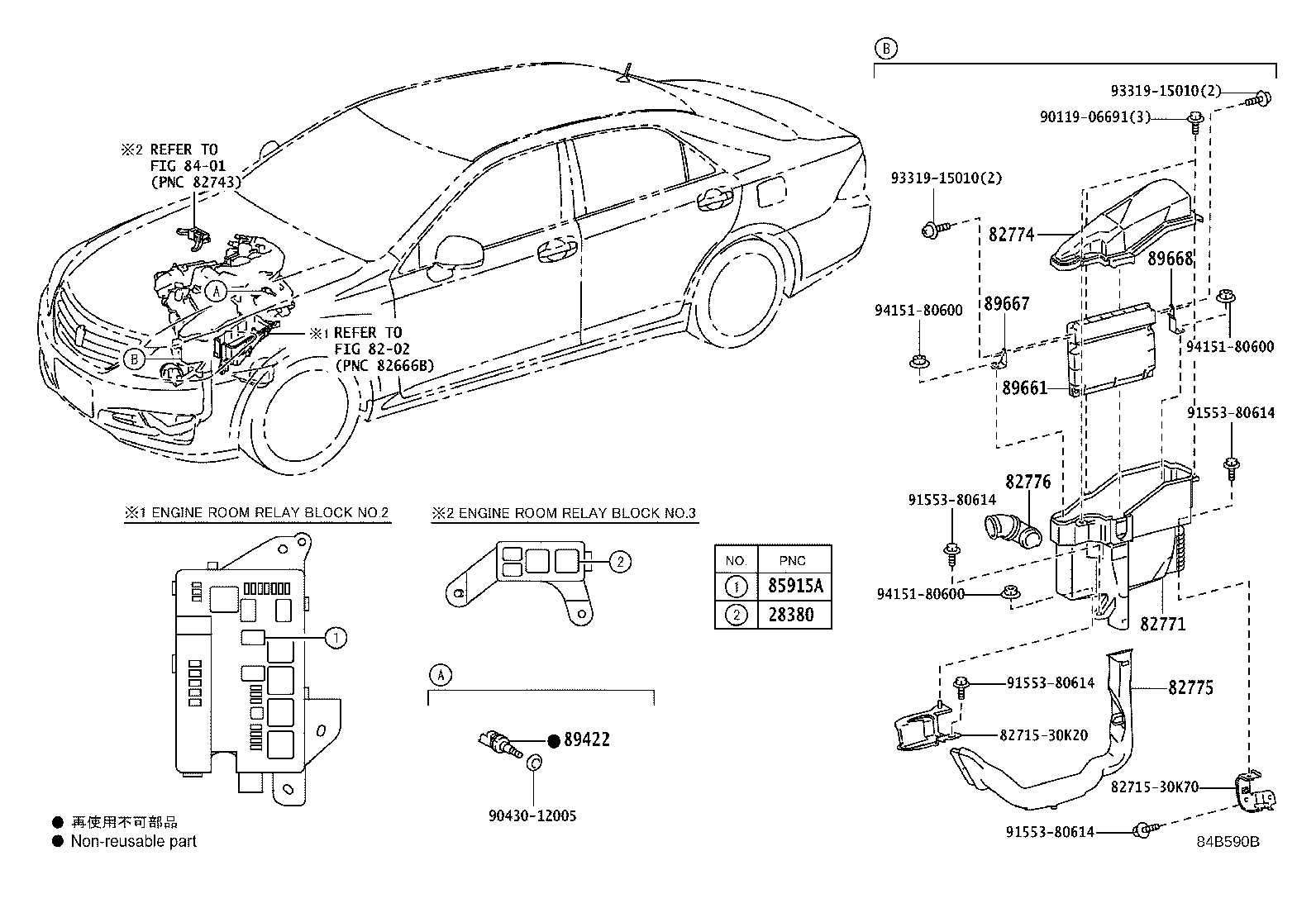

Exploded illustration 84B590B 82776 — DUCT, ENGINE ROOM ECU OUTLET (1 parts) 89661 — COMPUTER, ENGINE CONTROL (2 parts) 82771 — BOX, ENGINE ROOM ECU (1 parts) 82774 — COVER, ENGINE ROOM ECU (1 parts) 89668 — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (1 parts) 89667 — BRACKET, ENGINE CONTROL COMPUTER (1 parts) 82775 — DUCT, ENGINE ROOM ECU INLET (1 parts) 9331915010 — not listed in this catalogue 9415180600 — not listed in this catalogue 8271530K70 — not listed in this catalogue 9415180600 — not listed in this catalogue 9155380614 — not listed in this catalogue 9415180600 — not listed in this catalogue 9011906691 — not listed in this catalogue 9155380614 — not listed in this catalogue 9155380614 — not listed in this catalogue 9155380614 — not listed in this catalogue 8271530K20 — not listed in this catalogue 9331915010 — not listed in this catalogue 89422 — SENSOR, WATER TEMPERATURE (FOR E.F.I.) (1 parts) 9043012005 — not listed in this catalogue 8401 — not listed in this catalogue 28380 — RELAY ASSY, FUEL PUMP (1 parts) 85915A — RELAY, MAIN (1 parts) 8202 — not listed in this catalogue
84B590B · 10 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
11 parts on this figure
Part number Description Fitment Price
28380 — Relay Assy, Fuel Pump
90987-03003 Relay Assy, Fuel Pump
2010-09 → 2012-12 ended
3GRFE GRS202 —
82771 — Box, Engine Room Ecu
82771-30060 Box, Engine Room Ecu
2010-09 → 2012-12 ended
GRS202 —
82774 — Cover, Engine Room Ecu
82774-30060 Cover, Engine Room Ecu
2010-09 → 2012-12 ended
GRS202 —
82775 — Duct, Engine Room Ecu Inlet
82775-30060 Duct, Engine Room Ecu Inlet
2010-09 → 2012-12 ended
GRS202 —
82776 — Duct, Engine Room Ecu Outlet
82776-30120 Duct, Engine Room Ecu Outlet
2010-09 → 2012-12 ended
GRS202 —
85915A — Relay, Main
90987-02027 Relay, Main
2010-09 → 2012-12 ended
GRS202 —
89422 — Sensor, Water Temperature (FOR E.F.I.)
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2010-09 → 2012-12 ended
GRS202 —
89661 — Computer, Engine Control
89661-30Q70 Computer, Engine Control
2010-09 → 2012-12 ended
GRS202 —
89661-30Q80 note Computer, Engine Control
2010-09 → 2012-12 ended
GRS202 —
89667 — Bracket, Engine Control Computer
89667-30300 Bracket, Engine Control Computer
2010-09 → 2012-12 ended
GRS202 —
89668 — Bracket, Engine Control Computer, NO.2
89668-30280 Bracket, Engine Control Computer, NO.2
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
