Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

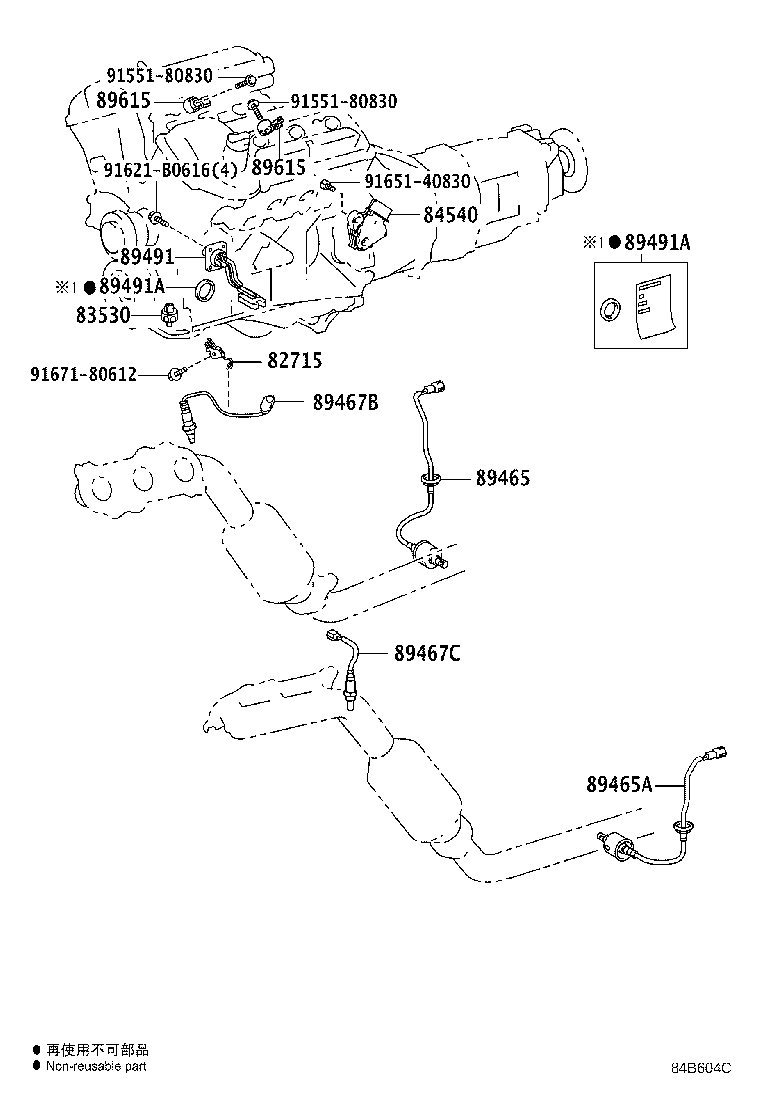

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82715 — Bracket,Wiring Harness Clamp | ||||
| 82715-22850 |
Bracket,Wiring Harness Clamp
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-71010 |
Switch Assy, Neutral Start
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-30730 |
Sensor, Oxygen
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89465A — Sensor, Oxygen NO.2 | ||||
| 89465-30730 |
Sensor, Oxygen NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-22050 |
Sensor, Air Fuel Ratio
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-22040 |
Sensor, Air Fuel Ratio, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-30060 |
Sensor, Engine Oil Level
2010-09 → 2011-08
ended
|
GRS202 | — | |
| 89491-30061 |
Sensor, Engine Oil Level
2011-09 → 2012-12
ended
|
GRS202 | — | |
| 89491A — Gasket, Engine Oil Level Sensor | ||||
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
