Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

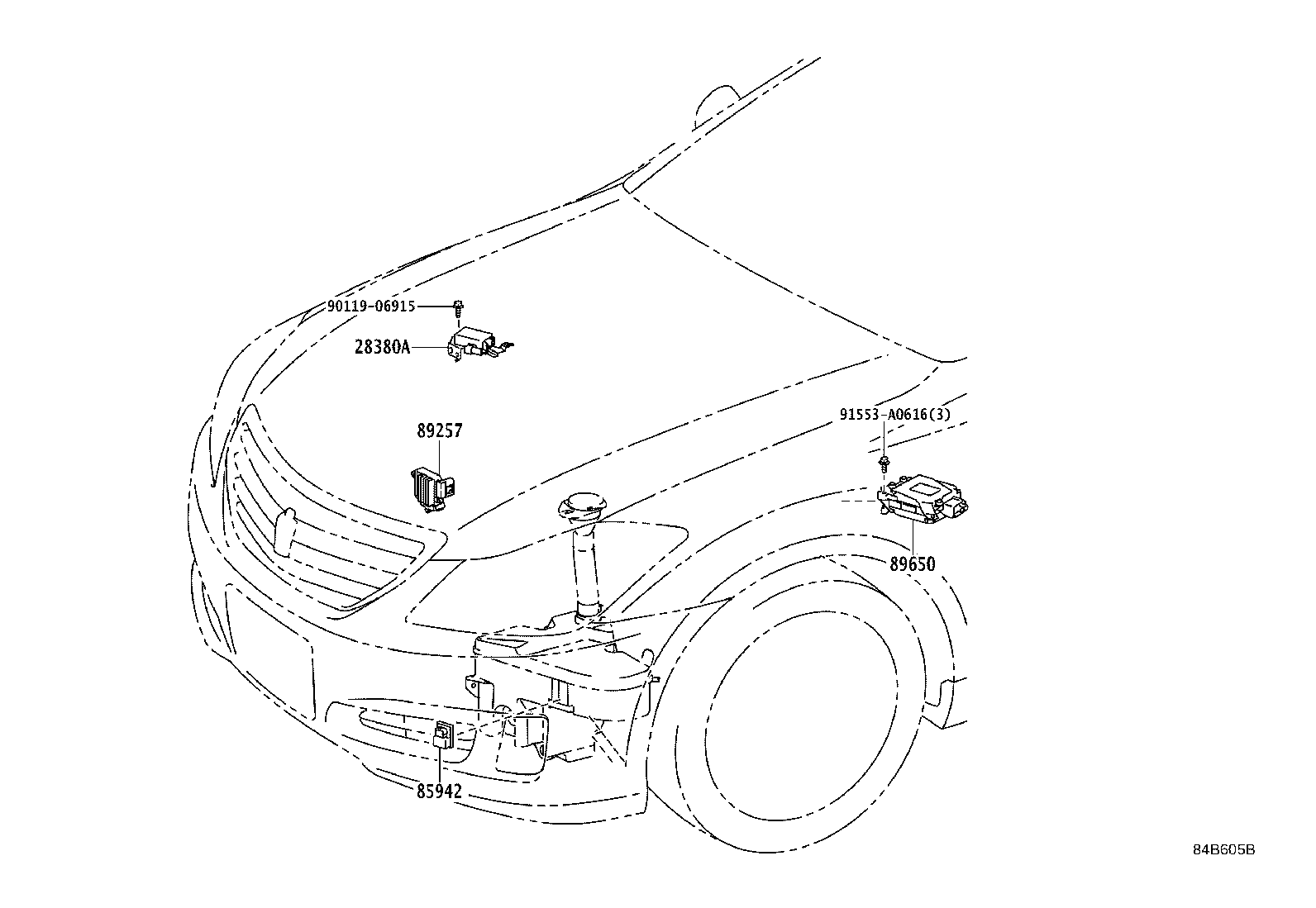

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380A — Resister, Fuel Pump | ||||
| 23080-31040 |
Resister, Fuel Pump
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-58010 |
Relay, Headlamp Cleaner Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-30060 |
Computer, Cooling Fan
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-30831 |
Computer Assy, Power Steering
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 89650-30832 |
Computer Assy, Power Steering
2011-12 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
