Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

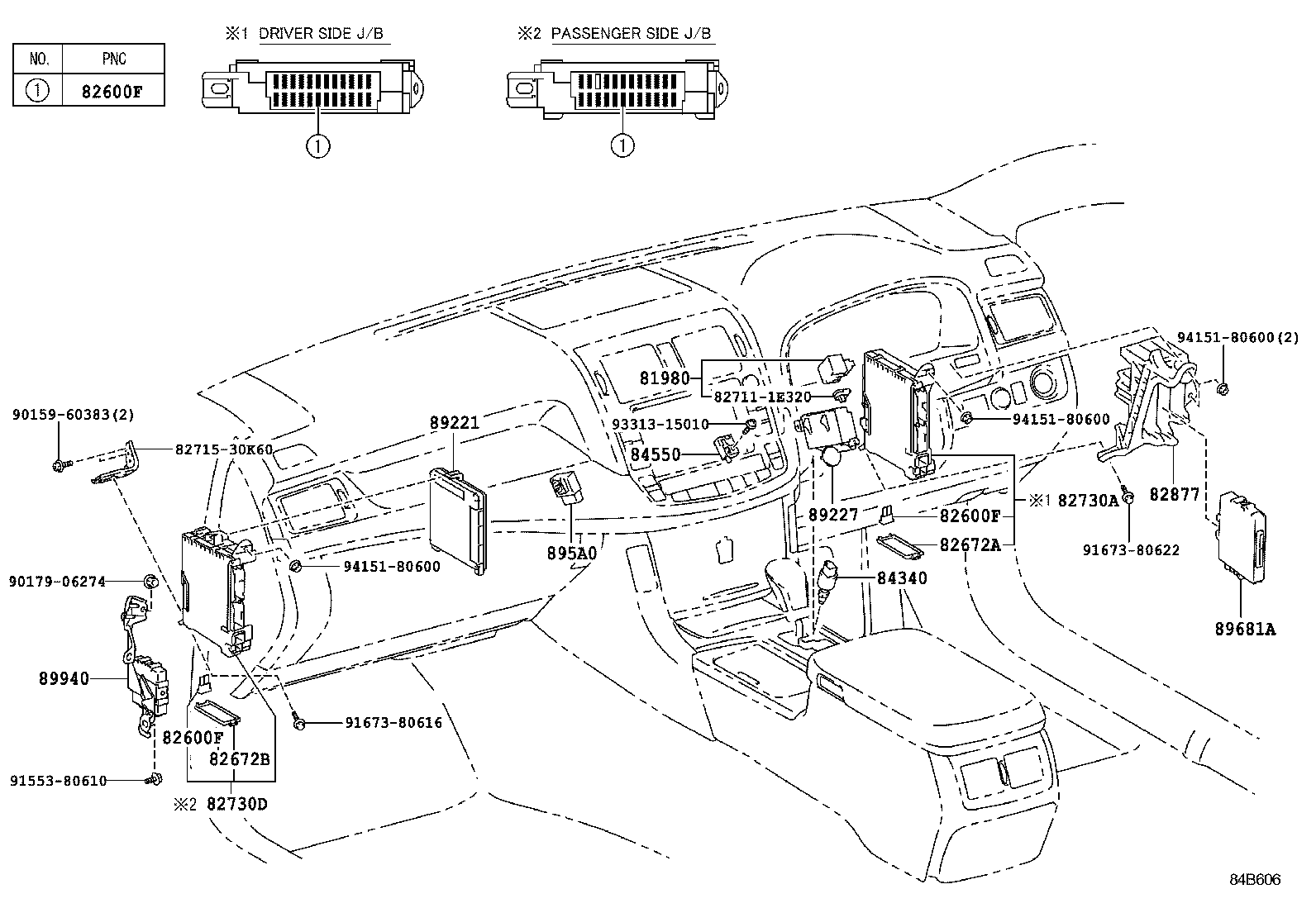

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-30170 |
Flasher Assy, Turn Signal
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09020 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09021 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09022 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09023 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09024 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09025 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-30270 |
Cover, Junction Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82672B — Cover, Junction Block | ||||
| 82672-30280 |
Cover, Junction Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82730A — Block Assy, Driver Side Junction | ||||
| 82730-30G20 |
Block Assy, Driver Side Junction
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82730D — Block Assy, Passenger Side Junction | ||||
| 82730-30G30 |
Block Assy, Passenger Side Junction
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82877 — Box, Computer Integration, RH | ||||
| 82877-30010 |
Box, Computer Integration, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-30110 |
Switch Assy, Stop Lamp
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-30080 |
Switch Assy, Parking Brake
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89220-30370 |
Computer, Multiplex Network Body
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89227 — Computer, Multiplex Tilt & Telescopic | ||||
| 89227-30050 |
Computer, Multiplex Tilt & Telescopic
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 895A0 — Relay Assy, Stop Lamp Control | ||||
| 895A0-30010 |
Relay Assy, Stop Lamp Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89681A — Computer, Power Management Control | ||||
| 89681-60020 note |
Computer, Power Management Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89940 — Computer Assy, Headlamp Swivel | ||||
| 89940-30140 |
Computer Assy, Headlamp Swivel
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
