Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

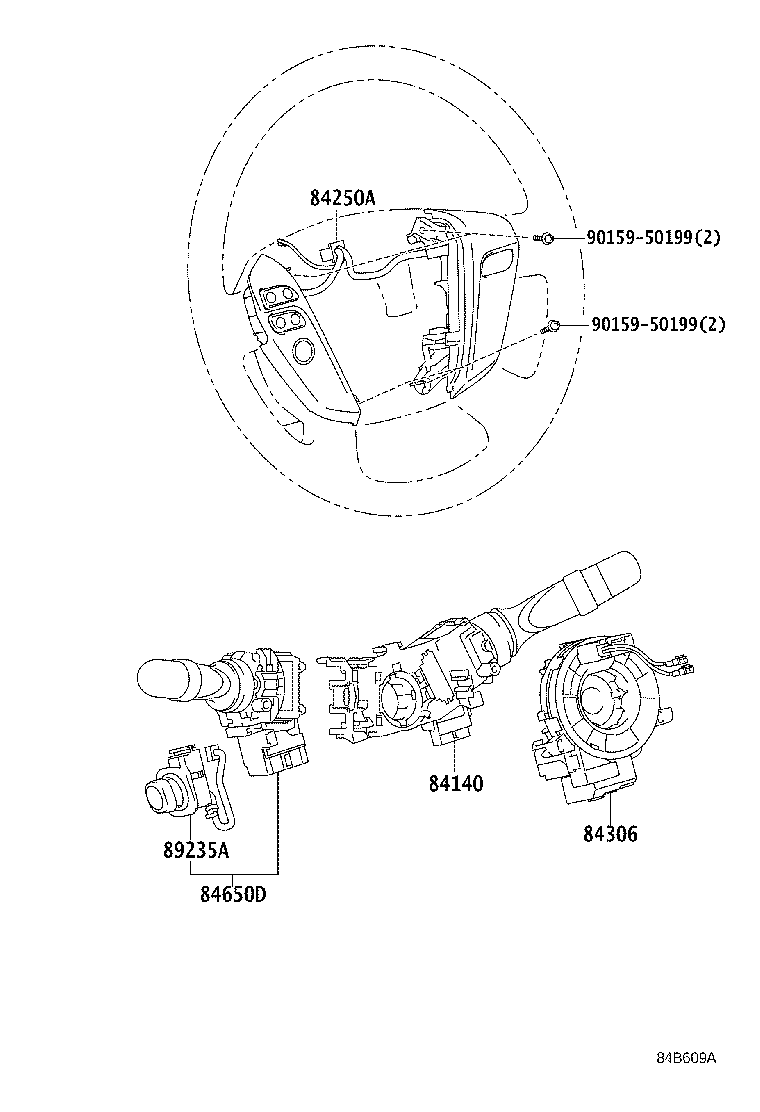

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-42080 |
Switch Assy, Headlamp Dimmer
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-30480 |
Switch Assy, Steering Pad
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84307-30090 |
Cable Sub-assy, Spiral
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-30600 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89235A — Switch, Tilt & Telescopic | ||||
| 89235-30120 |
Switch, Tilt & Telescopic
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
