Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

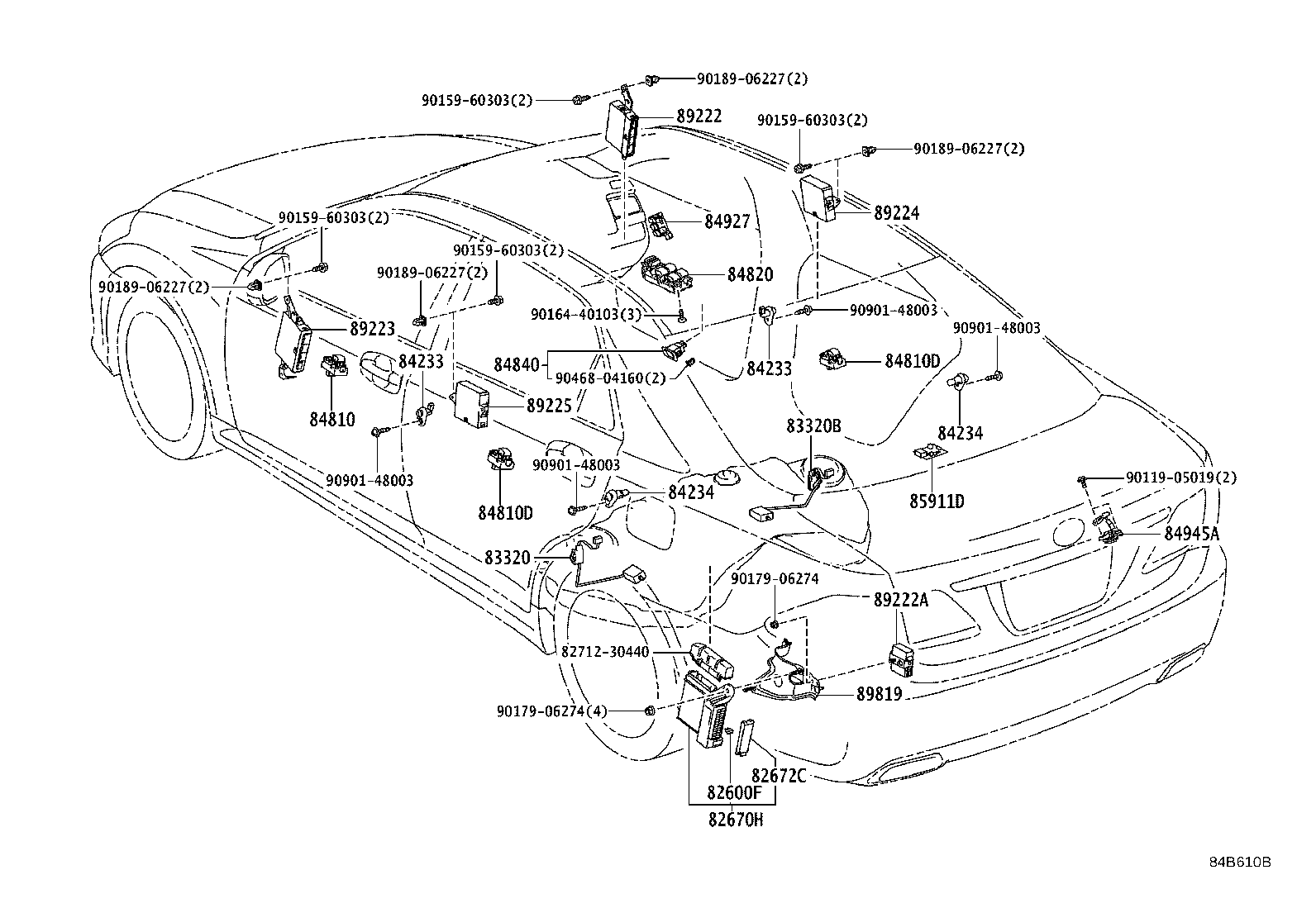

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09020 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09021 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09022 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09023 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09024 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 90982-09025 note |
Fuse, Fuse Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82670H — Block Assy, Luggage Room Junction | ||||
| 82670-30300 |
Block Assy, Luggage Room Junction
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 82672C — Cover, Junction Block | ||||
| 82672-30290 |
Cover, Junction Block
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-30530 |
Gage Assy, Fuel Sender
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 83320B — Gage Assy, Fuel Sender, NO.2 | ||||
| 83320-30540 |
Gage Assy, Fuel Sender, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-30380 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-33120 |
Switch Assy, Power Window Regulator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-33120 |
Switch Assy, Power Window Regulator, Rear
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84040-33080 |
Master Switch Assy, Power Window Regulator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-30140-A2 note |
Switch Assy, Luggage Compartment Door Opening
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84840-30140-B6 note |
Switch Assy, Luggage Compartment Door Opening
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84927 — Switch, Seat Memory | ||||
| 84927-30080-A0 note |
Switch, Seat Memory
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84927-30080-B0 note |
Switch, Seat Memory
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 84945A — Switch, Luggage Electrical Key | ||||
| 84945-30010 |
Switch, Luggage Electrical Key
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85911D — Relay, Rear Sunshade | ||||
| 85911-30020 |
Relay, Rear Sunshade
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89222 — Computer, Multiplex Network Door, Front RH | ||||
| 89222-30230 |
Computer, Multiplex Network Door, Front RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89222A — Computer, Multiplex Network Door | ||||
| 89222-30161 |
Computer, Multiplex Network Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89223 — Computer, Multiplex Network Door, Front LH | ||||
| 89223-30100 |
Computer, Multiplex Network Door, Front LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89224 — Computer, Multiplex Network Door, Rear RH | ||||
| 89224-30120 |
Computer, Multiplex Network Door, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89225 — Computer, Multiplex Network Door, Rear LH | ||||
| 89225-30060 |
Computer, Multiplex Network Door, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89819 — Bracket, Seat Belt Control | ||||
| 89819-30020 |
Bracket, Seat Belt Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
