Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

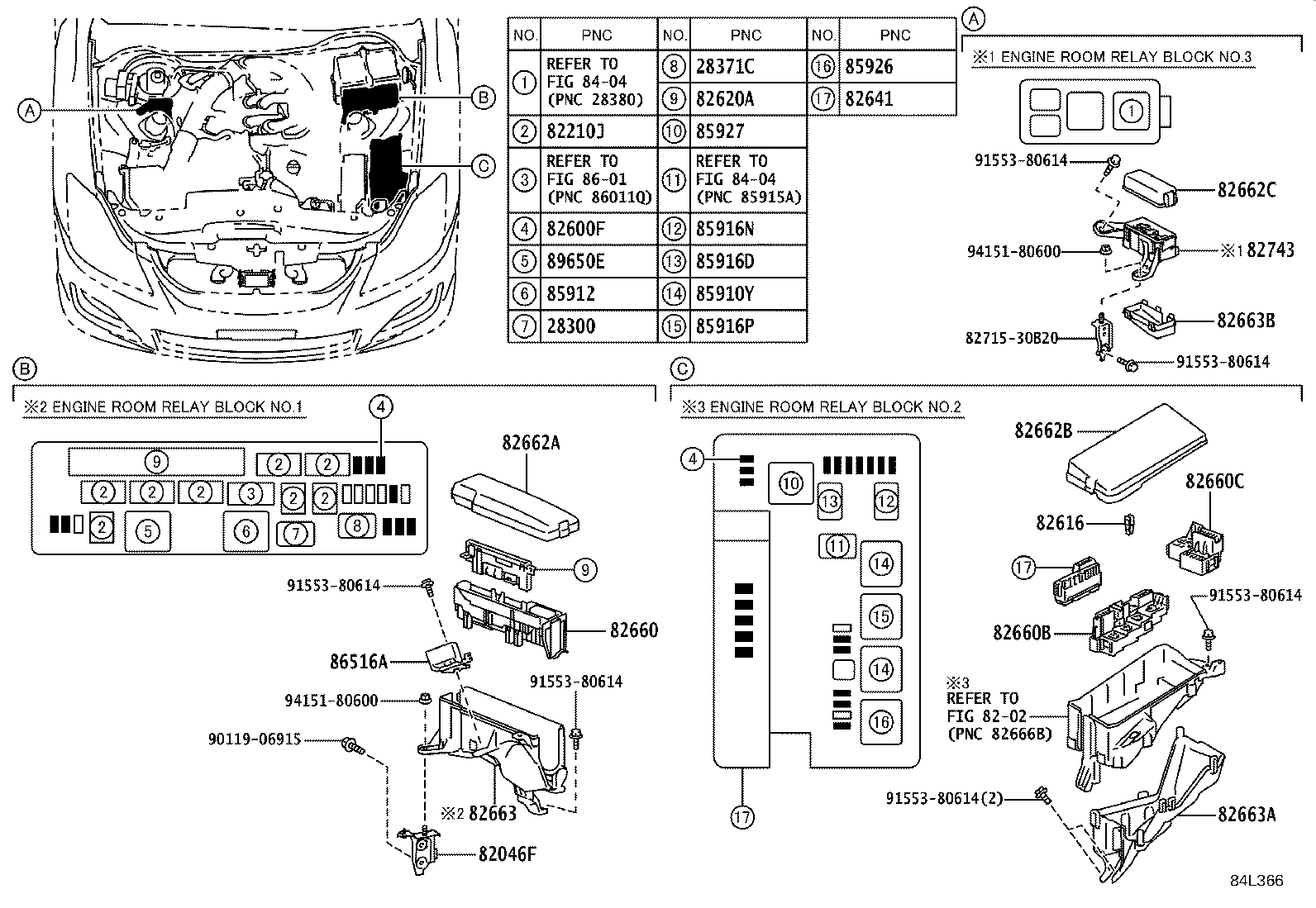

Exploded illustration 84L366 8404 — not listed in this catalogue 82743 — BLOCK, ENGINE ROOM RELAY, NO.3 (1 parts) 82663B — COVER, RELAY BLOCK, LOWER, NO.3 (1 parts) 82662C — COVER, RELAY BLOCK, UPPER, NO.3 (1 parts) 9415180600 — not listed in this catalogue 8271530B20 — not listed in this catalogue 9155380614 — not listed in this catalogue 9155380614 — not listed in this catalogue 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (1 parts) 82660 — BLOCK ASSY, RELAY, ENGINE ROOM (1 parts) 82663 — COVER, RELAY BLOCK, LOWER (1 parts) 86516A — CONDENSER (1 parts) 82046F — WIRE SUB-ASSY, BODY GROUND, NO.1 (1 parts) 9011906915 — not listed in this catalogue 9155380614 — not listed in this catalogue 9155380614 — not listed in this catalogue 9415180600 — not listed in this catalogue 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (1 parts) 82616 — PULLER, FUSE (1 parts) 82660C — BLOCK ASSY, RELAY (1 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (1 parts) 82660B — BLOCK ASSY, RELAY (1 parts) 9155380614 — not listed in this catalogue 9155380614 — not listed in this catalogue 85927 — RELAY, COOLING FAN (1 parts) 82210J — FUSIBLE LINK (5 parts) 82600F — FUSE, FUSE BLOCK (7 parts) 89650E — RELAY, ELECTRIC POWER STEERING (1 parts) 85912 — RELAY, DEFOGGER (1 parts) 28300 — RELAY ASSY, STARTER (1 parts) 28371C — RELAY, IGNITION, NO.2 (1 parts) 85916N — RELAY, TAILLAMP (1 parts) 85916D — RELAY, FOG LAMP (1 parts) 85910Y — RELAY, REAR HEATER (1 parts) 85916P — RELAY, HEADLAMP (1 parts) 85926 — RELAY, HEADLAMP DIMMER (1 parts) 82641 — RELAY, INTEGRATION NO.1 (1 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (1 parts) 8601 — not listed in this catalogue 8404 — not listed in this catalogue 8202 — not listed in this catalogue
84L366 · 27 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-28010 Relay Assy, Starter
2010-09 → 2012-12 ended
3GRFE GRS202 —
28371C — Relay, Ignition, NO.2
90987-02027 Relay, Ignition, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
82046F — Wire Sub-assy, Body Ground, NO.1
82046-30100 Wire Sub-assy, Body Ground, NO.1
2010-09 → 2012-12 ended
GRS202 —
82210J — Fusible Link
90982-08299 note Fusible Link
2010-09 → 2012-12 ended
GRS202 —
90982-08300 note Fusible Link
2010-09 → 2012-12 ended
GRS202 —
90982-08302 note Fusible Link
2010-09 → 2012-12 ended
GRS202 —
90982-08304 note Fusible Link
2010-09 → 2012-12 ended
GRS202 —
90982-08305 note Fusible Link
2010-09 → 2012-12 ended
GRS202 —
82600F — Fuse, Fuse Block
90982-09019 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09020 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09021 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09022 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09023 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09024 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
90982-09025 note Fuse, Fuse Block
2010-09 → 2012-12 ended
GRS202 —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2010-09 → 2012-12 ended
GRS202 —
82620A — Block Assy, Fusible Link
82620-30210 Block Assy, Fusible Link
2010-09 → 2012-12 ended
GRS202 —
82641 — Relay, Integration NO.1
82641-30310 Relay, Integration NO.1
2010-09 → 2012-12 ended
GRS202 —
82660 — Block Assy, Relay, Engine Room
82660-30A70 Block Assy, Relay, Engine Room
2010-09 → 2012-12 ended
GRS202 —
82660B — Block Assy, Relay
82660-30B00 Block Assy, Relay
2010-09 → 2012-12 ended
GRS202 —
82660C — Block Assy, Relay
82660-30B10 Block Assy, Relay
2010-09 → 2012-12 ended
GRS202 —
82662A — Cover, Relay Block, Upper, NO.1
82662-30821 Cover, Relay Block, Upper, NO.1
2010-09 → 2012-12 ended
GRS202 —
82662B — Cover, Relay Block, Upper, NO.2
82662-30841 Cover, Relay Block, Upper, NO.2
2010-09 → 2012-12 ended
GRS202 —
82662C — Cover, Relay Block, Upper, NO.3
82662-30851 Cover, Relay Block, Upper, NO.3
2010-09 → 2012-12 ended
GRS202 —
82663 — Cover, Relay Block, Lower
82663-30270 Cover, Relay Block, Lower
2010-09 → 2012-12 ended
GRS202 —
82663A — Cover, Relay Block, Lower, NO.2
82663-30290 Cover, Relay Block, Lower, NO.2
2010-09 → 2012-12 ended
GRS202 —
82663B — Cover, Relay Block, Lower, NO.3
82663-30220 Cover, Relay Block, Lower, NO.3
2010-09 → 2012-12 ended
GRS202 —
82743 — Block, Engine Room Relay, NO.3
82743-30080 Block, Engine Room Relay, NO.3
2010-09 → 2012-12 ended
GRS202 —
85910Y — Relay, Rear Heater
90987-02025 Relay, Rear Heater
2010-09 → 2012-12 ended
GRS202 —
85912 — Relay, Defogger
90987-04010 Relay, Defogger
2010-09 → 2012-12 ended
GRS202 —
85916D — Relay, Fog Lamp
90987-02027 Relay, Fog Lamp
2010-09 → 2012-12 ended
GRS202 —
85916N — Relay, Taillamp
90987-02027 Relay, Taillamp
2010-09 → 2012-12 ended
GRS202 —
85916P — Relay, Headlamp
90987-02025 Relay, Headlamp
2010-09 → 2012-12 ended
GRS202 —
85926 — Relay, Headlamp Dimmer
90987-02025 Relay, Headlamp Dimmer
2010-09 → 2012-12 ended
GRS202 —
85927 — Relay, Cooling Fan
90987-02025 Relay, Cooling Fan
2010-09 → 2012-12 ended
GRS202 —
86516A — Condenser
82930-30010 Condenser
2010-09 → 2012-12 ended
GRS202 —
89650E — Relay, Electric Power Steering
90987-02025 Relay, Electric Power Steering
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
