Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

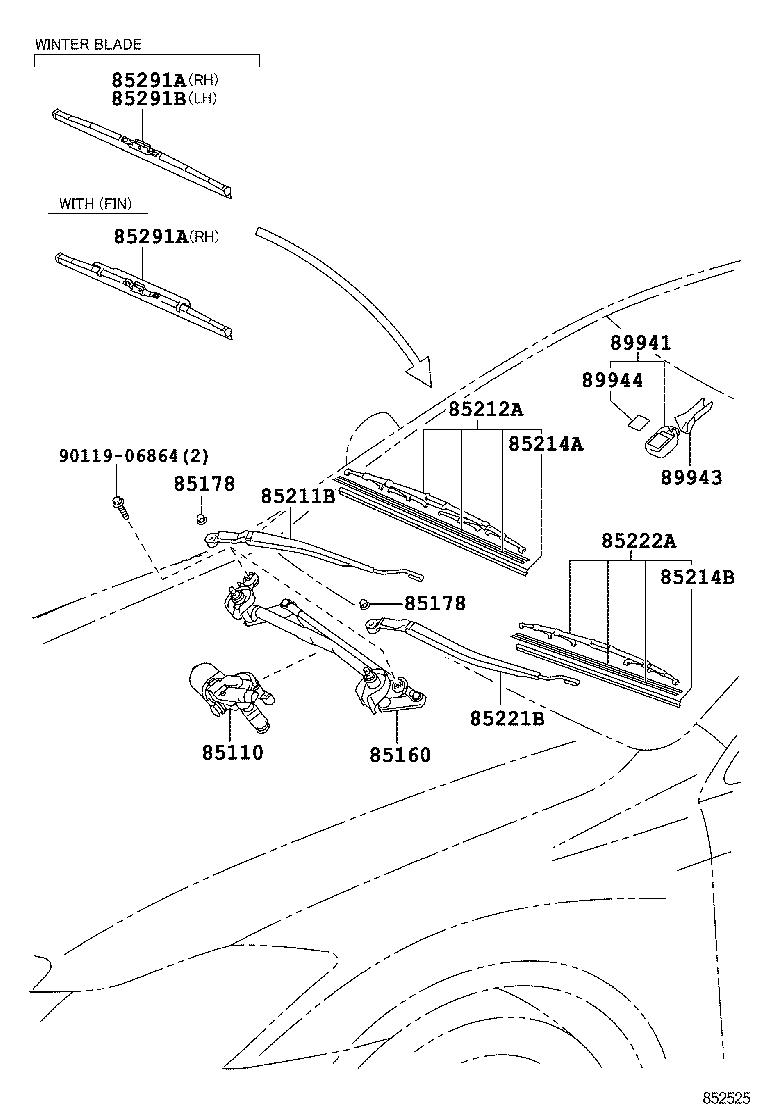

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-22630 |
Motor Assy, Windshield Wiper
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-30710 |
Link Assy, Windshield Wiper
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
Nut (FOR FRONT WIPER ARM SETTING)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-30740 |
Arm, Front Wiper, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-33240 |
Blade, FR Wiper, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-30380 |
Rubber, Wiper, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-30400 |
Rubber, Wiper, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-30640 |
Arm, Front Wiper, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-30590 |
Blade, FR Wiper, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85291A — Blade, Front Wiper, Winter, RH | ||||
| 85291-30060 note |
Blade, Front Wiper, Winter, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85291-50060 |
Blade, Front Wiper, Winter, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85291B — Blade, Front Wiper, Winter, LH | ||||
| 85291-22080 |
Blade, Front Wiper, Winter, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89941 — Sensor, Rain | ||||
| 89941-30020 |
Sensor, Rain
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89943 — Cover, Rain Sensor | ||||
| 89943-22030 |
Cover, Rain Sensor
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 89944 — Tape, Rain Sensor | ||||
| 89944-42010 |
Tape, Rain Sensor
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
