Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

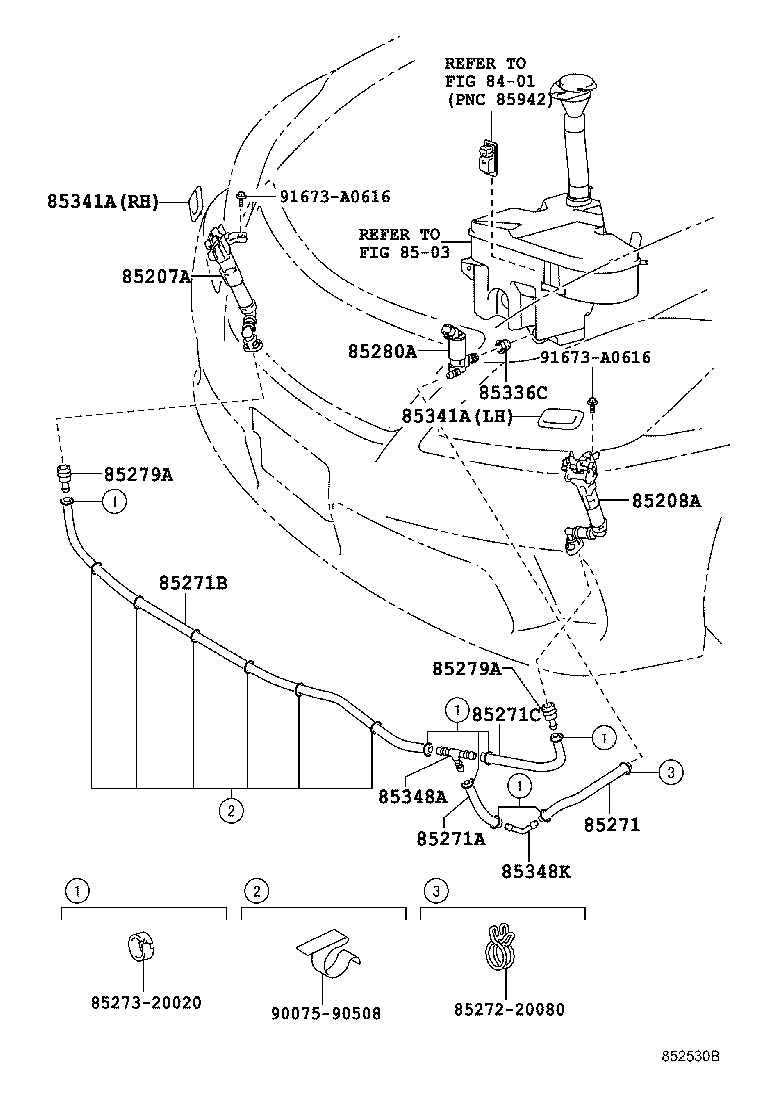

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85207A — Actuator Sub-assy, Headlamp Washer, RH | ||||
| 85207-30050 |
Actuator Sub-assy, Headlamp Washer, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85208A — Actuator Sub-assy, Headlamp Washer, LH | ||||
| 85208-30050 |
Actuator Sub-assy, Headlamp Washer, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85271 — Hose, Headlamp Cleaner, NO.1 | ||||
| 85375-20171 note |
Hose, Headlamp Cleaner, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85271A — Hose, Headlamp Cleaner, NO.2 | ||||
| 90445-14060 note |
Hose, Headlamp Cleaner, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85271B — Hose, Headlamp Cleaner, NO.3 | ||||
| 85275-30040 |
Hose, Headlamp Cleaner, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85271C — Hose, Headlamp Cleaner, NO.4 | ||||
| 85375-32011 note |
Hose, Headlamp Cleaner, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85279A — Joint, Headlamp Cleaner Hose | ||||
| 85279-33040 |
Joint, Headlamp Cleaner Hose
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85280A — Motor And Pump Assy, Headlamp Cleaner | ||||
| 85280-30040 |
Motor And Pump Assy, Headlamp Cleaner
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85336C — Packing, Headlamp Cleaner Motor | ||||
| 90099-32089 |
Packing, Headlamp Cleaner Motor
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85341A — Cover,Headlamp Cleaner Washer Nozzle | ||||
| 85353-30080-A0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85353-30080-B1 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85353-30080-C0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85353-30080-J0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85354-30080-A0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85354-30080-B1 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85354-30080-C0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85354-30080-J0 note |
Cover,Headlamp Cleaner Washer Nozzle
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85348A — Joint, Headlamp Cleaner Hose, NO.1 | ||||
| 85352-12010 |
Joint, Headlamp Cleaner Hose, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 85348K — Joint, Headlamp Cleaner Elbow, NO.1 | ||||
| 85379-22080 |
Joint, Headlamp Cleaner Elbow, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
