Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

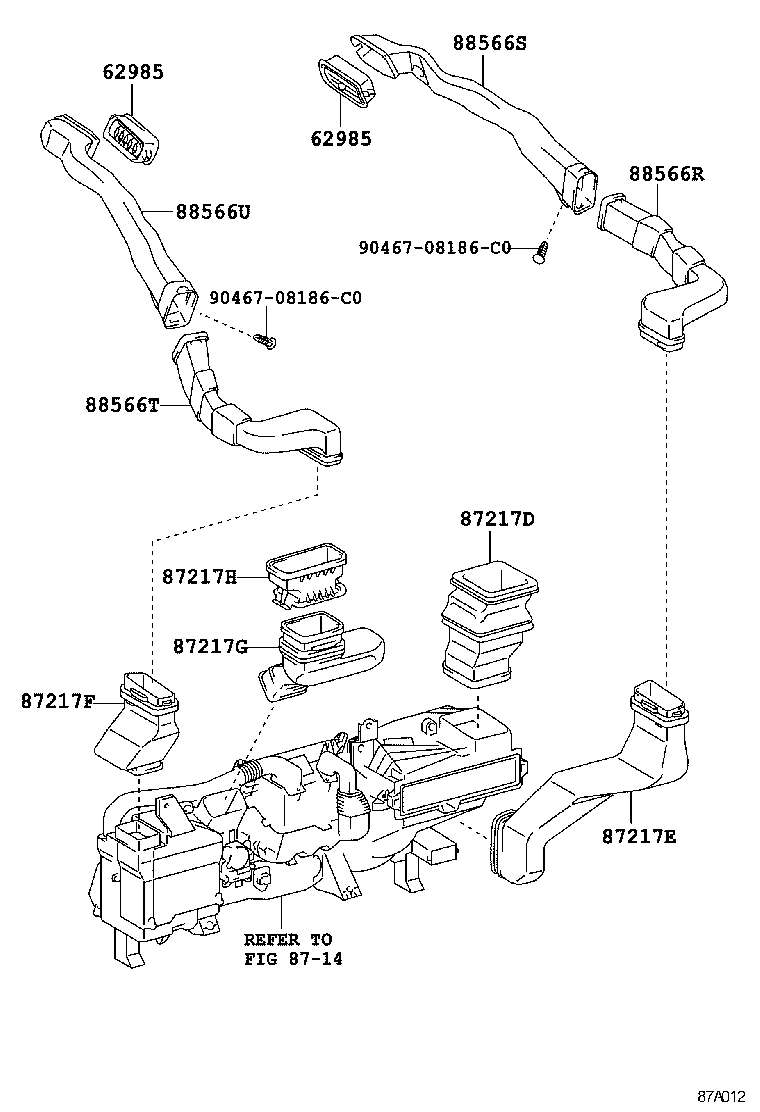

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62985 — Register, Roof Side Air Outlet | ||||
| 62985-30080-A0 note |
Register, Roof Side Air Outlet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62985-30080-B0 note |
Register, Roof Side Air Outlet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87217D — Duct, Air, Rear Side NO.1 | ||||
| 87211-30520 |
Duct, Air, Rear Side NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87217E — Duct, Air, Rear Side NO.2 | ||||
| 87211-30530 |
Duct, Air, Rear Side NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87217F — Duct, Air, Rear Side NO.3 | ||||
| 87211-30540 |
Duct, Air, Rear Side NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87217G — Duct, Air, Rear Side NO.4 | ||||
| 87211-30550 |
Duct, Air, Rear Side NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87217H — Duct, Air, Rear Side NO.5 | ||||
| 87211-30560 |
Duct, Air, Rear Side NO.5
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88566R — Duct, Air, Rear Roof NO.1 | ||||
| 62973-30110 |
Duct, Air, Rear Roof NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88566S — Duct, Air, Rear Roof NO.2 | ||||
| 62971-30170 |
Duct, Air, Rear Roof NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88566T — Duct, Air, Rear Roof NO.3 | ||||
| 62974-30110 |
Duct, Air, Rear Roof NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88566U — Duct, Air, Rear Roof NO.4 | ||||
| 62972-30170 |
Duct, Air, Rear Roof NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
