Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

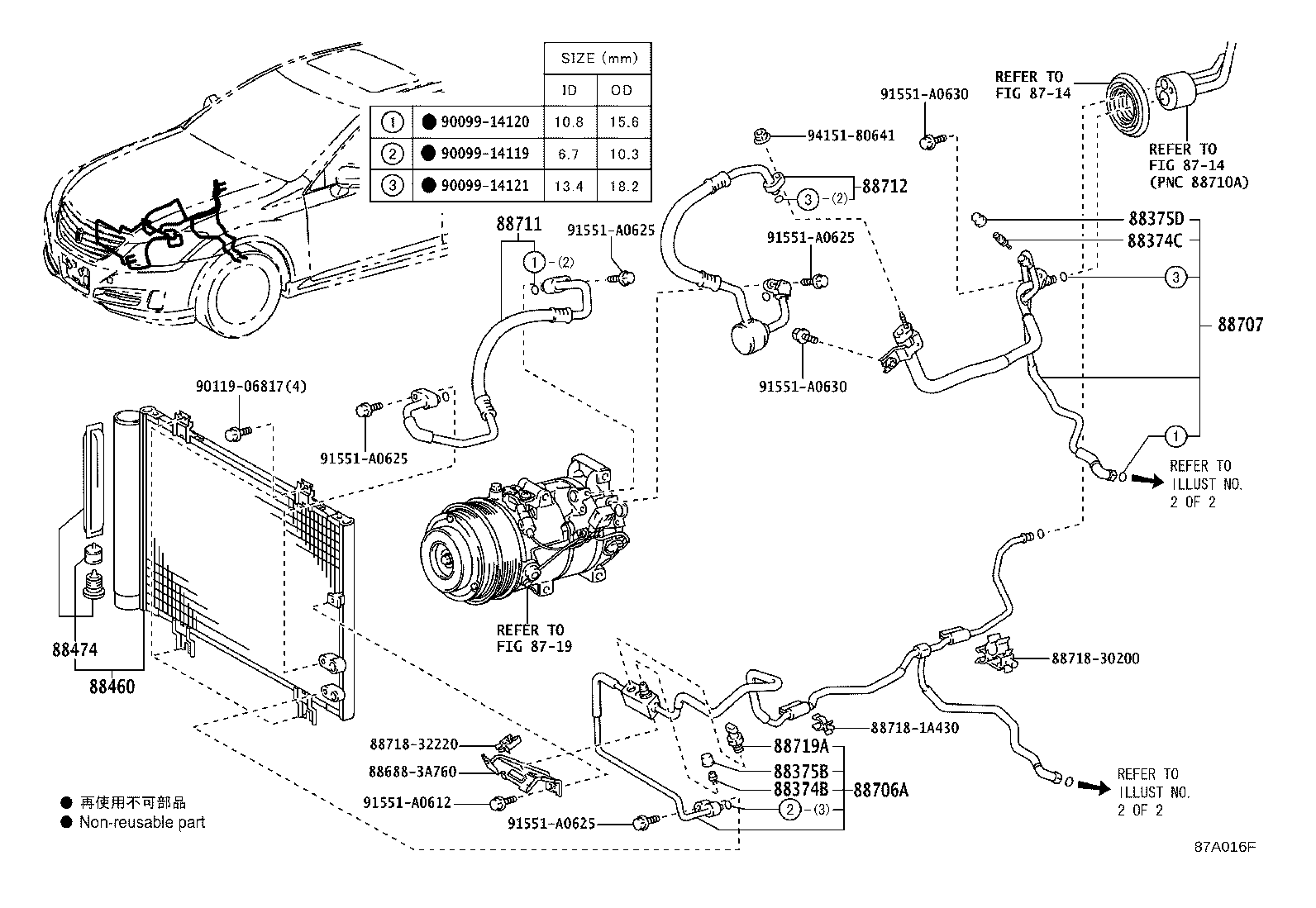

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-30010 |
Valve, Service, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30280 |
Cap, Service Valve, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-30290 |
Cap, Service Valve, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-30A80 |
Condenser Assy, Cooler
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-17010 |
Dryer, Cooler
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88706A — Tube Sub-assy, Liquid, A | ||||
| 88706-3A500 |
Tube Sub-assy, Liquid, A
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-30850 |
Pipe Sub-assy, Suction
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-3A650 |
Hose, Cooler Refrigerant Discharge, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-30240 |
Hose, Cooler Refrigerant Suction, NO.1
2010-09 → 2010-12
ended
|
GRS202 | — | |
| 88712-30420 |
Hose, Cooler Refrigerant Suction, NO.1
2010-12 → 2012-12
ended
|
GRS202 | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
