Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

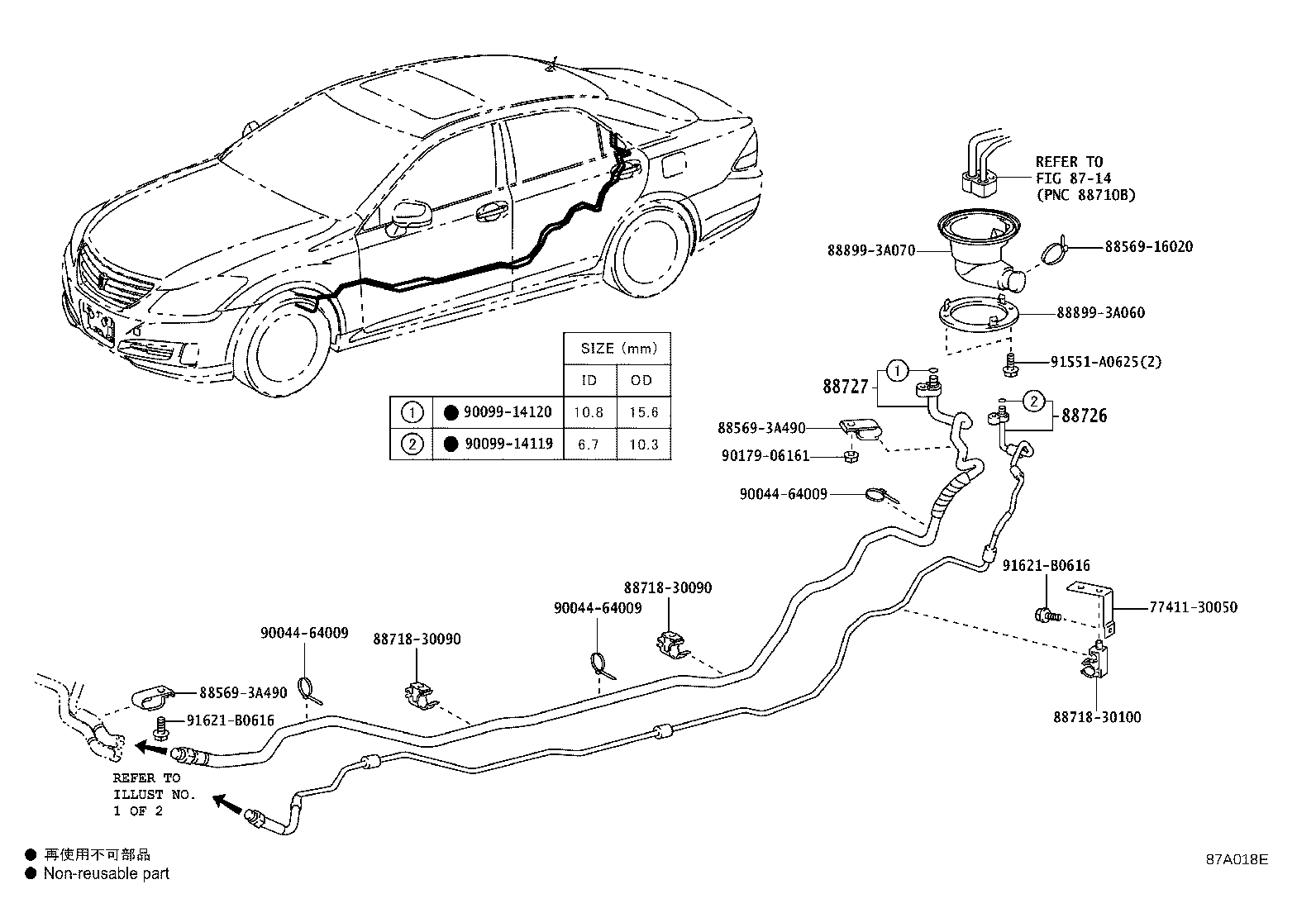

Exploded illustration 87A018E 88726 — TUBE, LIQUID, NO.2 (1 parts) 88727 — TUBE, SUCTION, NO.2 (1 parts) 8714 — not listed in this catalogue 9017906161 — not listed in this catalogue 91621B0616 — not listed in this catalogue 91621B0616 — not listed in this catalogue 91551A0625 — not listed in this catalogue 8871830100 — not listed in this catalogue 8871830090 — not listed in this catalogue 8871830090 — not listed in this catalogue 7741130050 — not listed in this catalogue 9004464009 — not listed in this catalogue 885693A490 — not listed in this catalogue 8856916020 — not listed in this catalogue 885693A490 — not listed in this catalogue 888993A060 — not listed in this catalogue 888993A070 — not listed in this catalogue 9004464009 — not listed in this catalogue 9004464009 — not listed in this catalogue 9009914120 — not listed in this catalogue 9009914119 — not listed in this catalogue
87A018E · 2 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
2 parts on this figure
Part number Description Fitment Price
88726 — Tube, Liquid, NO.2
88706-3A460 Tube, Liquid, NO.2
2010-09 → 2012-12 ended
GRS202 —
88727 — Tube, Suction, NO.2
88707-30810 Tube, Suction, NO.2
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
