Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

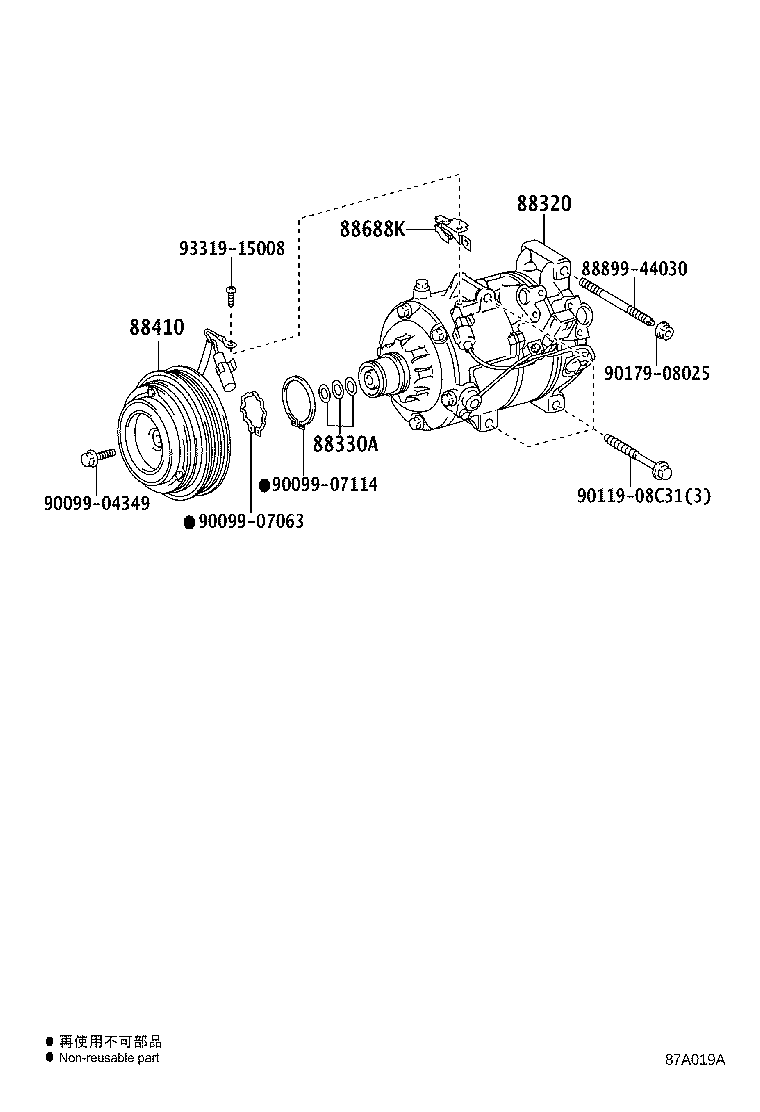

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88320 — Compressor Assy, Cooler | ||||
| 88320-3A300 |
Compressor Assy, Cooler
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-3A300 |
Clutch Assy, Magnet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 88688K — Bracket, Cooler Compressor | ||||
| 88688-33460 |
Bracket, Cooler Compressor
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
