Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

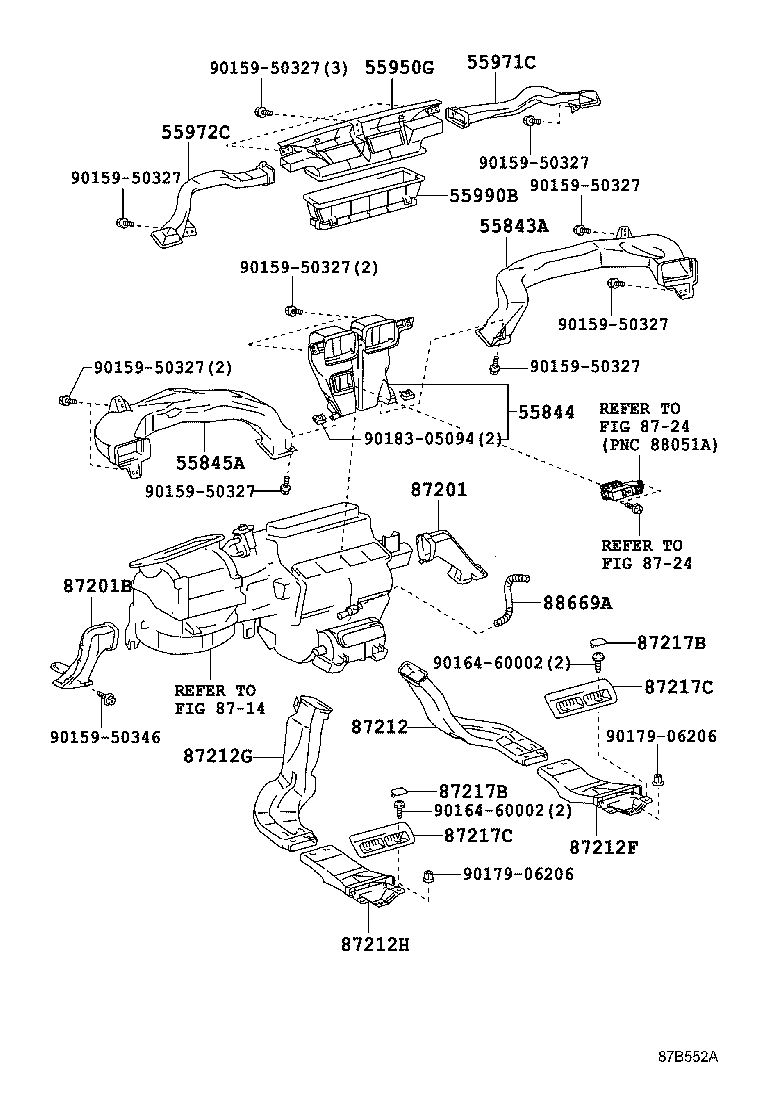

Exploded illustration 87B552A 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9018305094 — not listed in this catalogue 9016460002 — not listed in this catalogue 9016460002 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950346 — not listed in this catalogue 9017906206 — not listed in this catalogue 9017906206 — not listed in this catalogue 9015950327 — not listed in this catalogue 8714 — not listed in this catalogue 55971C — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (1 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (1 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (1 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (1 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (1 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (1 parts) 87217B — PLUG, AIR DUCT (2 parts) 87217B — PLUG, AIR DUCT (2 parts) 87212 — DUCT, AIR, REAR NO.1 (1 parts) 87212F — DUCT, AIR, REAR NO.2 (1 parts) 87212H — DUCT, AIR, REAR NO.4 (1 parts) 87212G — DUCT, AIR, REAR NO.3 (1 parts) 87217C — DUCT, AIR, REAR NO.5 (2 parts) 87217C — DUCT, AIR, REAR NO.5 (2 parts) 88669A — HOSE (FOR COOLER THERMISTOR) (1 parts) 55845A — DUCT, HEATER TO REGISTER, NO.3 (1 parts) 55972C — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (1 parts) 55950G — NOZZLE ASSY, DEFROSTER (1 parts) 8724 — not listed in this catalogue 8724 — not listed in this catalogue
87B552A · 18 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
55843A — Duct, Heater TO Register, NO.1
55843-30280 Duct, Heater TO Register, NO.1
2010-09 → 2012-12 ended
GRS202 —
55844 — Duct, Heater TO Register, NO.2
55844-30270 Duct, Heater TO Register, NO.2
2010-09 → 2012-12 ended
GRS202 —
55845A — Duct, Heater TO Register, NO.3
55845-30250 Duct, Heater TO Register, NO.3
2010-09 → 2012-12 ended
GRS202 —
55950G — Nozzle Assy, Defroster
55950-30190 Nozzle Assy, Defroster
2010-09 → 2012-12 ended
GRS202 —
55971C — Duct, Side Defroster Nozzle, NO.1
55971-30220 Duct, Side Defroster Nozzle, NO.1
2010-09 → 2012-12 ended
GRS202 —
55972C — Duct, Side Defroster Nozzle, NO.2
55972-30190 Duct, Side Defroster Nozzle, NO.2
2010-09 → 2012-12 ended
GRS202 —
55990B — Nozzle Assy, Defroster, Lower
55990-30090 Nozzle Assy, Defroster, Lower
2010-09 → 2012-12 ended
GRS202 —
87201 — Duct Sub-assy, Air, NO.1
87211-30340 Duct Sub-assy, Air, NO.1
2010-09 → 2012-12 ended
GRS202 —
87201B — Duct Sub-assy, Air, NO.2
87211-30590 Duct Sub-assy, Air, NO.2
2010-09 → 2012-12 ended
GRS202 —
87212 — Duct, Air, Rear NO.1
87212-30430 Duct, Air, Rear NO.1
2010-09 → 2012-12 ended
GRS202 —
87212F — Duct, Air, Rear NO.2
87205-30220 Duct, Air, Rear NO.2
2010-09 → 2012-12 ended
GRS202 —
87212G — Duct, Air, Rear NO.3
87213-30370 Duct, Air, Rear NO.3
2010-09 → 2012-12 ended
GRS202 —
87212H — Duct, Air, Rear NO.4
87206-30010 Duct, Air, Rear NO.4
2010-09 → 2012-12 ended
GRS202 —
87217B — Plug, Air Duct
90950-01693-A7 note Plug, Air Duct
2010-09 → 2012-12 ended
GRS202 —
90950-01693-B6 note Plug, Air Duct
2010-09 → 2012-12 ended
GRS202 —
87217C — Duct, Air, Rear NO.5
87217-30240-A2 note Duct, Air, Rear NO.5
2010-09 → 2012-12 ended
GRS202 —
87217-30240-B2 note Duct, Air, Rear NO.5
2010-09 → 2012-12 ended
GRS202 —
88669A — Hose (FOR COOLER THERMISTOR)
88669-30050 Hose (FOR COOLER THERMISTOR)
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
