Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

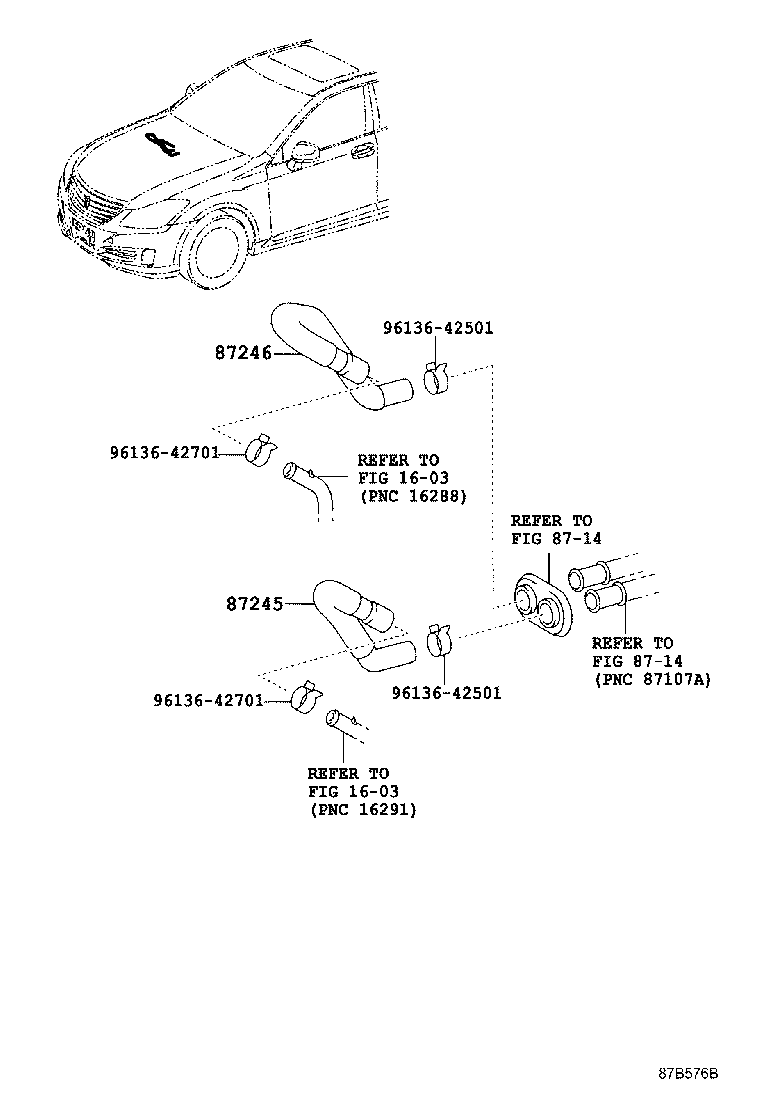

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-3F440 |
Hose, Heater Water, Inlet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87245-3F540 |
Hose, Heater Water, Outlet
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
