Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

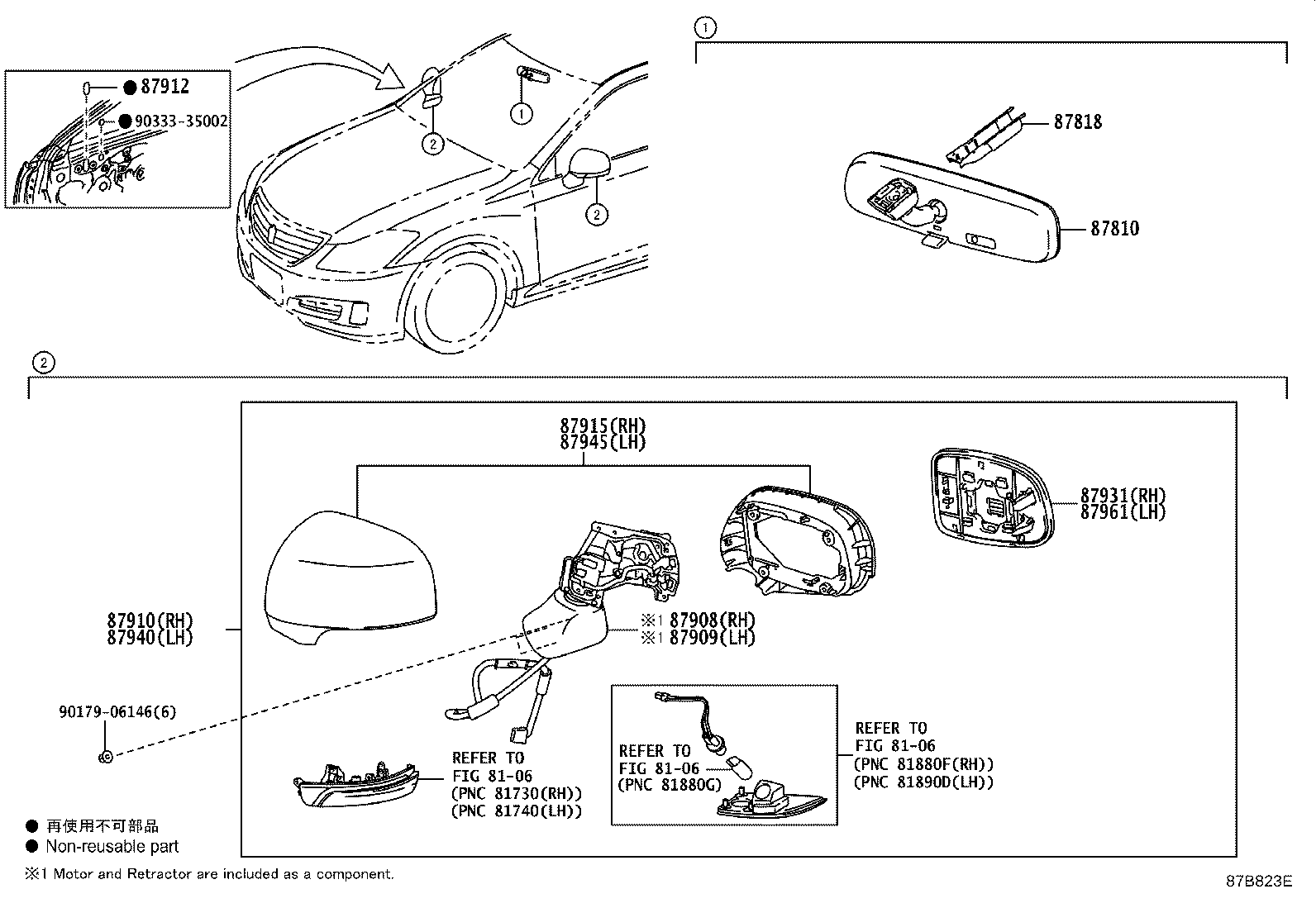

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0W260 |
Mirror Assy, Inner Rear View
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87818 — Cover, Inner RR View Mirror | ||||
| 87818-30030 |
Cover, Inner RR View Mirror
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908 — Actuator Assy, Outer Mirror, RH | ||||
| 87908-30A50-A0 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-B0 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-B1 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-C0 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-D0 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-F1 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87908-30A50-J0 note |
Actuator Assy, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909 — Actuator Assy, Outer Mirror, LH | ||||
| 87909-30B00-A0 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-B0 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-B1 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-C0 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-D0 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-F1 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87909-30B00-J0 note |
Actuator Assy, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-30A50-A1 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-B0 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-B1 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-C0 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-D0 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-F1 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87910-30A50-J0 note |
Mirror Assy, Outer Rear View, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87912 — Protector, Outer Mirror | ||||
| 87912-30030 |
Protector, Outer Mirror
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 8791A-30A50-A0 note |
Cover, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8791A-30A50-B0 note |
Cover, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8791A-30A50-C0 note |
Cover, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8791A-30A50-J0 note |
Cover, Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87931-30A50 |
Outer Mirror, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-30B00-A1 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-B0 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-B1 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-C0 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-D0 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-F1 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87940-30B00-J0 note |
Mirror Assy, Outer Rear View, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 8794A-30B00-A0 note |
Cover, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8794A-30B00-B0 note |
Cover, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8794A-30B00-C0 note |
Cover, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 8794A-30B00-J0 note |
Cover, Outer Mirror, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87961-30B00 |
Mirror Outer, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
