Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

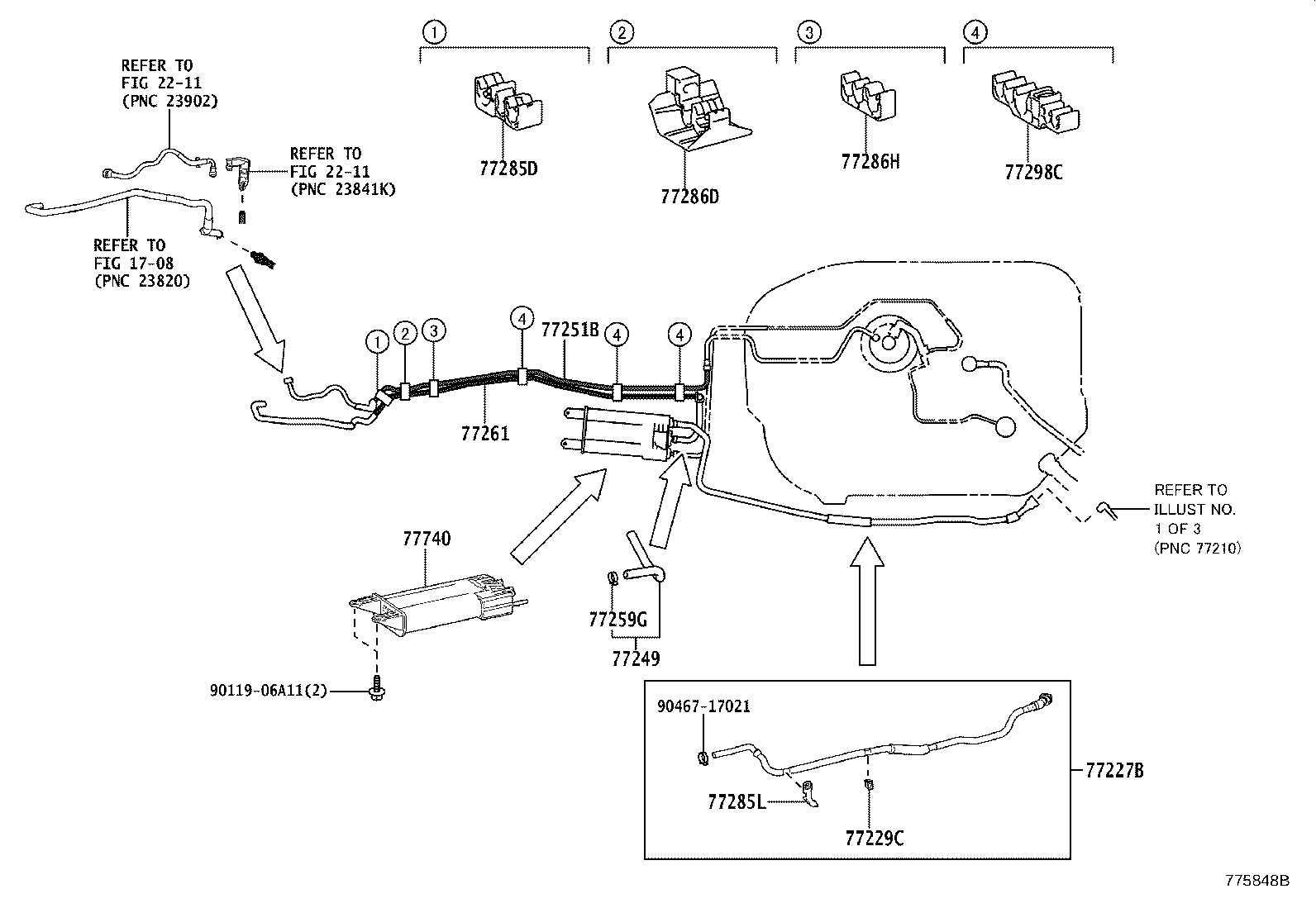

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77227B — Tube, Fuel Tank Breather, NO.7 | ||||
| 77227-30150 |
Tube, Fuel Tank Breather, NO.7
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77227-30150 |
Tube, Fuel Tank Breather, NO.7
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
| 77227-30160 |
Tube, Fuel Tank Breather, NO.7
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77227-30160 |
Tube, Fuel Tank Breather, NO.7
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77229C — Clamp, Breather Tube | ||||
| 77197-42010 |
Clamp, Breather Tube
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77197-42010 |
Clamp, Breather Tube
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77197-42010 |
Clamp, Breather Tube
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77249 — Hose, Fuel Emission | ||||
| 77249-42110 |
Hose, Fuel Emission
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77249-42110 |
Hose, Fuel Emission
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77249-42120 |
Hose, Fuel Emission
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77249-42120 |
Hose, Fuel Emission
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-30700 |
Tube, Fuel Main
2023-01 → —
|
TZSH35 | — | |
| 77251-42260 |
Tube, Fuel Main
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77251-42260 |
Tube, Fuel Main
2023-01 → —
|
AZSH35;AZSH30 LHD (B,G) | — | |
| 77251-42260 |
Tube, Fuel Main
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77259G — Clip, Fuel Hose | ||||
| 90467-17021 |
Clip, Fuel Hose
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 90467-17021 |
Clip, Fuel Hose
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
| 77261 — Tube Sub-assy, Fuel Emission | ||||
| 77261-42120 |
Tube Sub-assy, Fuel Emission
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77261-42120 |
Tube Sub-assy, Fuel Emission
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77261-42120 |
Tube Sub-assy, Fuel Emission
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-42170 |
Clamp, Fuel Tube, NO.1
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77285-42170 |
Clamp, Fuel Tube, NO.1
2023-01 → —
|
AZSH35;AZSH30 LHD (B,G) | — | |
| 77285-42170 |
Clamp, Fuel Tube, NO.1
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77285-78020 |
Clamp, Fuel Tube, NO.1
2023-01 → —
|
TZSH35 | — | |
| 77285L — Clamp, Fuel Tube, NO.1 | ||||
| 77285-42200 |
Clamp, Fuel Tube, NO.1
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77285-42200 |
Clamp, Fuel Tube, NO.1
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77285-42200 |
Clamp, Fuel Tube, NO.1
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
| 77285-42200 |
Clamp, Fuel Tube, NO.1
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77285-30400 |
Clamp, Fuel Tube, NO.2
2023-01 → —
|
TZSH35 | — | |
| 77285-42180 |
Clamp, Fuel Tube, NO.2
2023-01 → —
|
AZSH35;AZSH30 LHD (B,G) | — | |
| 77285-42180 |
Clamp, Fuel Tube, NO.2
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77285-42180 |
Clamp, Fuel Tube, NO.2
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77286H — Clamp, Fuel Tube, NO.3 | ||||
| 77285-42180 |
Clamp, Fuel Tube, NO.3
2023-01 → —
|
TZSH35 | — | |
| 77285-78050 |
Clamp, Fuel Tube, NO.3
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77285-78050 |
Clamp, Fuel Tube, NO.3
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77285-78050 |
Clamp, Fuel Tube, NO.3
2023-01 → —
|
AZSH35;AZSH30 LHD (B,G) | — | |
| 77298C — Clamp, Fuel Tube, NO.4 | ||||
| 77285-78050 |
Clamp, Fuel Tube, NO.4
2023-01 → —
|
TZSH35 | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-33240 |
Canister Assy, Charcoal
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77740-33240 |
Canister Assy, Charcoal
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77740-42120 |
Canister Assy, Charcoal
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77740-42120 |
Canister Assy, Charcoal
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
