Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

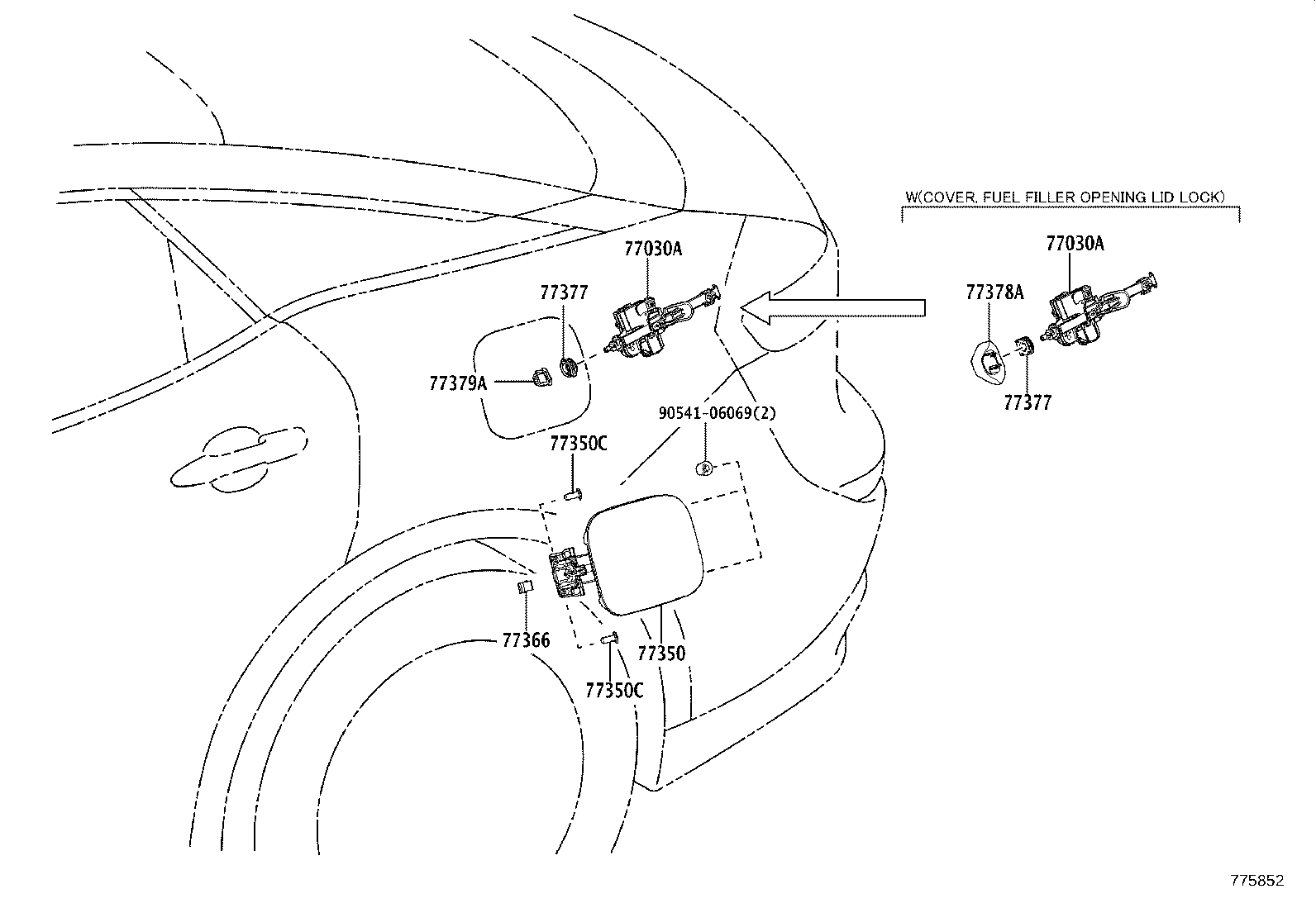

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77030A — Lock Assy, Fuel Lid W/Motor | ||||
| 77030-30210 |
Lock Assy, Fuel Lid W/Motor
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77030-30210 |
Lock Assy, Fuel Lid W/Motor
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77030-30220 |
Lock Assy, Fuel Lid W/Motor
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77030-30220 |
Lock Assy, Fuel Lid W/Motor
2023-01 → —
|
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-30450 |
Lid Assy, Fuel Filler Opening
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77350-30450 |
Lid Assy, Fuel Filler Opening
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77350-30450 |
Lid Assy, Fuel Filler Opening
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77350C — Rivet | ||||
| 90269-06017 |
Rivet
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 90269-06017 |
Rivet
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 90269-06017 |
Rivet
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-47040 |
Retainer, Fuel Filler Opening Lid Lock
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77377-47040 |
Retainer, Fuel Filler Opening Lid Lock
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77377-47040 |
Retainer, Fuel Filler Opening Lid Lock
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
| 77378A — Cover, Fuel Filler Opening Lid Lock | ||||
| 77378-30020 |
Cover, Fuel Filler Opening Lid Lock
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77378-30020 |
Cover, Fuel Filler Opening Lid Lock
2023-01 → —
|
AZSH30,TZSH35 (A,G) CHI | — | |
| 77379A — Spacer, Fuel Lid Open Lever | ||||
| 77379-12030 |
Spacer, Fuel Lid Open Lever
2023-01 → 2024-04
ended
|
AZSH30 M | — | |
| 77379-12030 |
Spacer, Fuel Lid Open Lever
2023-01 → 2025-03
ended
|
AZSH30 RHD | — | |
| 77379-12030 |
Spacer, Fuel Lid Open Lever
2023-01 → —
|
AZSH35,TZSH35;AZSH30 LHD (B,G) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
