Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 775855F 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 77227B — TUBE, FUEL TANK BREATHER, NO.7 (4 parts) 77226A — TUBE, FUEL TANK BREATHER, NO.6 (2 parts) 77229C — CLAMP, BREATHER TUBE (3 parts) 77285L — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285L — CLAMP, FUEL TUBE, NO.1 (4 parts) 9046717021 — not listed in this catalogue 77249 — HOSE, FUEL EMISSION (4 parts) 77251B — TUBE, FUEL MAIN (4 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (3 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (4 parts) 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77404A — HOSE SUB-ASSY, FUEL TANK VENT (2 parts) 77740R — PUMP SUB-ASSY, LEAK DETECTION (2 parts) 9011906A11 — not listed in this catalogue 77070A — VALVE ASSY, CLOSE TANK (2 parts) 9011906A73 — not listed in this catalogue

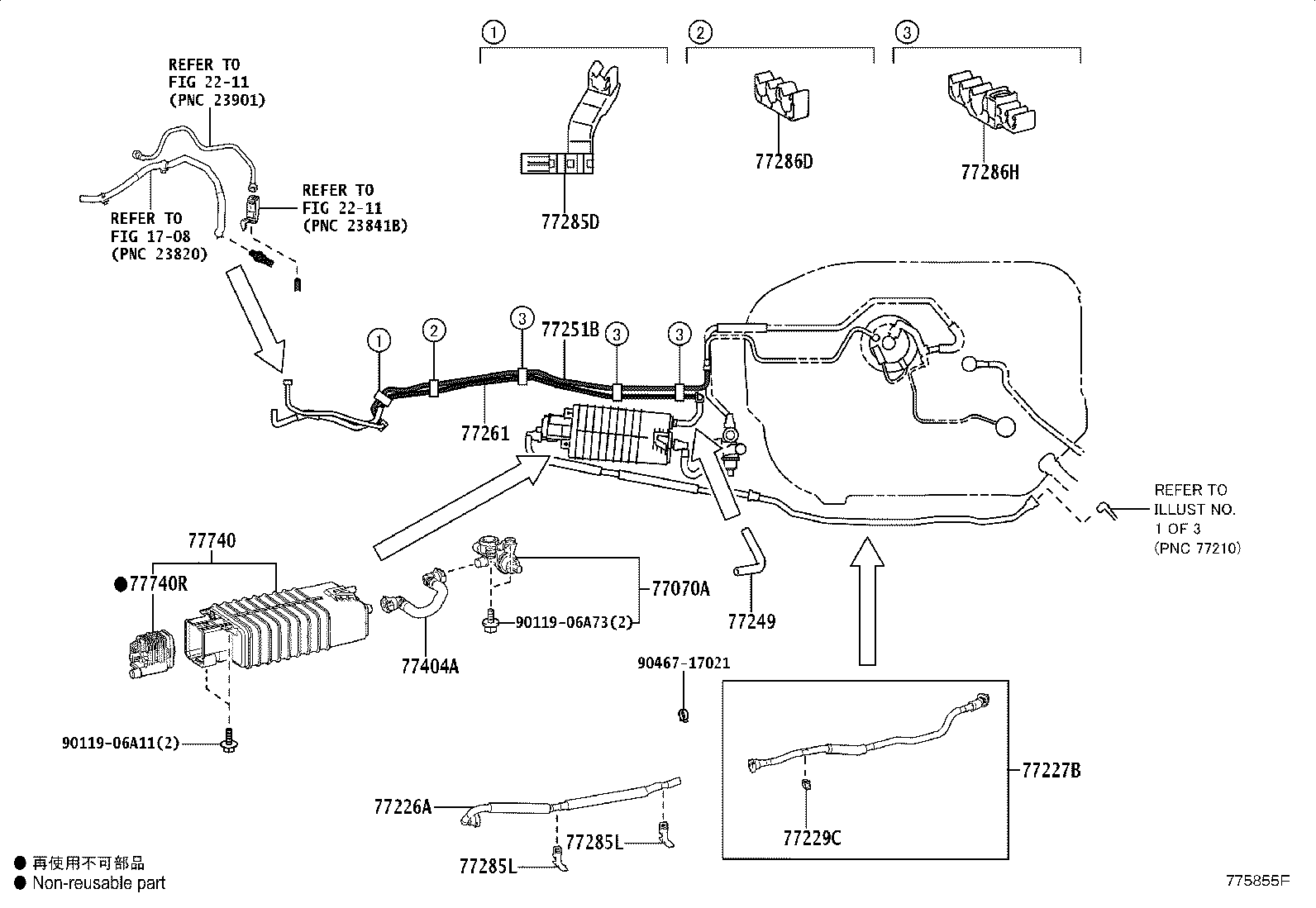

775855F · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
77070A — Valve Assy, Close Tank
77070-48011 Valve Assy, Close Tank
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77070-48011 Valve Assy, Close Tank
2023-01 → 2024-04 ended
AZSH30 M —
77226A — Tube, Fuel Tank Breather, NO.6
77227-42080 Tube, Fuel Tank Breather, NO.6
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77227-42080 Tube, Fuel Tank Breather, NO.6
2023-01 → 2024-04 ended
AZSH30 M —
77227B — Tube, Fuel Tank Breather, NO.7
77227-30150 Tube, Fuel Tank Breather, NO.7
2023-01 → 2025-03 ended
AZSH30 RHD —
77227-30150 Tube, Fuel Tank Breather, NO.7
2023-01 → —
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN —
77227-30160 Tube, Fuel Tank Breather, NO.7
2023-01 → 2024-04 ended
AZSH30 M —
77227-30160 Tube, Fuel Tank Breather, NO.7
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77229C — Clamp, Breather Tube
77197-42010 Clamp, Breather Tube
2023-01 → 2024-04 ended
AZSH30 M —
77197-42010 Clamp, Breather Tube
2023-01 → 2025-03 ended
AZSH30 RHD —
77197-42010 Clamp, Breather Tube
2023-01 → —
AZSH35,TZSH35;AZSH30 LHD (B,G) —
77249 — Hose, Fuel Emission
77249-42110 Hose, Fuel Emission
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77249-42110 Hose, Fuel Emission
2023-01 → 2024-04 ended
AZSH30 M —
77249-42120 Hose, Fuel Emission
2023-01 → 2025-03 ended
AZSH30 RHD —
77249-42120 Hose, Fuel Emission
2023-01 → —
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN —
77251B — Tube, Fuel Main
77251-30700 Tube, Fuel Main
2023-01 → —
TZSH35 —
77251-42260 Tube, Fuel Main
2023-01 → 2024-04 ended
AZSH30 M —
77251-42260 Tube, Fuel Main
2023-01 → 2025-03 ended
AZSH30 RHD —
77251-42260 Tube, Fuel Main
2023-01 → —
AZSH35;AZSH30 LHD (B,G) —
77261 — Tube Sub-assy, Fuel Emission
77261-42120 Tube Sub-assy, Fuel Emission
2023-01 → 2024-04 ended
AZSH30 M —
77261-42120 Tube Sub-assy, Fuel Emission
2023-01 → 2025-03 ended
AZSH30 RHD —
77261-42120 Tube Sub-assy, Fuel Emission
2023-01 → —
AZSH35,TZSH35;AZSH30 LHD (B,G) —
77285D — Clamp, Fuel Tube, NO.1
77285-42170 Clamp, Fuel Tube, NO.1
2023-01 → —
AZSH35;AZSH30 LHD (B,G) —
77285-42170 Clamp, Fuel Tube, NO.1
2023-01 → 2025-03 ended
AZSH30 RHD —
77285-42170 Clamp, Fuel Tube, NO.1
2023-01 → 2024-04 ended
AZSH30 M —
77285-78020 Clamp, Fuel Tube, NO.1
2023-01 → —
TZSH35 —
77285L — Clamp, Fuel Tube, NO.1
77285-42200 Clamp, Fuel Tube, NO.1
2023-01 → 2024-04 ended
AZSH30 M —
77285-42200 Clamp, Fuel Tube, NO.1
2023-01 → 2025-03 ended
AZSH30 RHD —
77285-42200 Clamp, Fuel Tube, NO.1
2023-01 → —
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN —
77285-42200 Clamp, Fuel Tube, NO.1
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77286D — Clamp, Fuel Tube, NO.2
77285-30400 Clamp, Fuel Tube, NO.2
2023-01 → —
TZSH35 —
77285-42180 Clamp, Fuel Tube, NO.2
2023-01 → 2024-04 ended
AZSH30 M —
77285-42180 Clamp, Fuel Tube, NO.2
2023-01 → 2025-03 ended
AZSH30 RHD —
77285-42180 Clamp, Fuel Tube, NO.2
2023-01 → —
AZSH35;AZSH30 LHD (B,G) —
77286H — Clamp, Fuel Tube, NO.3
77285-42180 Clamp, Fuel Tube, NO.3
2023-01 → —
TZSH35 —
77285-78050 Clamp, Fuel Tube, NO.3
2023-01 → 2025-03 ended
AZSH30 RHD —
77285-78050 Clamp, Fuel Tube, NO.3
2023-01 → —
AZSH35;AZSH30 LHD (B,G) —
77285-78050 Clamp, Fuel Tube, NO.3
2023-01 → 2024-04 ended
AZSH30 M —
77404A — Hose Sub-assy, Fuel Tank Vent
77404-42160 Hose Sub-assy, Fuel Tank Vent
2023-01 → 2024-04 ended
AZSH30 M —
77404-42160 Hose Sub-assy, Fuel Tank Vent
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77740 — Canister Assy, Charcoal
77740-33240 Canister Assy, Charcoal
2023-01 → 2024-04 ended
AZSH30 M —
77740-33240 Canister Assy, Charcoal
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
77740-42120 Canister Assy, Charcoal
2023-01 → 2025-03 ended
AZSH30 RHD —
77740-42120 Canister Assy, Charcoal
2023-01 → —
AZSH30 LHD B;AZSH35,TZSH35 GCC,GEN —
77740R — Pump Sub-assy, Leak Detection
90910-14008 Pump Sub-assy, Leak Detection
2023-01 → 2024-04 ended
AZSH30 M —
90910-14008 Pump Sub-assy, Leak Detection
2023-01 → —
AZSH30,TZSH35 (A,G) CHI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
