Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

7 part groups · 3 illustrations

Illustrations

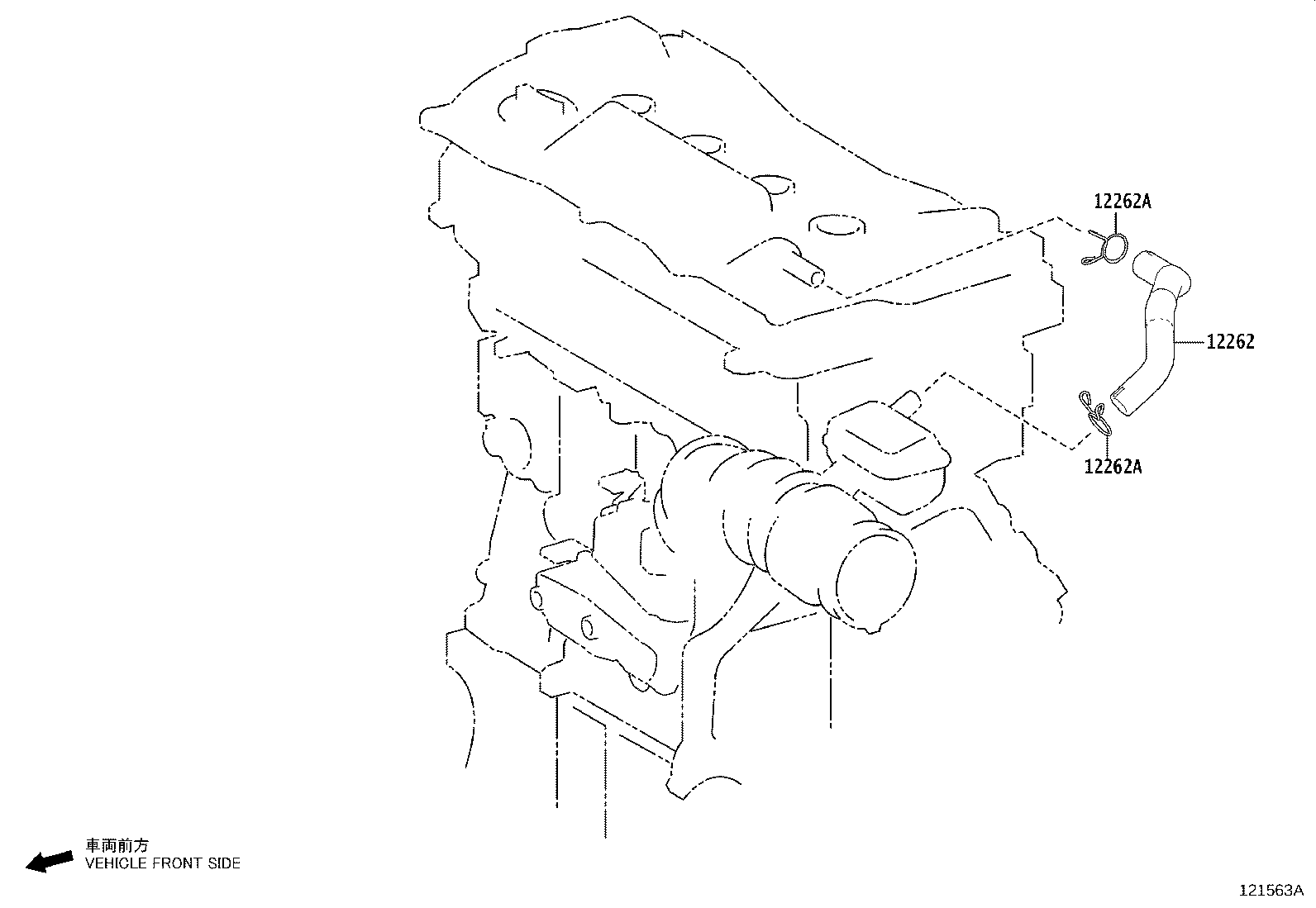

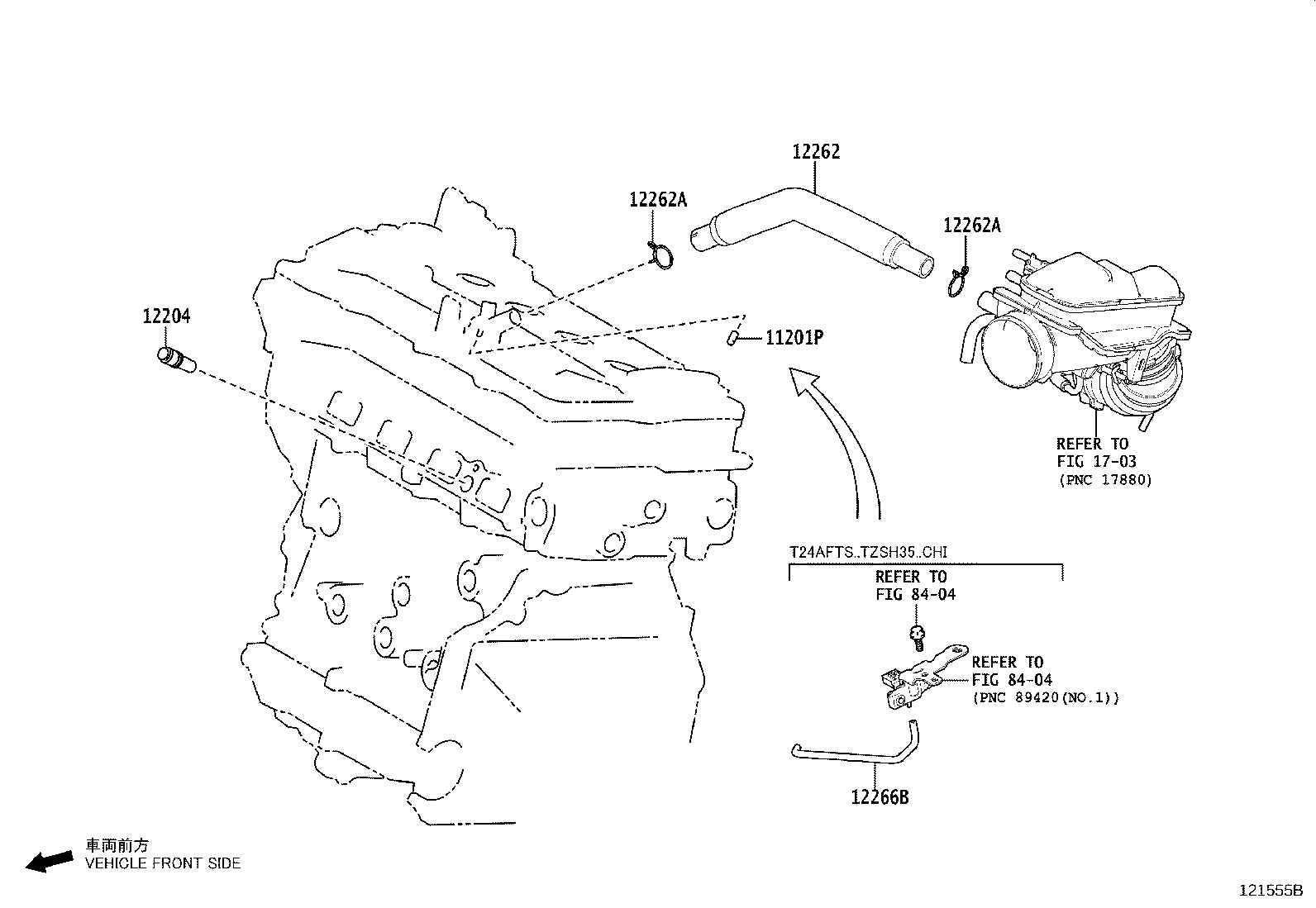

Figure 121562A 121562A 2023-01 → — Figure 121563A 121563A 2023-01 → — Figure 121555B 121555B 2023-01 → —

Part groups

PNCDescription
11201P Plug(FOR CYLINDER HEAD COVER)
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12266B Hose, Ventilation Pressure Sensor, NO.1
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
