Factory parts data · Europe

Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

3 part groups · 2 illustrations

Illustrations

Figure 153604A

153604A 2023-01 → —

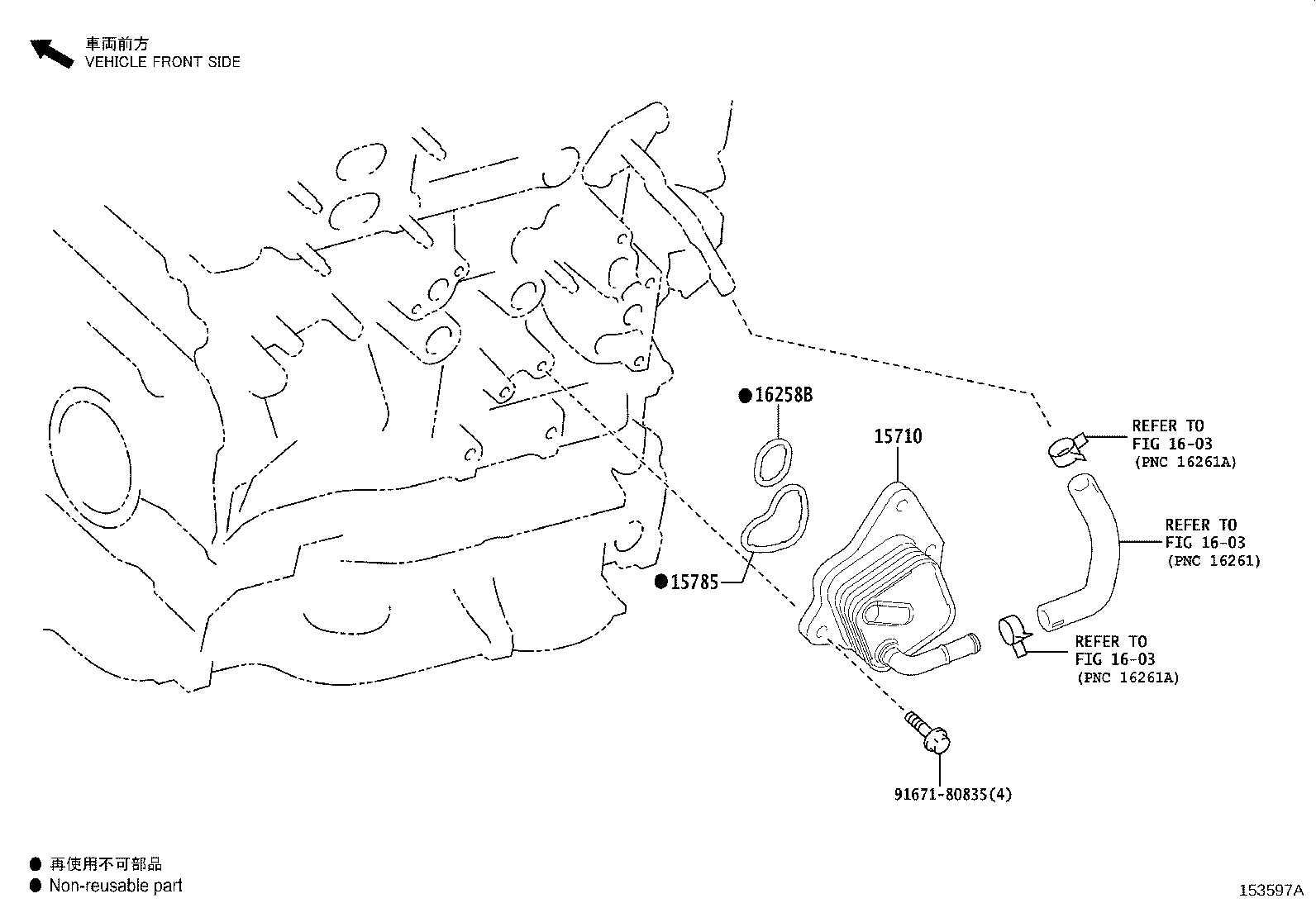

Figure 153597A

153597A 2023-01 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15785	Gasket, Oil Cooler
16258B	Gasket, Oil Cooler Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
