Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

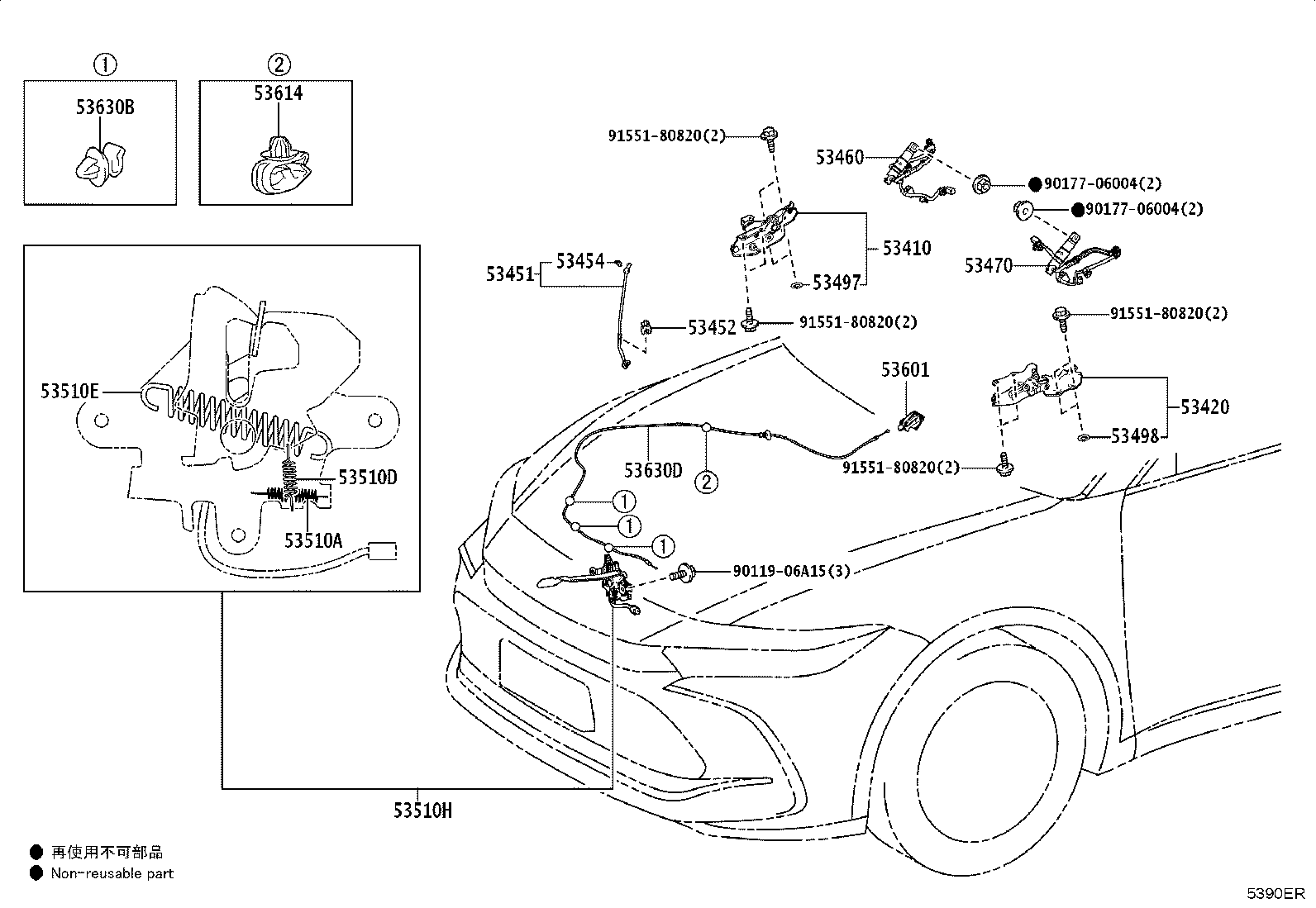

Hood Lock & Hinge
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53451 | Rod, Hood Support |
| 53452 | Holder, Hood Stay |
| 53454 | Clip, Hood Support Rod |
| 53460 | Lifter Assy, Pop UP Hood, RH |
| 53470 | Lifter Assy, Pop UP Hood, LH |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53498 | Pad, Hood Hinge, NO.2 |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53510H | Lock Assy, Hood, RH, W/Courtesy Lamp Switch |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53614 | Clamp, Hood Lock Control Cable |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
| 53630D | Set, Cable & Lever, Hoodlock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
