Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

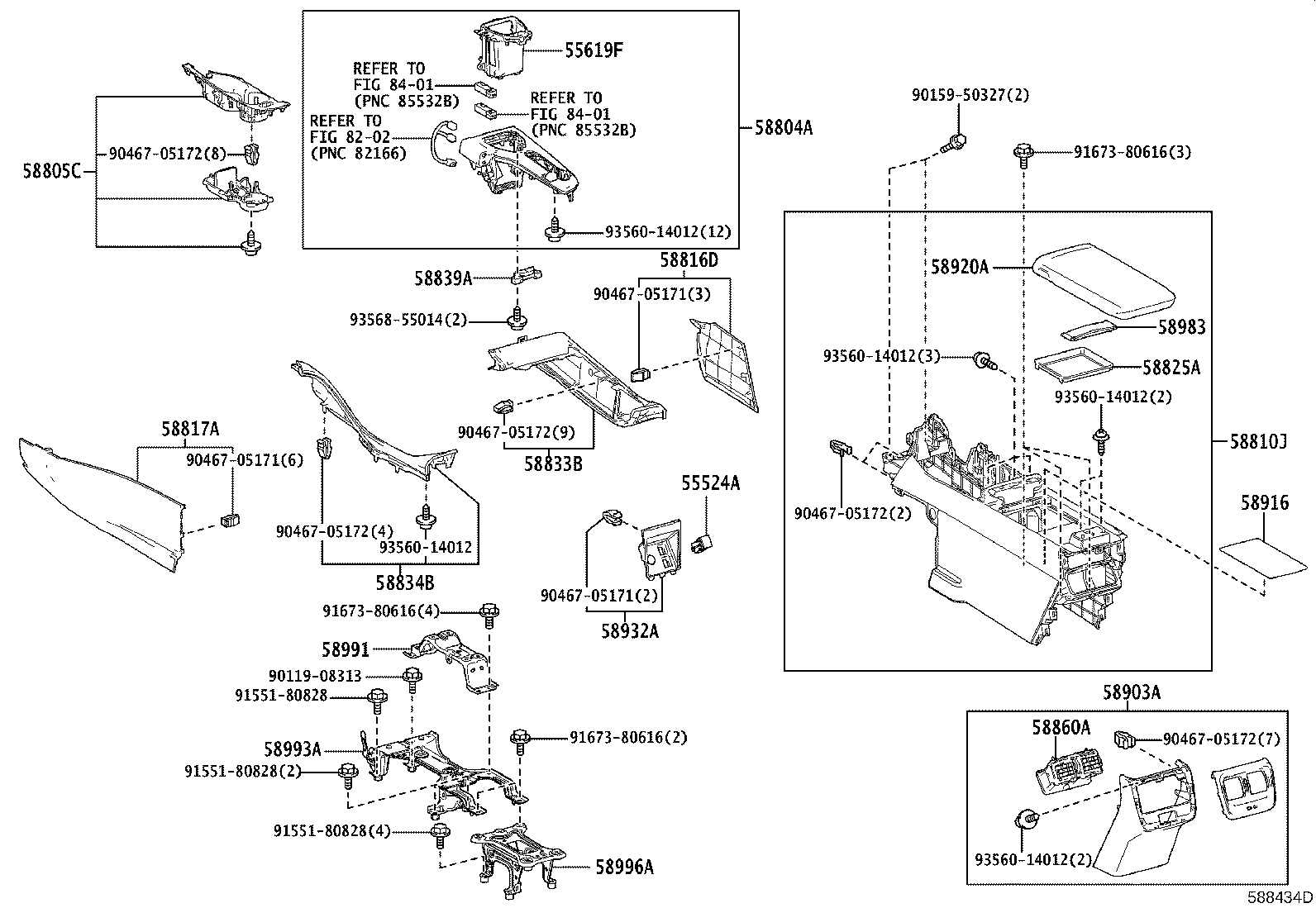

Figure 588433D 588433D 2023-01 → — Figure 588434D 588434D 2023-01 → —

Part groups

PNCDescription
55524A Cover, Switch Base Hole
55619F Holder, Console Box Cup, NO.2
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58810J Box Assy, Console
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58825A Pocket, Console Box
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58839A Cover, Console Box Hole
58860A Register Assy, Console Box
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58920A Armrest Assy, Rear Console
58932A Garnish, Rear Console Box
58983 Retainer, Upper Console
58991 Bracket, Console Box Mounting, Upper
58993A Bracket, Console Box Mounting, Lower
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
