Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

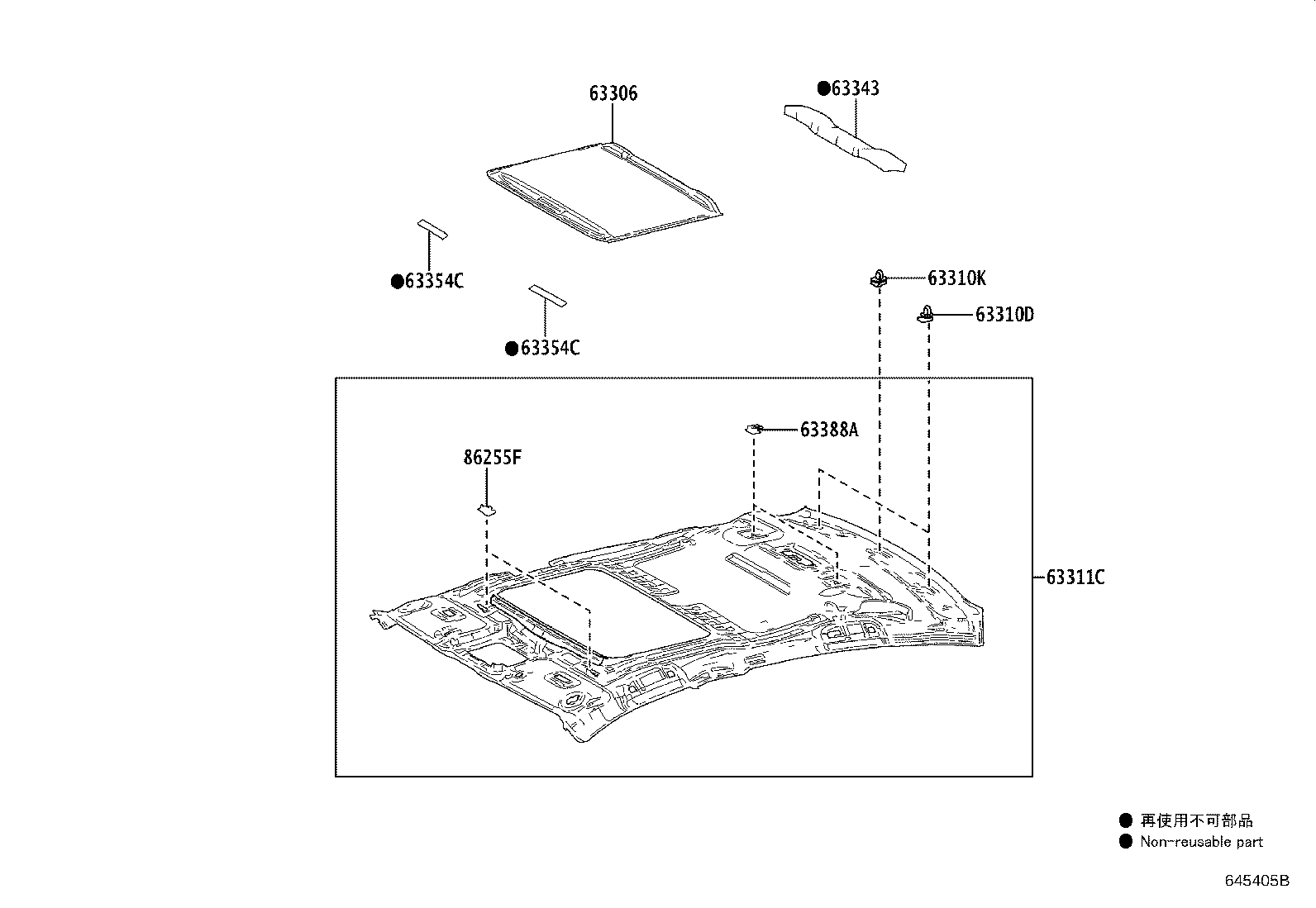

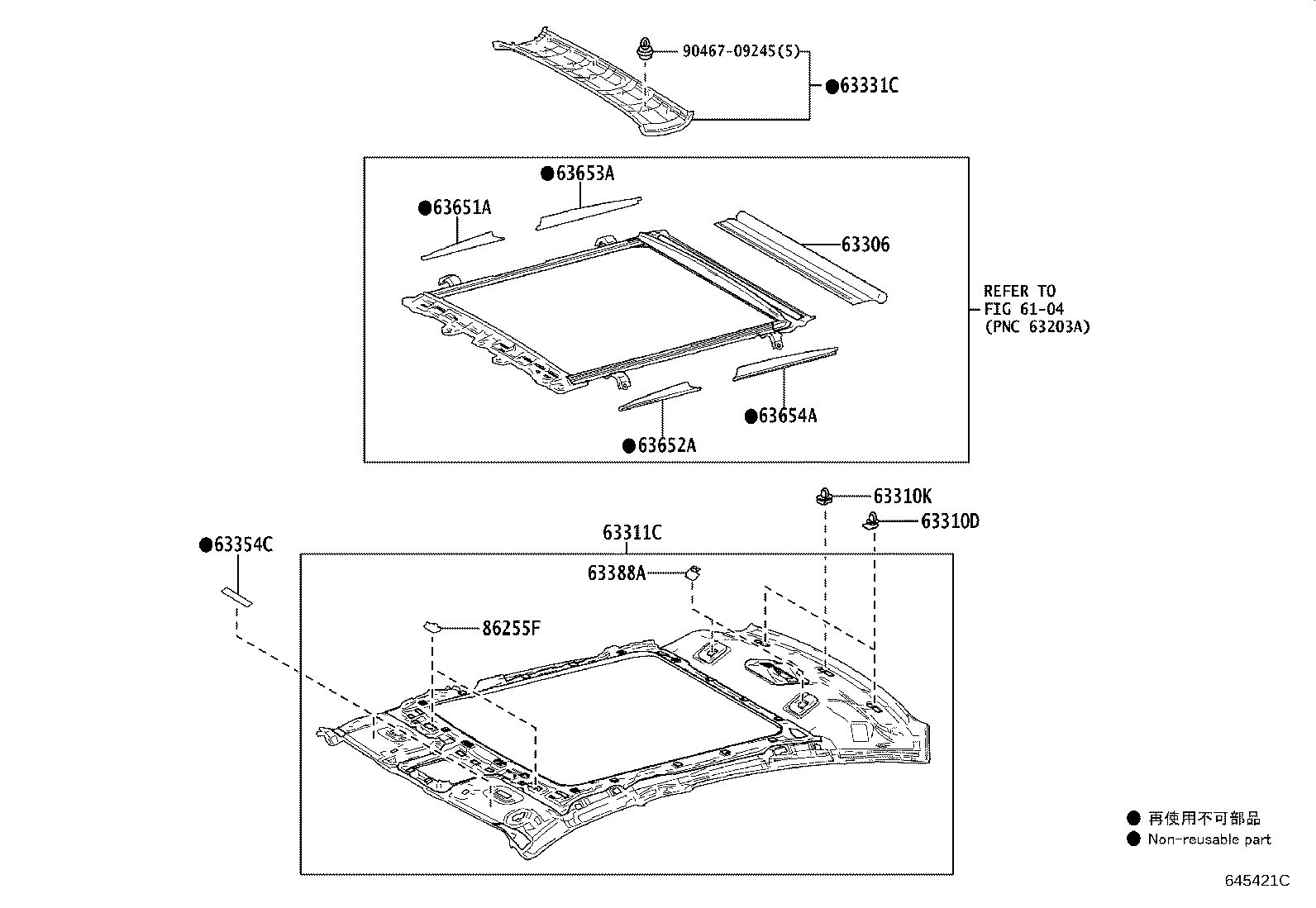

Roof Headlining & Silencer Pad
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63311C | Headlining, Roof |
| 63331C | Protector, Roof Center Reinforcement |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63354C | Pad, Roof Headlining Front Side |
| 63388A | Cover, Roof Headlining Holder |
| 63651A | Garnish, Sunshade, NO.1 RH |
| 63652A | Garnish, Sunshade, NO.1 LH |
| 63653A | Garnish, Sunshade, NO.2 RH |
| 63654A | Garnish, Sunshade, NO.2 LH |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
