Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

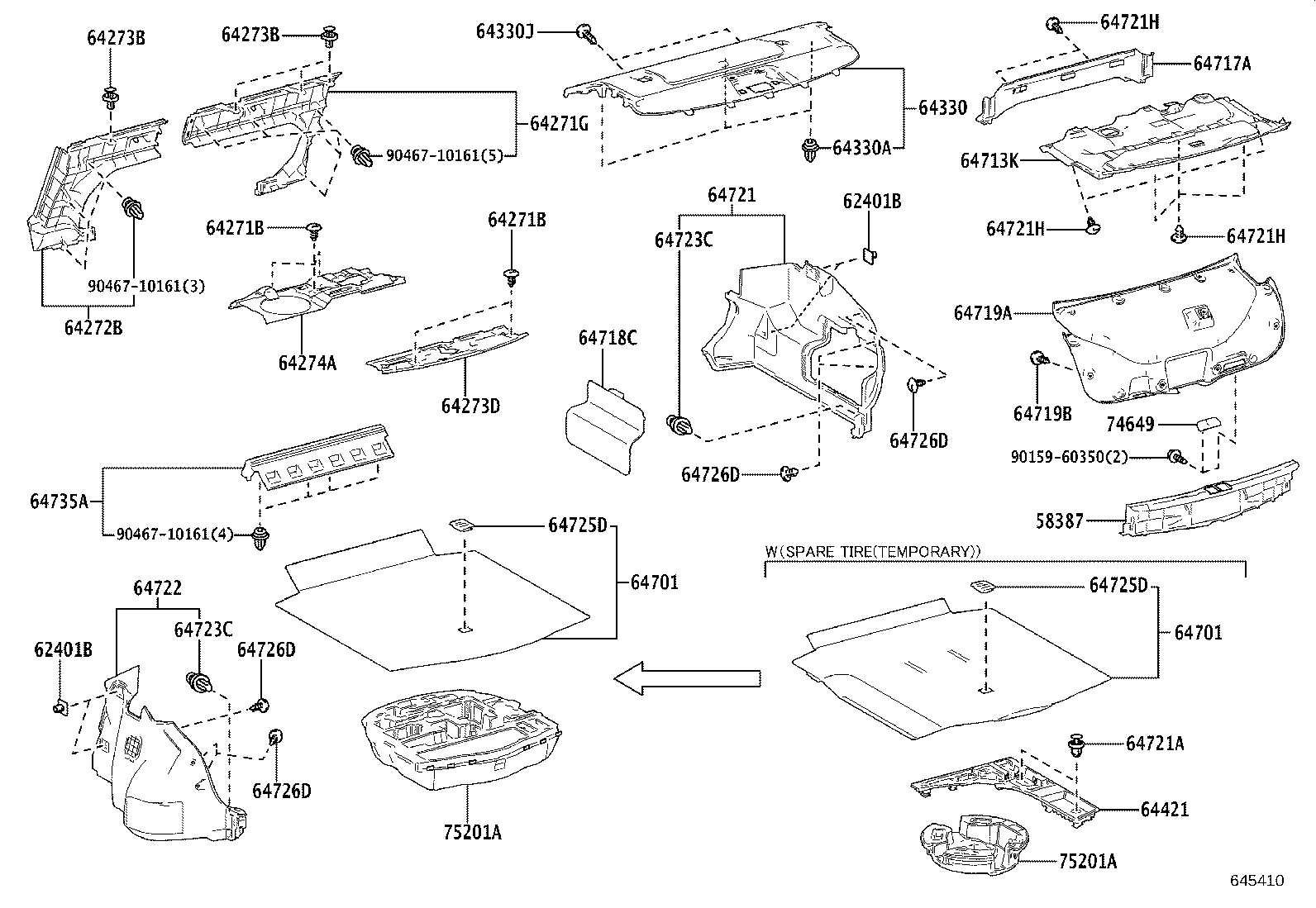

Package Tray Panel & Luggage Compartment Mat
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 62401B | Fastener, Hook |
| 64075B | Cover, Luggage Compartment Trim, Front |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64273B | Clip |
| 64273D | Pad, Room Partition, NO.1 |
| 64274A | Pad, Room Partition, NO.2 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64421 | Tray Sub-assy, Luggage Compartment |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64713K | Cover, Luggage Compartment Trim, Front Upper |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64723C | Clip, Luggage Compartment Trim Cover |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726D | Clip, Luggage Trim, Rear |
| 64735A | Garnish, Center Back Rail Inner |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
